Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-Q2K03WSWITCH TACTILE SPST-NO 0.02A 15V |
128,369 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
|
EVQ-Q2U03WSWITCH TACTILE SPST-NO 0.02A 15V |
3,071 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
EVQ-Q2P02WSWITCH TACTILE SPST-NO 0.02A 15V |
1,726 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
EVQ-Q2F03WSWITCH TACTILE SPST-NO 0.02A 15V |
58,077 |
1+：$0.22400 10+：$0.19840 25+：$0.18528 100+：$0.16608 250+：$0.15395 500+：$0.14530 1000+：$0.13716 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
EVQ-P7A01PSWITCH TACTILE SPST-NO 0.05A 12V |
33,474 | - |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|

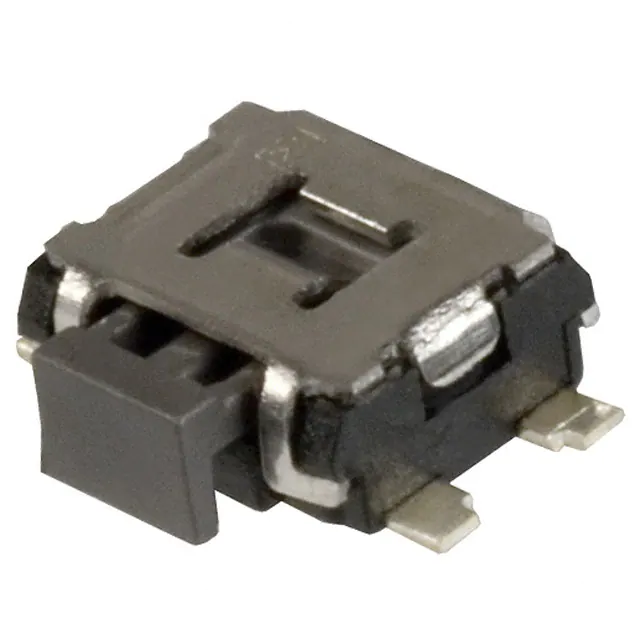

EVQ-P7C01PSWITCH TACTILE SPST-NO 0.05A 12V |
42,288 | - |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
|
EVQ-P7L01PSWITCH TACTILE SPST-NO 0.05A 12V |
14,961 | - |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|

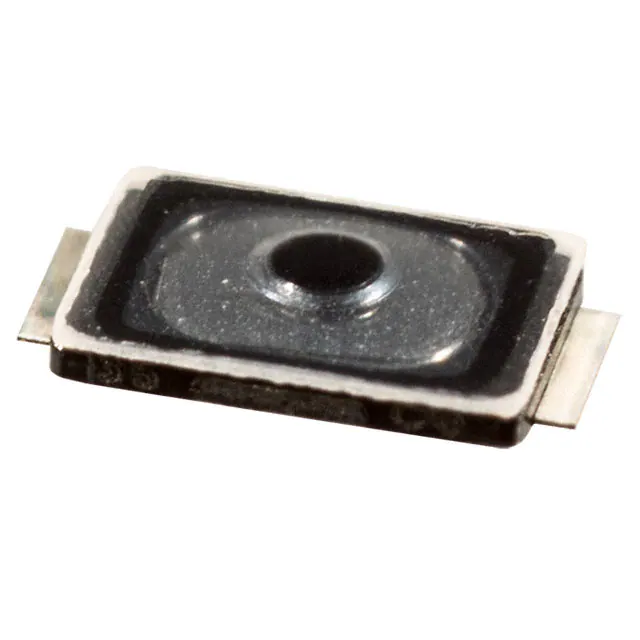

EVP-AWCD4ASWITCH TACTILE SPST-NO 0.02A 15V |
5,521 | - |
|
Datasheet | EVPAW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

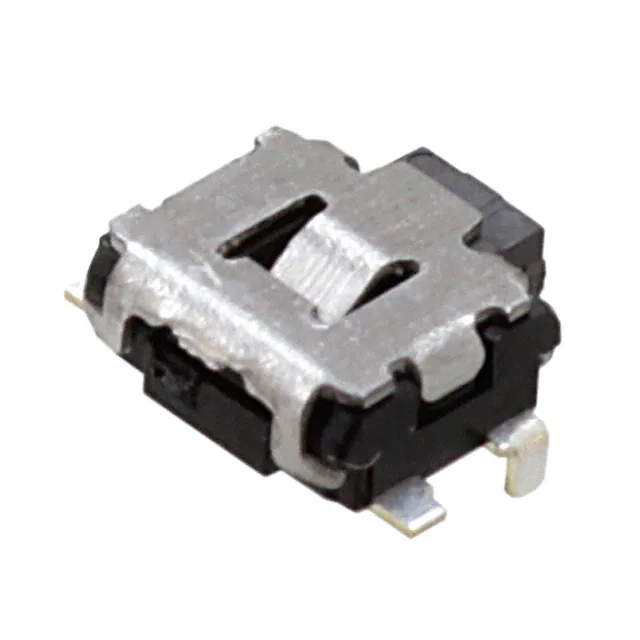

EVQ-P3401PSWITCH TACTILE SPST-NO 0.05A 12V |
4,946 | - |
|
Datasheet | EVQP3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|
EVQ-PUC02KSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
1+：$0.44800 10+：$0.38560 25+：$0.35936 100+：$0.32112 250+：$0.29744 500+：$0.28078 1000+：$0.26537 |
|
Datasheet | EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
