Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-P1D05MSWITCH TACTILE SPST-NO 0.05A 12V |
18,605 | - |
|
Datasheet | EVQP1 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
EVQ-9P105MSWITCH TACTILE SPST-NO 0.05A 12V |
1,357 | - |
|
Datasheet | EVQ9P | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
EVQ-P2202MSWITCH TACTILE SPST-NO 0.02A 15V |
4,813 | - |
|
Datasheet | EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

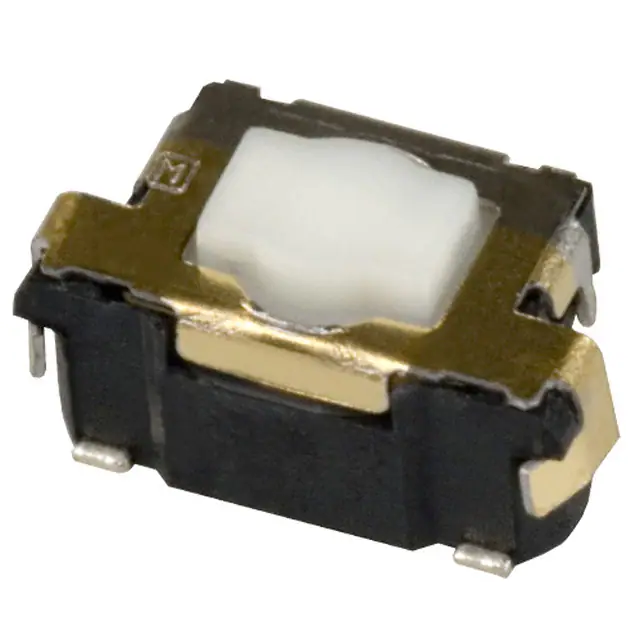

EVQ-P42B3MSWITCH TACTILE SPST-NO 0.02A 15V |
13,757 | - |
|
Datasheet | EVQP4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P1K05MSWITCH TACTILE SPST-NO 0.05A 12V |
4,915 | - |
|
Datasheet | EVQP1 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
EVP-BK4A1B000SWITCH TACTILE SPST-NO 0.02A 15V |
17,707 | - |
|
Datasheet | EVPBK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.63mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.00mm | Non-Illuminated | - | - | 250gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-P2B02BSWITCH TACTILE SPST-NO 0.02A 15V |
9,349 | - |
|
Datasheet | EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 250gf | - | Grounding Pin | -40°C ~ 85°C |
|
EVP-AA402WSWITCH TACTILE SPST-NO 0.02A 15V |
24,877 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
EVP-AAN02QSWITCH TACTILE SPST-NO 0.02A 15V |
16,237 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
|
EVP-AA802QSWITCH TACTILE SPST-NO 0.02A 15V |
9,441 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
