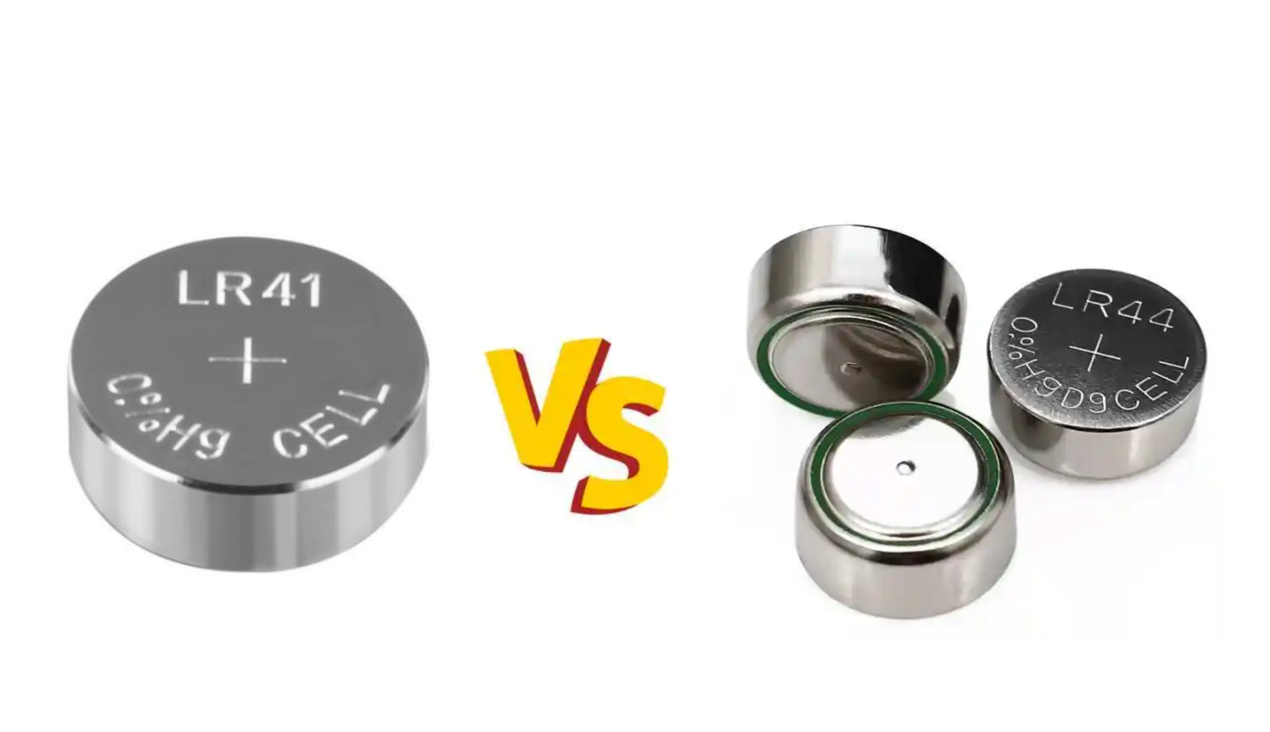

LR41 vs LR44 Battery: Size, Difference, IEC Codes and Replacement Guide

LR41 vs LR44: what is the main difference? Both are 1.5V alkaline button cell batteries, but they are very different in physical size and capacity. An LR41 battery is about 7.9 mm in diameter and 3.6 mm high, while an LR44 battery is about 11.6 mm in diameter and 5.4 mm high. The LR44 is therefore wider, thicker and normally has much more capacity. In most devices, LR41 and LR44 batteries are not interchangeable.
LR41 与 LR44：它们之间有什么主要区别呢?这两种电池都属于 1.5 伏的碱性纽扣电池,但在尺寸和容量上有着显著差异.LR41 电池的直径约为 7.9 毫米,高度为 3.6 毫米;而 LR44 电池的直径约为 11.6 毫米,高度为 5.4 毫米.因此,LR44 电池的尺寸更大,容量也更高.在大多数设备中,LR41 和 LR44 电池是无法相互替代的.

This size difference is the most important fact to understand. Many people see that both cells are rated at 1.5 volts and assume that one can replace the other. In practice, voltage is only one part of battery compatibility. A replacement button cell must also fit the battery compartment, make correct contact with the terminals, supply enough current and use a suitable chemistry.
这种尺寸上的差异是最需要了解的重要因素.很多人看到两种电池的电压都是 1.5 伏,就以为它们可以互相替代.但实际上,电压只是电池兼容性的其中一个方面.要替代某款纽扣电池,它还必须能够适配电池仓\与电池端子正确连接\能够提供足够的电流,并且使用合适的化学成分.

If you are comparing LR41 vs LR44 because an old battery has an unclear number printed on it, this guide explains the size, IEC naming system, common equivalents, capacity difference and the best way to choose the correct replacement.
如果你因为旧电池上的型号标识不清而想要比较 LR41 和 LR44 电池的差异,本指南会详细介绍这两种电池的尺寸\IEC 命名规则\常见替代品\容量差异,以及如何选择合适的替代品.

LR41 vs LR44 Quick Comparison
LR41 与 LR44 的快速对比

Specification  规格参数/技术指标	LR41 Battery  LR41 电池	LR44 Battery  LR44 电池
Battery Type  电池类型	Alkaline button cell  碱性纽扣电池	Alkaline button cell  碱性纽扣电池
Nominal Voltage  标称电压	1.5V	1.5V
Diameter  直径	About 7.9 mm  约 7.9 百万	About 11.6 mm  约 11.6 百万
Height  高度	About 3.6 mm  约 3.6 百万	About 5.4 mm  约 5.4 百万
Typical Capacity  典型容量	About 25-45 mAh depending on manufacturer and test conditions 根据制造商和测试条件的不同,其容量大约在 25 到 45 毫安时之间.	About 110-150 mAh depending on manufacturer and test conditions 根据制造商和测试条件的不同,其容量大约在 110 到 150 毫安时之间.
Common IEC Size Code  常见的 IEC 尺寸代码	LR736 / LR41	LR1154 / LR44
Common Alternative Names  常见的别名/替代名称	AG3, LR736, 192  AG3,LR736,192	AG13, A76, LR1154, L1154, 157 AG13\A76\LR1154\L1154\157
Rechargeable  可充电的	No  不	No  不
Interchangeable With Each Other? 可以互相替换吗?	No, normally not interchangeable because the sizes are different. 不,通常无法互换,因为它们的尺寸不同.

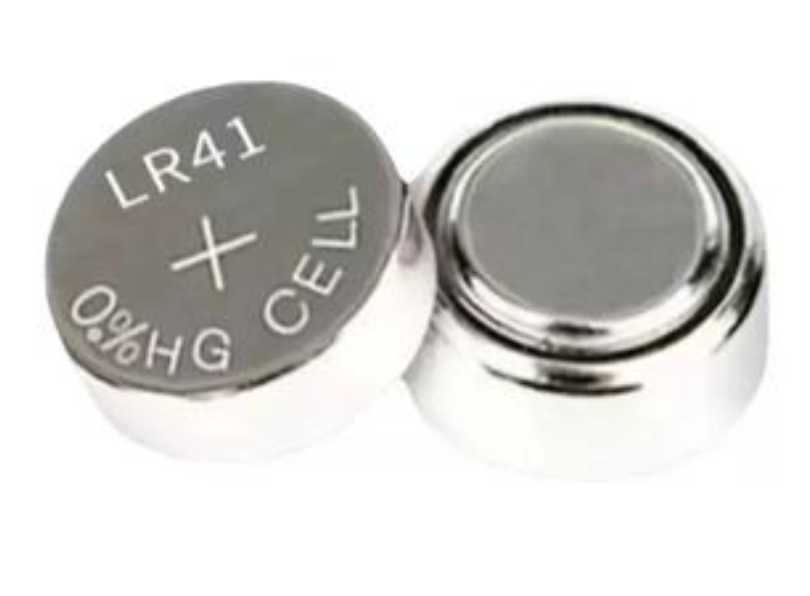

What Is an LR41 Battery?
什么是 LR41 电池?

The LR41 battery is a small alkaline button cell commonly used in compact electronic products. It provides a nominal voltage of 1.5V and measures approximately 7.9 mm in diameter and 3.6 mm in height.
LR41 电池是一种小型碱性纽扣电池,常用于各种小型电子产品中.其标称电压为 1.5 伏特,直径约为 7.9 毫米,高度约为 3.6 毫米.

Because of its small size, the LR41 is useful in products where internal space is limited. You may find this battery in small digital thermometers, miniature LED lights, calculators, toys, laser pointers, small electronic instruments and other low-power devices.

One useful way to remember the LR41 is to think of it as the smaller cell in the LR41 vs LR44 comparison. If a battery compartment is designed closely around an LR41, an LR44 will normally be far too large to fit.

Depending on the manufacturer and market, an LR41-size battery may also appear under names such as AG3, LR736 or 192. Some silver oxide cells have the same physical dimensions, but matching physical size does not automatically mean every chemistry or model number should be treated as identical.

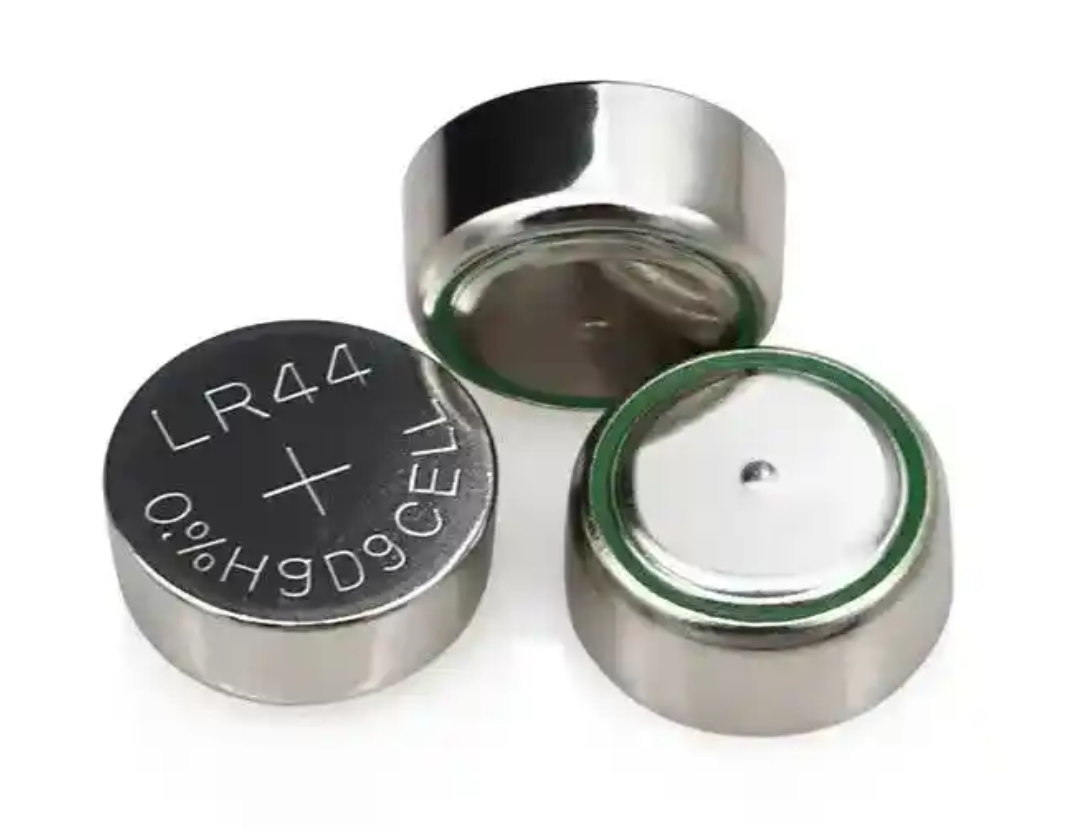

What Is an LR44 Battery?

The LR44 battery is also a 1.5V alkaline button cell, but it is substantially larger than the LR41. Its dimensions are approximately 11.6 mm in diameter and 5.4 mm in height.

The extra physical volume allows the LR44 to store more energy. This is why it is widely used in calculators, toys, small measuring devices, electronic games, medical electronics and other products that need more runtime or slightly higher power than very small button cells can provide.

LR44 is one of the most common button battery sizes, so it has accumulated many commercial names. Depending on the brand, package or region, you may see codes such as AG13, A76, LR1154, L1154, V13GA or 157.

This creates an important buying lesson: do not judge a button battery only by the largest text on its package. Different manufacturers often use different naming systems for a battery that has the same general size and chemistry.

LR41 vs LR44 Size: The Most Important Difference

The LR41 vs LR44 size difference is large enough that the two batteries should not be considered direct physical replacements.

An LR41 has a diameter of about 7.9 mm, compared with approximately 11.6 mm for an LR44. That makes the LR44 about 3.7 mm wider. The LR44 is also about 5.4 mm high, compared with only 3.6 mm for the LR41.

For a tiny electronic device, a difference of several millimeters is significant. Battery holders are normally designed to place the positive and negative faces of the button cell directly against fixed metal contacts. If the battery is too wide, it simply will not enter the holder. If it is too thin or too small, the contacts may not touch correctly.

This is why comparing button batteries only by voltage is a bad replacement strategy.

A practical rule is simple: voltage tells you how the battery powers the circuit; size tells you whether the battery can physically work in the device. You normally need both to match.

LR41 vs LR44 Difference in Capacity

Another major difference between LR41 and LR44 is capacity.

Battery capacity is commonly expressed in milliamp-hours, or mAh. In simple terms, a battery with greater usable capacity can usually power the same low-drain device for longer, although actual operating time depends on load, temperature, cutoff voltage, battery quality and the behavior of the device.

An alkaline LR41 may offer roughly 25 to 45 mAh under typical manufacturer test conditions. An LR44 often provides roughly 110 to 150 mAh depending on the manufacturer and discharge conditions.

This does not mean that an LR44 is automatically a better battery for every device. Its higher capacity comes largely from its much larger physical size. A product made for an LR41 cannot suddenly gain longer battery life by installing an LR44 if the LR44 does not fit.

The better way to choose is to use the cell size specified by the equipment manufacturer and then compare quality, chemistry and capacity among batteries designed for that size.

LR41 vs LR44 Voltage: Are They Both 1.5V?

Yes. Standard alkaline LR41 and LR44 button cells both have a nominal voltage of 1.5 volts.

This shared voltage is one reason people often ask whether they can replace an LR41 with an LR44. Electrically, the nominal voltage appears similar. Mechanically, however, they are very different cells.

Voltage alone does not determine battery compatibility.

When checking a replacement battery, look at:

• Nominal voltage
• Battery chemistry
• Diameter
• Height or thickness
• Terminal arrangement
• Required current
• Device manufacturer's recommended battery code

A battery can have exactly the same voltage as the original cell and still be unsuitable because of its size or discharge characteristics.

What Do the IEC Codes Mean?

Battery labels become much easier to understand when you know that there are several naming systems in the market. The IEC, or International Electrotechnical Commission, provides standardized battery designations that help identify battery chemistry and physical format.

For these alkaline button cells, you may encounter:

• LR41 / LR736 for the smaller 7.9 mm × 3.6 mm class
• LR44 / LR1154 for the larger 11.6 mm × 5.4 mm class

The naming can look confusing because product packaging may use an IEC designation, an older commercial number or a manufacturer's own cross-reference number.

That is why an LR44 may be sold as A76 or AG13, while an LR41 may appear as AG3 or 192.

The safest method is not to memorize every code. Instead, use a four-step check:

1. Identify the original battery marking.
2. Confirm the chemistry and nominal voltage.
3. Confirm diameter and height.
4. Check the device manual or manufacturer's replacement list.

This approach is more reliable than trusting a single equivalent number from an unknown online listing.

Can You Replace LR41 With LR44?

No, an LR44 is normally not a direct replacement for an LR41.

The biggest reason is physical size. LR44 is considerably wider and thicker than LR41. A compartment designed for a 7.9 mm LR41 button cell generally cannot accept an 11.6 mm LR44.

Even if someone finds a way to connect an LR44 externally, modifying a product's battery system is usually not a sensible replacement method. The battery holder, case pressure, insulation and contact design are all parts of the original electrical design.

If your product calls for an LR41, look for an LR41-size equivalent rather than moving to an LR44.

Can You Replace LR44 With LR41?

Again, normally no.

An LR41 is smaller in both diameter and height. If placed into a holder designed for an LR44, it may move around, fail to touch the terminals or lose contact when the product is moved.

There is also a capacity difference. Even in an unusual situation where an electrical connection could be made, the much smaller LR41 would normally provide less runtime than an LR44 under comparable conditions.

Using foil, metal pieces or other improvised spacers to make a smaller button cell fit a larger holder is not recommended. These methods can create unreliable connections or accidental short circuits.

LR41 Battery Equivalents

If you need to replace an LR41 battery, several labels may appear when shopping. Common references associated with this size include:

• LR41
• LR736
• AG3
• 192

You may also find silver oxide batteries with the same general physical dimensions. Silver oxide cells normally have a nominal voltage around 1.55V and can offer a more stable discharge voltage than alkaline chemistry.

However, do not assume every battery with a similar size is an automatic replacement. For sensitive equipment, medical products or precision instruments, use the chemistry and battery type recommended by the manufacturer.

LR44 Battery Equivalents

The LR44 has an especially large number of alternative commercial labels. Common names include:

• LR44
• LR1154
• L1154
• AG13
• A76
• V13GA
• G13A
• 157

You may also encounter references to 357, 303 or SR44 batteries when researching LR44 replacements. These numbers are often associated with silver oxide cells of a similar physical size rather than standard alkaline LR44 chemistry.

This is an important distinction.

An alkaline LR44 and a silver oxide SR44-size battery may physically fit the same compartment, but their discharge behavior and nominal chemistry are different. In simple toys or calculators this may not always matter greatly, while precision equipment can be more sensitive to voltage stability.

Therefore, the best replacement is not simply the battery that fits. It is the battery that matches the device's electrical and mechanical requirements.

LR41 vs LR44 Button Cell: Why Larger Does Not Always Mean Better

Consumers often compare batteries as if larger capacity always means better performance. With button cells, that idea needs more context.

An LR44 is larger and normally carries much more energy than an LR41, but products are designed around a specific battery envelope. Engineers choose a battery based on available space, expected current, target operating time, product thickness, cost and circuit requirements.

For example, a very small thermometer may use an LR41 because compact size matters more than maximum battery capacity. A larger toy or measuring device may have enough internal space for an LR44 and benefit from longer operation.

So when comparing LR41 vs LR44 battery performance, the useful question is not simply, "Which battery is stronger?"

The better question is, "Which cell was the device designed to use?"

That one question prevents many replacement mistakes.

LR41 vs LR44 for Toys

Both battery types are commonly associated with toys, but you should still use the exact size required by the product.

Small novelty toys, mini LED products and compact electronic accessories may use LR41 cells. Larger toys, digital games and devices with more internal space may use LR44 batteries.

Some products use multiple button batteries connected together. For example, a toy may contain three small cells stacked in one compartment. Never assume that three LR41 batteries can be replaced by a single LR44 just because the LR44 is larger.

When multiple batteries are connected in series, their voltages add together. Three 1.5V cells may provide about 4.5V nominally to the circuit. Replacing that stack with one 1.5V battery changes the supply voltage completely.

What Does 3XL5 Mean on a Battery Search?

Some people searching for button cell replacements encounter terms such as 3xl5 battery, 3xL5 or similar mixed letters and numbers. It is important not to automatically treat "3XL5" as an IEC equivalent for LR41 or LR44.

3XL5 is not a standard LR41 or LR44 IEC designation. In online listings, printed manuals or poorly scanned labels, combinations of letters, quantities and battery references can easily be misread.

For example, a label beginning with "3x" may simply mean that the device requires three batteries, rather than describing the model number of one battery.

If you find "3xl5" while trying to identify a battery, do not order a replacement based only on that text. Remove the original button cell if it can be done safely and check the code stamped directly onto the battery. Then confirm its diameter, thickness and voltage.

This is especially important when comparing LR41 vs LR44 because both batteries are 1.5V, yet their physical sizes are clearly different.

How to Identify an Unknown Button Battery

If the old label is damaged or difficult to read, you can narrow down the correct battery using a simple process.

1. Read every marking on the old cell

Look for combinations such as LR41, AG3, LR44, AG13, A76 or LR1154. A manufacturer logo may also help identify the numbering system.

2. Measure the diameter

This instantly separates many button cell families. An LR41 is around 7.9 mm wide, while an LR44 is around 11.6 mm wide.

3. Measure the height

LR41 is approximately 3.6 mm high. LR44 is approximately 5.4 mm high. Thickness matters because many battery holders use spring pressure to maintain electrical contact.

4. Check the voltage

Both LR41 and LR44 alkaline cells are nominally 1.5V. If your device requires a 3V lithium coin cell, neither of these is the correct replacement.

5. Check the device documentation

The manual, battery compartment cover or manufacturer's website often gives the safest replacement information.

Button Cell vs Coin Cell: Are They the Same?

The terms button cell and coin cell are often used loosely, but they can describe somewhat different shapes.

Button cells are usually small, round batteries with a compact button-like shape. LR41 and LR44 are typical examples.

Coin cells are often wider and flatter, resembling a coin. Common lithium batteries such as CR2032 and CR2025 are good examples.

This distinction matters when shopping online. Searching simply for "1.5V coin battery" can return many products that are completely different from an LR41 or LR44.

Whenever possible, search using the exact model number and dimensions.

LR41 vs LR44 vs Lithium Coin Batteries

LR41 and LR44 should not be confused with common lithium coin cells such as CR2032.

A typical LR button cell has a nominal voltage of 1.5V. Many CR lithium coin cells provide about 3V. Installing a 3V lithium battery into equipment designed for a 1.5V button cell can provide the wrong voltage to the circuit and may damage the device.

The battery shape may look similar at a quick glance, but similar appearance does not mean electrical compatibility.

This illustrates another useful rule for battery replacement:

Never identify a battery only by shape.

Check the code, chemistry, voltage and size together.

Why Battery Capacity Numbers Can Be Different Online

When researching LR41 vs LR44 capacity, you may notice that different websites list different mAh values. This does not always mean one source is wrong.

Battery capacity is affected by how it is measured. Important test conditions include:

• Discharge current
• Electrical load
• Cutoff voltage
• Operating temperature
• Duty cycle
• Battery chemistry
• Manufacturer design

A battery tested under a very light load may deliver a different measured capacity from the same battery used under a heavier load.

For this reason, capacity should be treated as a useful comparison value rather than an exact promise of runtime in every device.

The physical conclusion remains clear: LR44 is a much larger cell and normally provides substantially more capacity than LR41.

Which Lasts Longer: LR41 or LR44?

Under similar low-drain conditions, an LR44 will generally last longer because it contains more active material and has greater capacity.

However, this comparison is only meaningful when discussing electrical performance in theory. In real products, the two cells normally serve different battery compartments.

If your device is designed for LR41, its useful runtime should be compared among different LR41 products or compatible same-size chemistries. If the device requires LR44, compare LR44 batteries against other appropriate LR44-size options.

Choosing the wrong physical size just to obtain more capacity is not a practical battery upgrade.

How to Choose Between LR41 and LR44

If you are holding both batteries and trying to decide which one your device needs, use this checklist:

• Choose LR41 when the product specifies LR41, LR736, AG3 or another verified equivalent for the 7.9 × 3.6 mm size.
• Choose LR44 when the product specifies LR44, LR1154, A76, AG13 or another verified equivalent for the 11.6 × 5.4 mm size.
• Do not choose based only on the 1.5V rating.
• Do not force a larger cell into a small holder.
• Do not use loose metal spacers to make a small battery fit a larger holder.
• When chemistry matters, follow the equipment manufacturer's instructions.

LR41 vs LR44: A Simple Buying Decision

For most buyers, the entire comparison can be reduced to three questions.

First: What number does the device require?
If the manual says LR41, buy an LR41 or a verified equivalent. If it says LR44, buy an LR44 or a verified equivalent.

Second: Does the replacement have the same size?
For LR41, expect about 7.9 × 3.6 mm. For LR44, expect about 11.6 × 5.4 mm.

Third: Does the chemistry and voltage match?
A standard LR41 or LR44 is an alkaline 1.5V primary battery. Do not confuse it with a rechargeable cell or a 3V lithium coin battery.

If all three answers match, you are much more likely to have the correct battery.

Common Mistakes When Comparing LR41 and LR44

Mistake 1: Looking only at voltage

Both batteries say 1.5V, but they are not the same size. Voltage alone cannot determine interchangeability.

Mistake 2: Assuming all button cells are universal

There are many button battery diameters and thicknesses. Even a difference of one millimeter may matter in a compact holder.

Mistake 3: Trusting every online equivalent chart

Some charts combine alkaline and silver oxide references without clearly explaining the chemistry difference. Always check more than the product name.

Mistake 4: Confusing quantity markings with model numbers

A marking such as "3x" may mean three cells are required. It does not necessarily belong to the battery model number. This is one reason unusual searches such as "3xl5 battery" should be verified carefully.

Mistake 5: Buying by appearance

Button batteries can look almost identical in photographs because product images are not shown at actual size. Always check the dimensions listed in millimeters.

LR41 vs LR44 FAQ

Are LR41 and LR44 the same battery?

No. LR41 and LR44 are both 1.5V alkaline button cells, but their physical sizes and typical capacities are different. LR41 is approximately 7.9 × 3.6 mm, while LR44 is approximately 11.6 × 5.4 mm.

What is the main difference between LR41 and LR44?

The main difference is size. LR44 is both wider and thicker than LR41. LR44 also normally has considerably more capacity because it is a larger battery.

Can LR44 replace LR41?

Normally no. An LR44 has a diameter of about 11.6 mm compared with about 7.9 mm for LR41, so it generally cannot fit into an LR41 battery compartment.

Can LR41 replace LR44?

Normally no. LR41 is much smaller and may not make proper contact inside a holder designed for LR44. It also provides less capacity.

Is LR41 the same as AG3?

AG3 is a common commercial reference associated with the LR41-size alkaline button cell. However, when replacing any battery, confirm the dimensions, voltage and chemistry rather than relying only on a cross-reference name.

Is LR44 the same as AG13?

AG13 is widely used as an alternative commercial designation for an LR44-size alkaline button battery. LR44 may also be sold under labels such as A76 and LR1154.

What is the IEC code for LR41?

The LR41 alkaline button cell is associated with the IEC size designation LR736, representing the approximately 7.9 mm diameter and 3.6 mm height class.

What is the IEC code for LR44?

LR44 is associated with the IEC designation LR1154 and has dimensions of approximately 11.6 mm in diameter and 5.4 mm in height.

What is the LR41 battery size?

An LR41 battery measures approximately 7.9 mm in diameter and 3.6 mm in height.

What is the LR44 battery size?

An LR44 battery measures approximately 11.6 mm in diameter and 5.4 mm in height.

Which battery is bigger, LR41 or LR44?

LR44 is significantly bigger. It is wider, thicker and heavier, and it normally provides more capacity than LR41.

Which battery lasts longer, LR41 or LR44?

LR44 generally has more capacity and can provide longer runtime under similar electrical conditions. However, it should not be used as an LR41 replacement unless a device was specifically designed to accept it.

Are LR41 and LR44 rechargeable?

No. Standard LR41 and LR44 alkaline button batteries are primary, non-rechargeable cells. They should not be placed in a battery charger.

Is a 3XL5 battery the same as LR41 or LR44?

There is no standard LR41 or LR44 IEC designation called 3XL5. If you see "3xl5" or "3xL5" in a product listing or manual, verify whether "3x" indicates a quantity or whether the text has been copied incorrectly. Identify the original battery by its actual marking, voltage and dimensions before buying a replacement.

Can I use a 3V coin cell instead of LR41 or LR44?

Not simply because it fits. LR41 and LR44 alkaline cells are nominally 1.5V, while many lithium coin cells are 3V. Doubling the supply voltage can be unsuitable or harmful to equipment designed for a 1.5V cell.

Why does my LR44 have another number printed on the package?

Battery manufacturers and standards organizations use different naming systems. Codes such as A76, AG13, L1154 and LR1154 are commonly seen when shopping for LR44-size batteries. Always verify the specifications instead of relying on one name alone.

Final Answer: LR41 vs LR44

The LR41 vs LR44 comparison is simple once you stop looking at voltage alone.

Both are 1.5V alkaline button cell batteries, but they belong to different physical size classes. The LR41 is approximately 7.9 mm × 3.6 mm, while the LR44 is approximately 11.6 mm × 5.4 mm. LR44 is therefore much larger and usually provides substantially higher capacity.

The IEC-related designations also help separate them: LR41 is commonly associated with LR736, while LR44 is associated with LR1154.

For replacement purposes, the most important conclusion is that LR41 and LR44 should not normally be used in place of each other. Their equal nominal voltage does not make them physically interchangeable.

If you are unsure which battery you need, check the code printed on the original cell, measure its diameter and height, confirm the voltage and compare those details with the device manufacturer's specification. This simple process is more reliable than choosing a battery based on appearance, voltage or an unfamiliar online equivalent name.

In short: LR41 is the smaller button cell; LR44 is the larger, higher-capacity button cell. Match the size first, then confirm voltage and chemistry.
