Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2GP331EACAP ALUM 330UF 20% 400V SNAP TH |
2,538 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 330 µF | ±20% | 400 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2GP391DACAP ALUM 390UF 20% 400V SNAP TH |
1,681 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 390 µF | ±20% | 400 V | 468mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2GP391EACAP ALUM 390UF 20% 400V SNAP TH |
3,793 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 390 µF | ±20% | 400 V | 468mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2GP561EACAP ALUM 560UF 20% 400V SNAP TH |
4,920 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 560 µF | ±20% | 400 V | 326mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.766 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2AA222CACAP ALUM 2200UF 20% 100V SNAP TH |
4,222 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2AA222EACAP ALUM 2200UF 20% 100V SNAP TH |
1,349 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECE-A0GKK220CAP ALUM 22UF 20% 4V RADIAL TH |
1,081 | - |
|
Datasheet | KK | Bulk | Obsolete | 22 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | - | - | 0.039" (1.00mm) | 0.118" Dia (3.00mm) | 0.197" (5.00mm) | - | Through Hole | |
|
ECE-A1CKK100CAP ALUM 10UF 20% 16V RADIAL TH |
4,360 | - |
|
Datasheet | KK | Bulk | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | 0.039" (1.00mm) | 0.118" Dia (3.00mm) | 0.197" (5.00mm) | - | Through Hole | |
|
ECE-A1EKK2R2CAP ALUM 2.2UF 20% 25V RADIAL TH |
1,555 | - |
|
Datasheet | KK | Bulk | Obsolete | 2.2 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | 0.039" (1.00mm) | 0.118" Dia (3.00mm) | 0.197" (5.00mm) | - | Through Hole | |
|

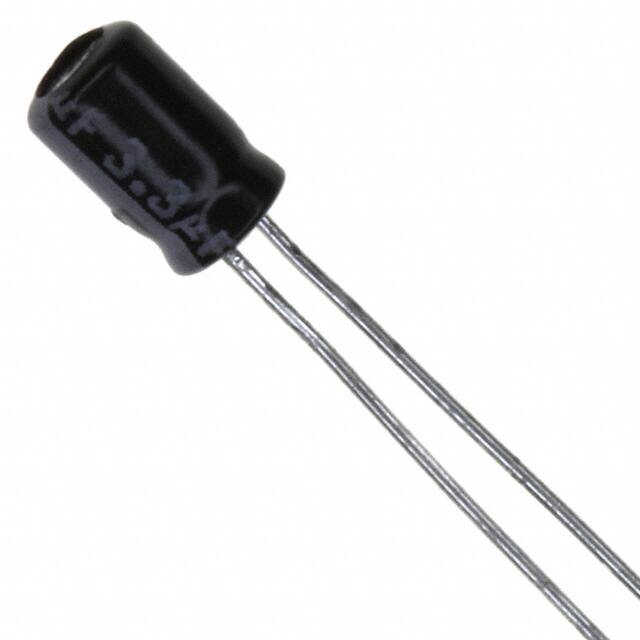

ECE-A1EKK3R3CAP ALUM 3.3UF 20% 25V RADIAL TH |
1,698 | - |
|
Datasheet | KK | Bulk | Obsolete | 3.3 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | - | - | 0.039" (1.00mm) | 0.118" Dia (3.00mm) | 0.197" (5.00mm) | - | Through Hole |
