Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-A1HKS010CAP ALUM 1UF 20% 50V RADIAL TH |
1,799 | - |
|
Datasheet | KS | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole | |
|

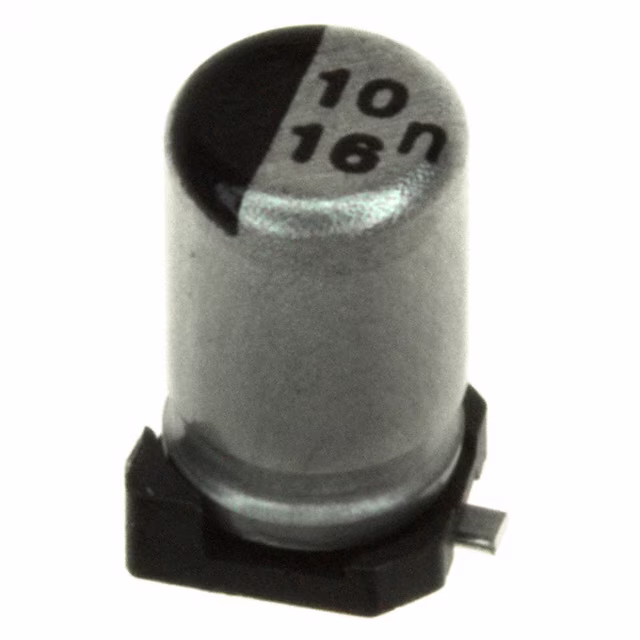

ECE-V1CS100SRCAP ALUM 10UF 20% 16V SMD |
1,977 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1ES4R7SRCAP ALUM 4.7UF 20% 25V SMD |
3,489 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|

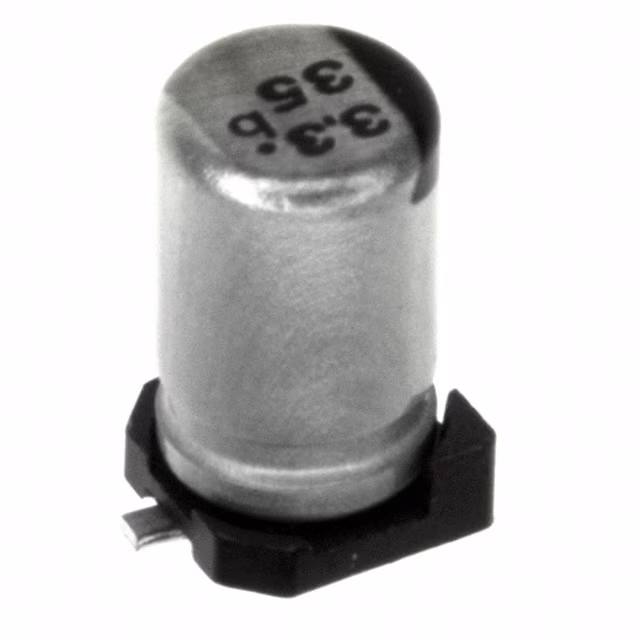

ECE-V1VS3R3SRCAP ALUM 3.3UF 20% 35V SMD |
2,513 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|

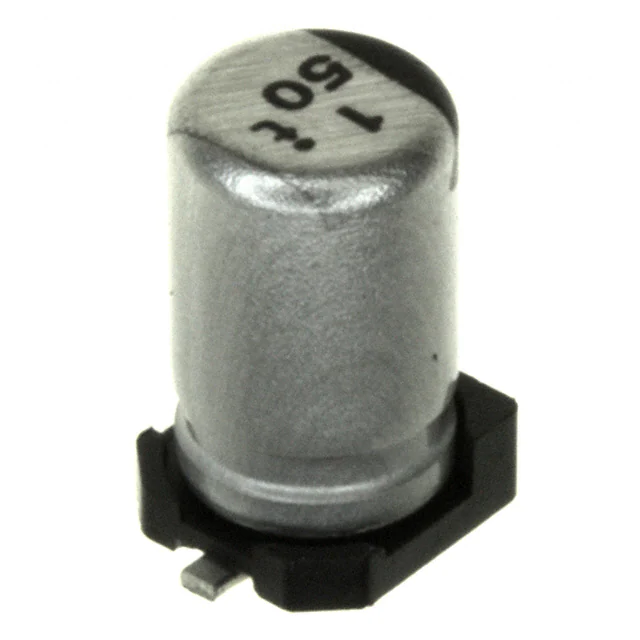

ECE-V1HS010SRCAP ALUM 1UF 20% 50V SMD |
1,100 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
EEV-HA1HR10RCAP ALUM 0.1UF 20% 50V SMD |
4,961 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HA1HR22RCAP ALUM 0.22UF 20% 50V SMD |
4,508 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HA1HR47RCAP ALUM 0.47UF 20% 50V SMD |
2,654 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 5 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-HB1HR10RCAP ALUM 0.1UF 20% 50V SMD |
2,750 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HB1HR22RCAP ALUM 0.22UF 20% 50V SMD |
4,786 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
