Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-HB1HR33RCAP ALUM 0.33UF 20% 50V SMD |
2,680 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-V0GS220SRCAP ALUM 22UF 20% 4V SMD |
2,043 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1VS2R2SRCAP ALUM 2.2UF 20% 35V SMD |
1,178 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|

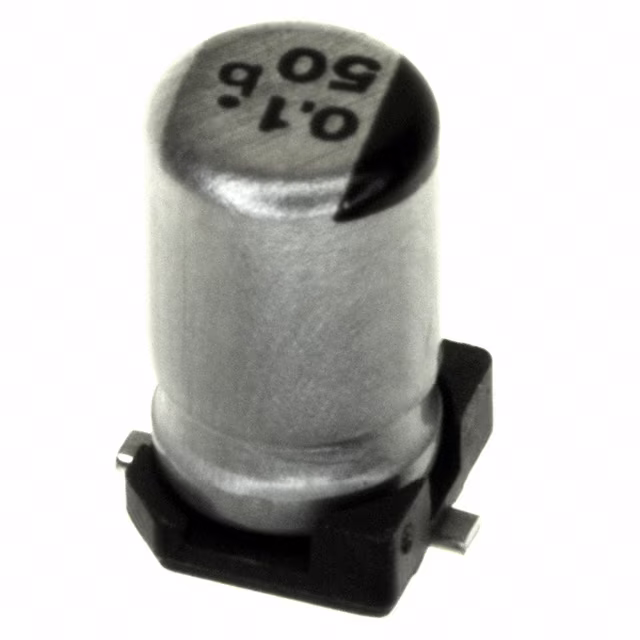

ECE-V1HS0R1SRCAP ALUM 0.1UF 20% 50V SMD |
2,758 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1HA0R1SRCAP ALUM 0.1UF 20% 50V SMD |
1,260 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR22SRCAP ALUM 0.22UF 20% 50V SMD |
1,025 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V1HAR22SRCAP ALUM 0.22UF 20% 50V SMD |
4,344 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR33SRCAP ALUM 0.33UF 20% 50V SMD |
1,647 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V1HAR33SRCAP ALUM 0.33UF 20% 50V SMD |
2,204 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR47SRCAP ALUM 0.47UF 20% 50V SMD |
1,078 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount |
