Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEG-A1H103CKECAP ALUM 10000UF 20% 50V SCREW |
2,449 | - |
|
Datasheet | AA | Bulk | Obsolete | 10000 µF | ±20% | 50 V | 44mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.79 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
EEG-A1H153FKECAP ALUM 15000UF 20% 50V SCREW |
4,272 | - |
|
Datasheet | AA | Bulk | Obsolete | 15000 µF | ±20% | 50 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.35 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

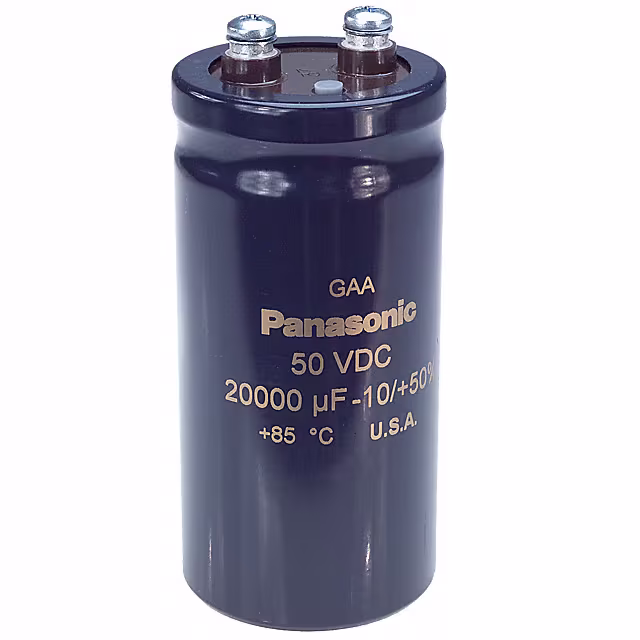

EEG-A1H203FKECAP ALUM 20000UF 20% 50V SCREW |
1,014 | - |
|
Datasheet | AA | Bulk | Obsolete | 20000 µF | ±20% | 50 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.15 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

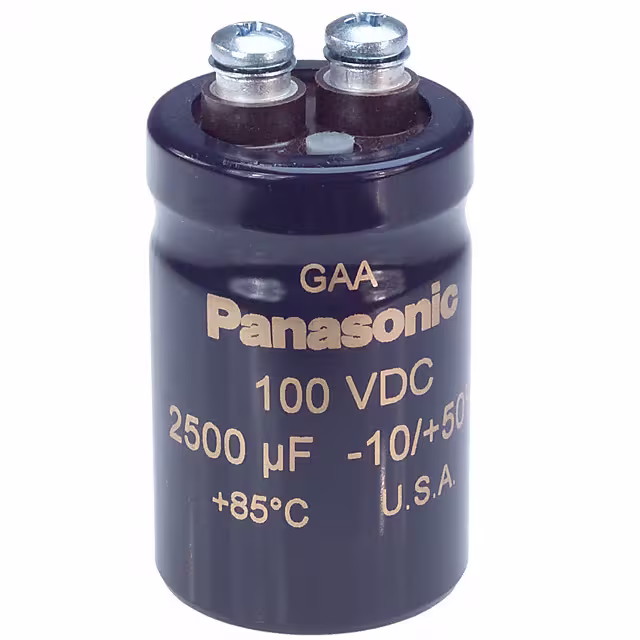

EEG-A2A252CCECAP ALUM 2500UF 20% 100V SCREW |
3,255 | - |
|
Datasheet | AA | Bulk | Obsolete | 2500 µF | ±20% | 100 V | 117mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.12 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|

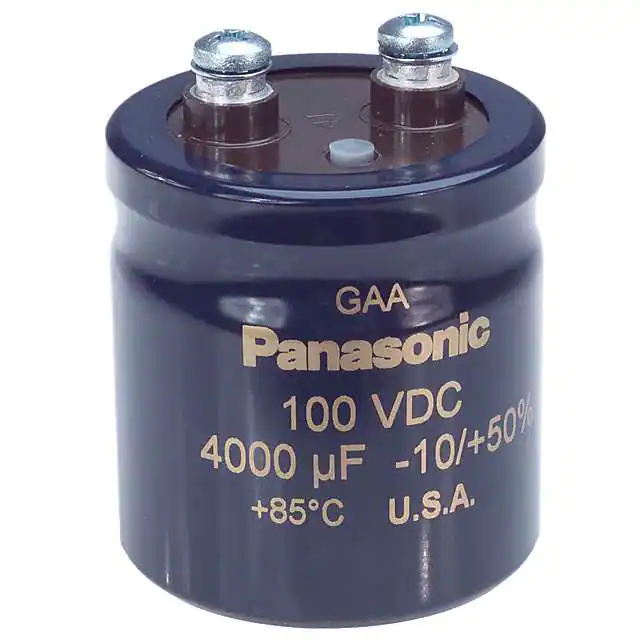

EEG-A2A402FCECAP ALUM 4000UF 20% 100V SCREW |
4,232 | - |
|
Datasheet | AA | Bulk | Obsolete | 4000 µF | ±20% | 100 V | 73mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.53 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
EEG-A2A103FHECAP ALUM 10000UF 20% 100V SCREW |
2,395 | - |
|
Datasheet | AA | Bulk | Obsolete | 10000 µF | ±20% | 100 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.16 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
EEG-A2A183GKECAP ALUM 18000UF 20% 100V SCREW |
2,281 | - |
|
Datasheet | AA | Bulk | Obsolete | 18000 µF | ±20% | 100 V | 16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.85 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

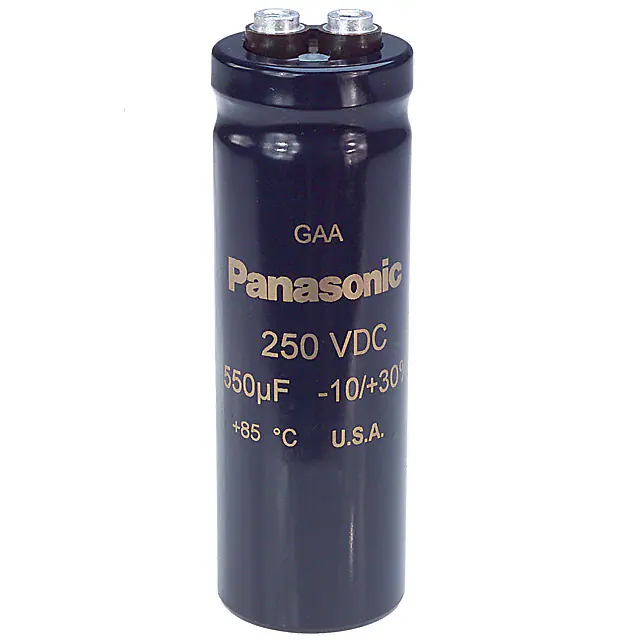

EEG-A2E551CKECAP ALUM 550UF 20% 250V SCREW CH |
3,222 | - |
|
Datasheet | AA | Bulk | Obsolete | 550 µF | ±20% | 250 V | 401mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
EEG-A2E122FCECAP ALUM 1200UF 20% 250V SCREW |
4,264 | - |
|
Datasheet | AA | Bulk | Obsolete | 1200 µF | ±20% | 250 V | 184mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|

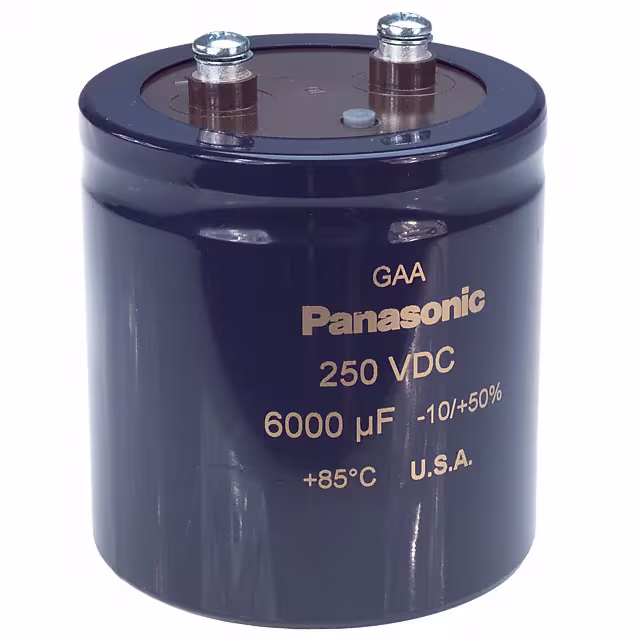

EEG-A2E602HGECAP ALUM 6000UF 20% 250V SCREW |
2,657 | - |
|
Datasheet | AA | Bulk | Obsolete | 6000 µF | ±20% | 250 V | 36mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.125" (79.38mm) | - | Chassis Mount |
