Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEG-A2E103HLECAP ALUM 10000UF 20% 250V SCREW |
3,492 | - |
|
Datasheet | AA | Bulk | Obsolete | 10000 µF | ±20% | 250 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.75 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
EEG-A2V102FEECAP ALUM 1000UF 20% 350V SCREW |
4,492 | - |
|
Datasheet | AA | Bulk | Obsolete | 1000 µF | ±20% | 350 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
EEG-A2V562HLECAP ALUM 5600UF 20% 350V SCREW |
2,984 | - |
|
Datasheet | AA | Bulk | Obsolete | 5600 µF | ±20% | 350 V | 39mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.06 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
EEG-A2W451FGECAP ALUM 450UF 20% 450V SCREW CH |
4,443 | - |
|
Datasheet | AA | Bulk | Obsolete | 450 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|

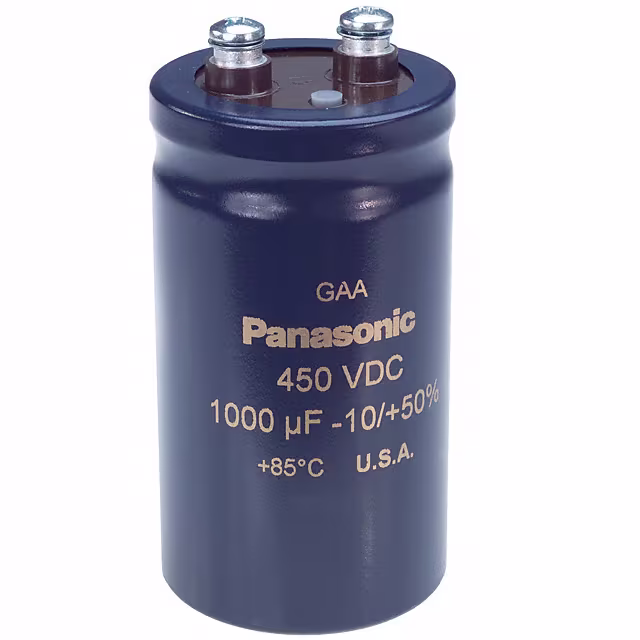

EEG-A2W102FHECAP ALUM 1000UF 20% 450V SCREW |
4,264 | - |
|
Datasheet | AA | Bulk | Obsolete | 1000 µF | ±20% | 450 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.85 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
EEG-A2W182FPECAP ALUM 1800UF 20% 450V SCREW |
2,990 | - |
|
Datasheet | AA | Bulk | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.47 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W182HPECAP ALUM 1800UF 20% 450V SCREW |
1,159 | - |
|
Datasheet | AA | Bulk | Obsolete | 1800 µF | ±20% | 450 V | 122mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.46 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
EEG-A2W222GKECAP ALUM 2200UF 20% 450V SCREW |
3,827 | - |
|
Datasheet | AA | Bulk | Obsolete | 2200 µF | ±20% | 450 V | 100mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.27 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
EEG-A2W242HNECAP ALUM 2400UF 20% 450V SCREW |
2,657 | - |
|
Datasheet | AA | Bulk | Obsolete | 2400 µF | ±20% | 450 V | 92mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
|
EEG-A2W312GPECAP ALUM 3100UF 20% 450V SCREW |
4,803 | - |
|
Datasheet | AA | Bulk | Obsolete | 3100 µF | ±20% | 450 V | 71mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.18 A @ 120 Hz | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount |
