Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-EB2D221CAP ALUM 220UF 20% 200V RADIAL |
1,130 | - |
|
Datasheet | EB-A | Bulk | Obsolete | 220 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 929.5 mA @ 120 Hz | 1.69 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|

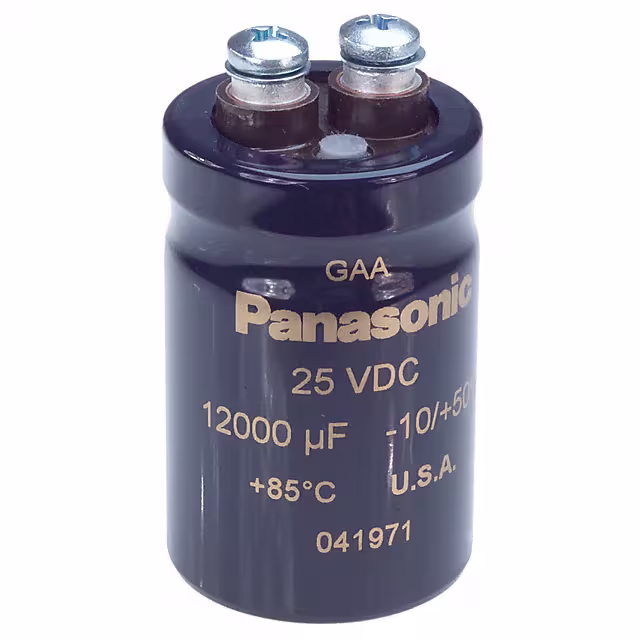

EEG-A1E123CCECAP ALUM 12000UF 20% 25V SCREW |
3,214 | - |
|
Datasheet | AA | Bulk | Obsolete | 12000 µF | ±20% | 25 V | 42mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.13 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|

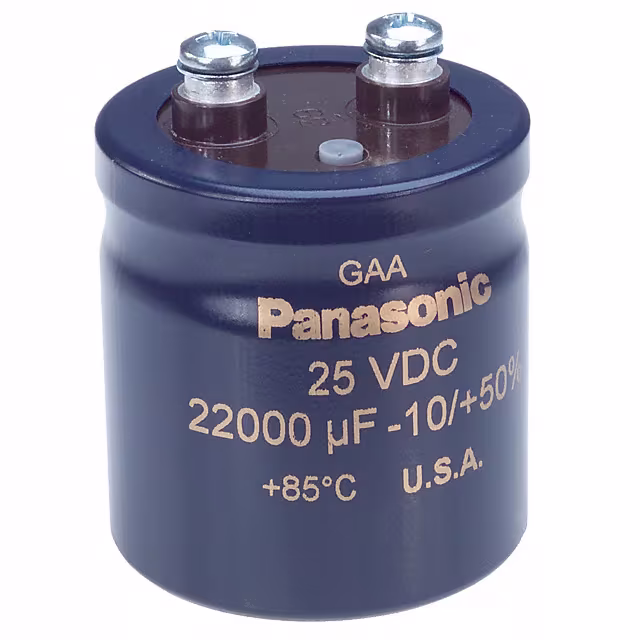

EEG-A1E223FCECAP ALUM 22000UF 20% 25V SCREW |
3,682 | - |
|
Datasheet | AA | Bulk | Obsolete | 22000 µF | ±20% | 25 V | 23mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.05 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
EEG-A1E473FGECAP ALUM 47000UF 20% 25V SCREW |
3,767 | - |
|
Datasheet | AA | Bulk | Obsolete | 47000 µF | ±20% | 25 V | 10mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.72 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
EEG-A1E683FHECAP ALUM 68000UF 20% 25V SCREW |
2,788 | - |
|
Datasheet | AA | Bulk | Obsolete | 68000 µF | ±20% | 25 V | 9mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.14 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
EEG-A1G602CGECAP ALUM 6000UF 20% 40V SCREW CH |
1,643 | - |
|
Datasheet | AA | Bulk | Obsolete | 6000 µF | ±20% | 40 V | 73mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.06 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
EEG-A1G133FKECAP ALUM 13000UF 20% 40V SCREW |
2,850 | - |
|
Datasheet | AA | Bulk | Obsolete | 13000 µF | ±20% | 40 V | 34mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.76 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

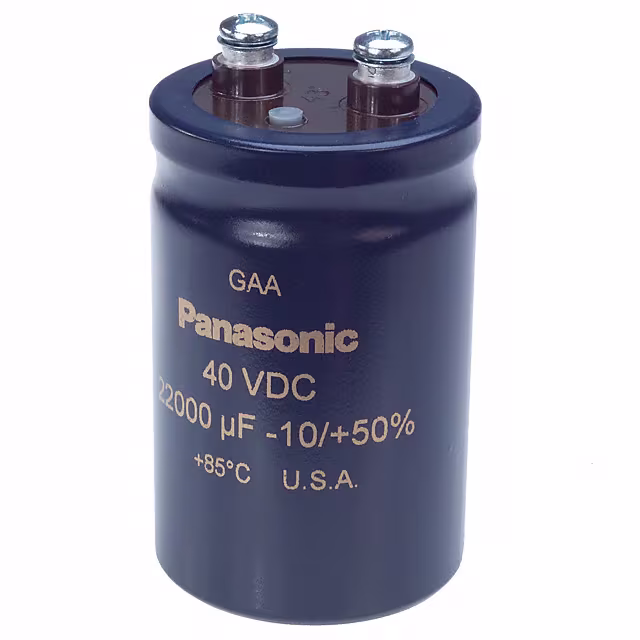

EEG-A1G223FGECAP ALUM 22000UF 20% 40V SCREW |
4,321 | - |
|
Datasheet | AA | Bulk | Obsolete | 22000 µF | ±20% | 40 V | 20mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.06 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
EEG-A1H412CGECAP ALUM 4100UF 20% 50V SCREW CH |
4,058 | - |
|
Datasheet | AA | Bulk | Obsolete | 4100 µF | ±20% | 50 V | 107mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
EEG-A1H682CGECAP ALUM 6800UF 20% 50V SCREW CH |
2,324 | - |
|
Datasheet | AA | Bulk | Obsolete | 6800 µF | ±20% | 50 V | 65mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.42 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount |
