Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2WP271EXCAP ALUM 270UF 20% 450V SNAP TH |
2,248 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 270 µF | ±20% | 450 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2WP331DACAP ALUM 330UF 20% 450V SNAP TH |
2,230 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECE-S2WP331EXCAP ALUM 330UF 20% 450V SNAP TH |
3,404 | - |
|
Datasheet | - | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2WP391EACAP ALUM 390UF 20% 450V SNAP TH |
1,331 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 390 µF | ±20% | 450 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
ECO-S2WP471EXCAP ALUM 470UF 20% 450V SNAP TH |
3,446 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 470 µF | ±20% | 450 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.542 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP470BACAP ALUM 47UF 20% 500V SNAP TH |
4,236 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 47 µF | ±20% | 500 V | 3.527Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 882 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

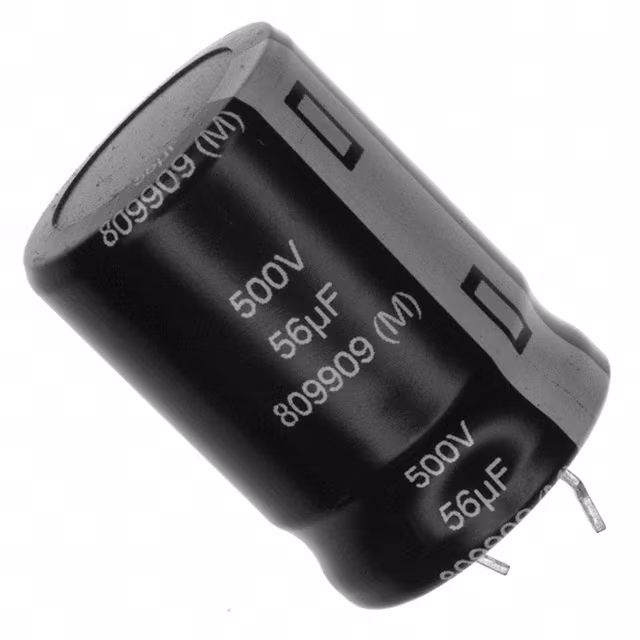

ECO-S2HP560BACAP ALUM 56UF 20% 500V SNAP TH |
1,841 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 56 µF | ±20% | 500 V | 2.96Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP680BACAP ALUM 68UF 20% 500V SNAP TH |
3,498 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2HP680CACAP ALUM 68UF 20% 500V SNAP TH |
2,969 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2HP820BACAP ALUM 82UF 20% 500V SNAP TH |
3,351 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole |
