Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1HA102BACAP ALUM 1000UF 20% 50V SNAP TH |
1,628 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 50 V | 232mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1HA152BACAP ALUM 1500UF 20% 50V SNAP TH |
3,381 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 50 V | 155mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.438 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA681BACAP ALUM 680UF 20% 63V SNAP TH |
3,022 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 680 µF | ±20% | 63 V | 414mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA102BACAP ALUM 1000UF 20% 63V SNAP TH |
3,967 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 63 V | 282mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.346 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA122BACAP ALUM 1200UF 20% 63V SNAP TH |
1,768 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1200 µF | ±20% | 63 V | 235mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.61 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

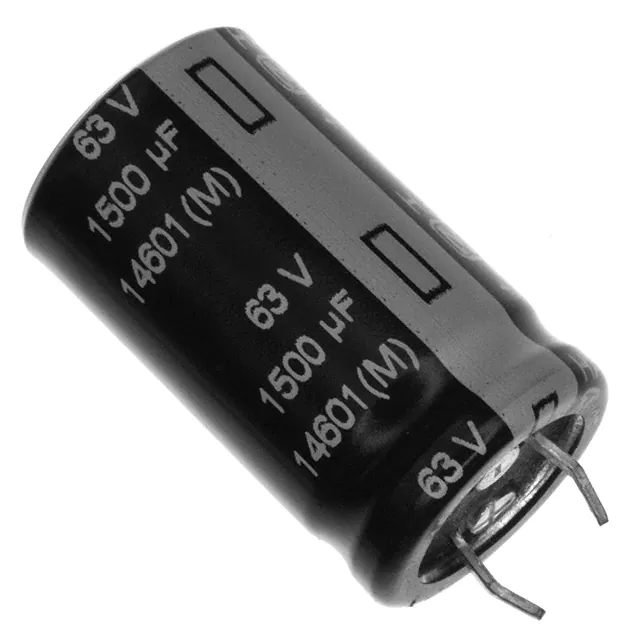

ECO-S1JA152AACAP ALUM 1500UF 20% 63V SNAP TH |
3,942 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 188mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.73 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ECO-S1JA152BACAP ALUM 1500UF 20% 63V SNAP TH |
1,405 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 188mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S1JA182BACAP ALUM 1800UF 20% 63V SNAP TH |
2,202 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 63 V | 157mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA182CACAP ALUM 1800UF 20% 63V SNAP TH |
1,793 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 63 V | 157mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA222BACAP ALUM 2200UF 20% 63V SNAP TH |
1,362 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 63 V | 128mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
