Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1JA222CACAP ALUM 2200UF 20% 63V SNAP TH |
4,431 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 63 V | 128mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA272BACAP ALUM 2700UF 20% 63V SNAP TH |
1,070 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 63 V | 104mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

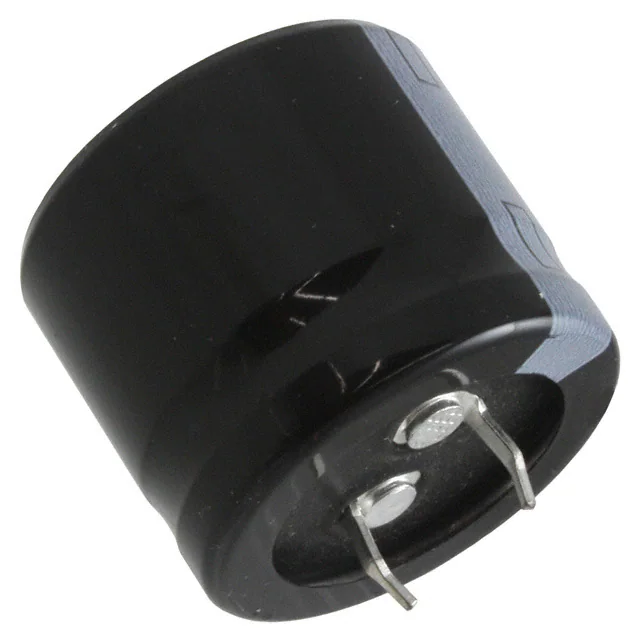

ECO-S1JA272DACAP ALUM 2700UF 20% 63V SNAP TH |
3,057 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 63 V | 104mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA332BACAP ALUM 3300UF 20% 63V SNAP TH |
3,075 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S1JA332EACAP ALUM 3300UF 20% 63V SNAP TH |
1,206 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECO-S1JA392CACAP ALUM 3900UF 20% 63V SNAP TH |
3,804 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 3900 µF | ±20% | 63 V | 77mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.105 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S1JA392EACAP ALUM 3900UF 20% 63V SNAP TH |
2,404 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 3900 µF | ±20% | 63 V | 77mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.105 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA472CACAP ALUM 4700UF 20% 63V SNAP TH |
3,608 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 63mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.45 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ECO-S1JA472EACAP ALUM 4700UF 20% 63V SNAP TH |
1,827 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 63mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.45 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA562DACAP ALUM 5600UF 20% 63V SNAP TH |
1,314 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 5600 µF | ±20% | 63 V | 53mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
