Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2HP820CACAP ALUM 82UF 20% 500V SNAP TH |
2,850 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP101BACAP ALUM 100UF 20% 500V SNAP TH |
3,198 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP101CACAP ALUM 100UF 20% 500V SNAP TH |
2,440 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2HP121BACAP ALUM 120UF 20% 500V SNAP TH |
1,605 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

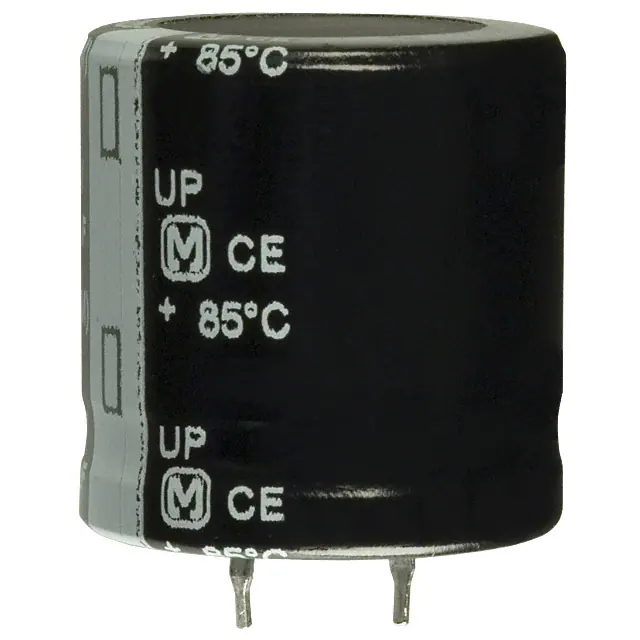

ECO-S2HP121DACAP ALUM 120UF 20% 500V SNAP TH |
3,706 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

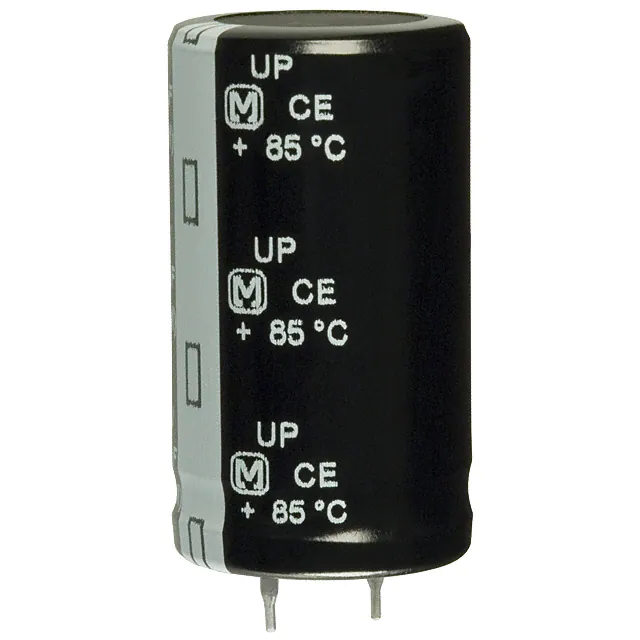

ECO-S2HP151CACAP ALUM 150UF 20% 500V SNAP TH |
4,718 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.8 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP151EACAP ALUM 150UF 20% 500V SNAP TH |
3,470 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2HP181CACAP ALUM 180UF 20% 500V SNAP TH |
2,195 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

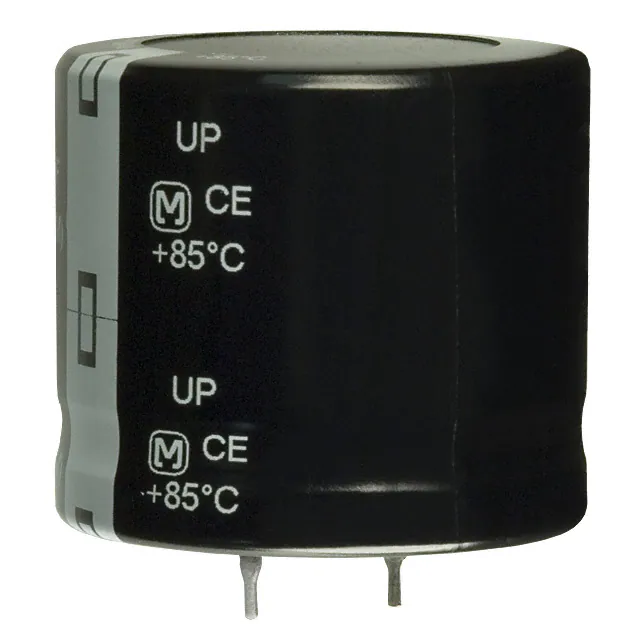

ECO-S2HP181EACAP ALUM 180UF 20% 500V SNAP TH |
3,569 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP221DACAP ALUM 220UF 20% 500V SNAP TH |
2,259 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole |
