Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

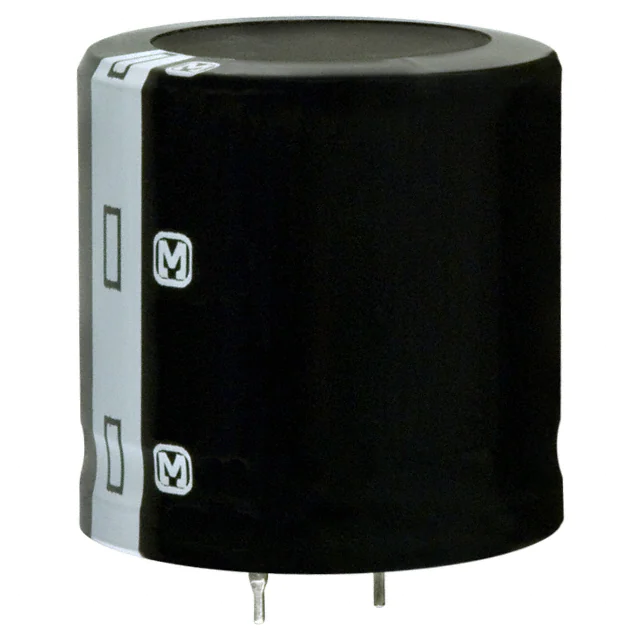

ECO-S1JA562EACAP ALUM 5600UF 20% 63V SNAP TH |
4,087 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 5600 µF | ±20% | 63 V | 53mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

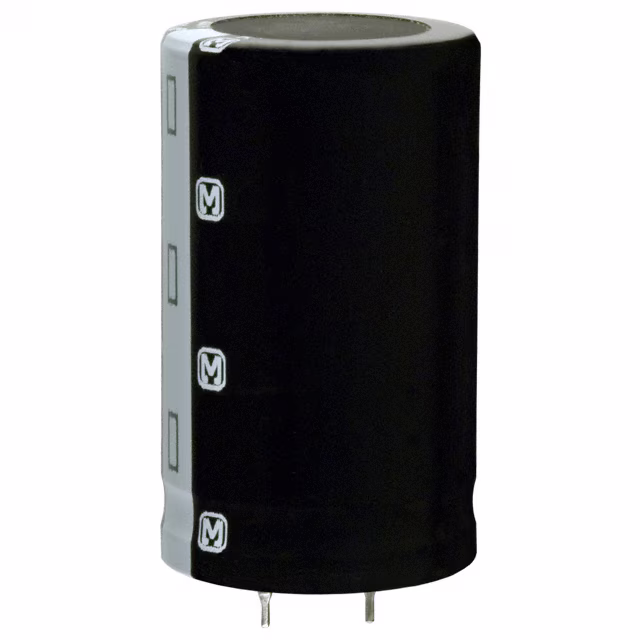

ECO-S1JA682DACAP ALUM 6800UF 20% 63V SNAP TH |
3,494 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

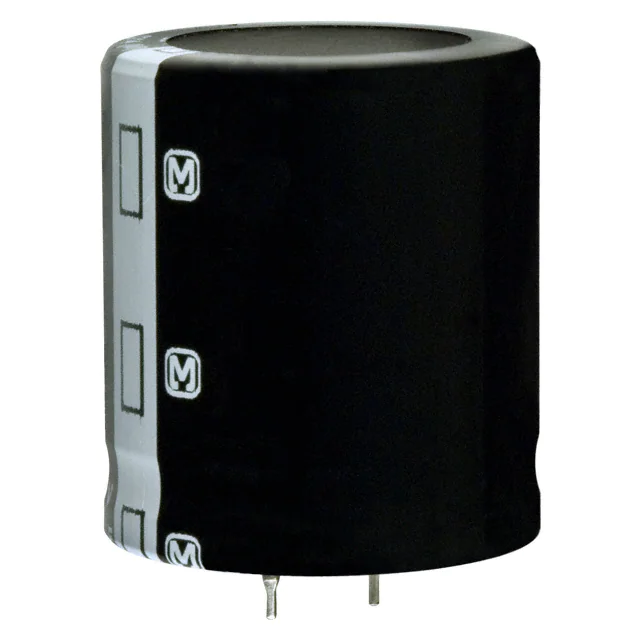

ECO-S1JA682EACAP ALUM 6800UF 20% 63V SNAP TH |
4,209 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

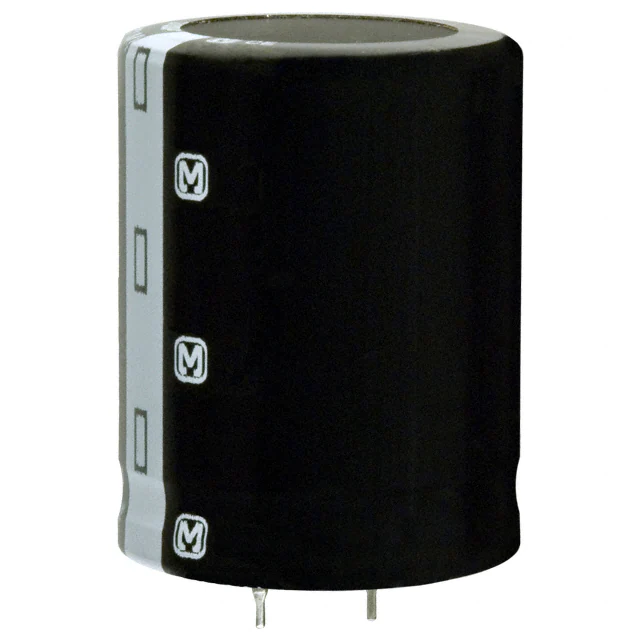

ECO-S1JA822EACAP ALUM 8200UF 20% 63V SNAP TH |
1,562 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 8200 µF | ±20% | 63 V | 40mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

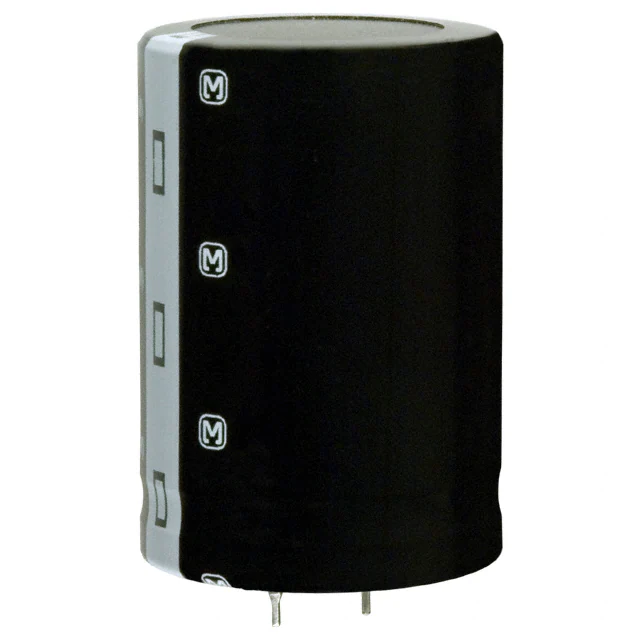

ECO-S1JA103EACAP ALUM 10000UF 20% 63V SNAP TH |
2,185 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 10000 µF | ±20% | 63 V | 33mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.06 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S1KA471BACAP ALUM 470UF 20% 80V SNAP TH |
1,240 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 470 µF | ±20% | 80 V | 388mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 920 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA681BACAP ALUM 680UF 20% 80V SNAP TH |
2,644 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 680 µF | ±20% | 80 V | 268mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA821BACAP ALUM 820UF 20% 80V SNAP TH |
4,500 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 820 µF | ±20% | 80 V | 222mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA102BACAP ALUM 1000UF 20% 80V SNAP TH |
1,571 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 80 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1KA102CACAP ALUM 1000UF 20% 80V SNAP TH |
1,354 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 80 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole |
