Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FK1E332AVCAP ALUM 3300UF 20% 25V SMD |
265 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | 33mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.673" (17.10mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EEE-TP1E272VCAP ALUM 2700UF 20% 25V SMD |
375 | - |
|
Datasheet | TP, Anti-Vibration | Tape & Reel (TR) | Active | 2700 µF | ±20% | 25 V | 45mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

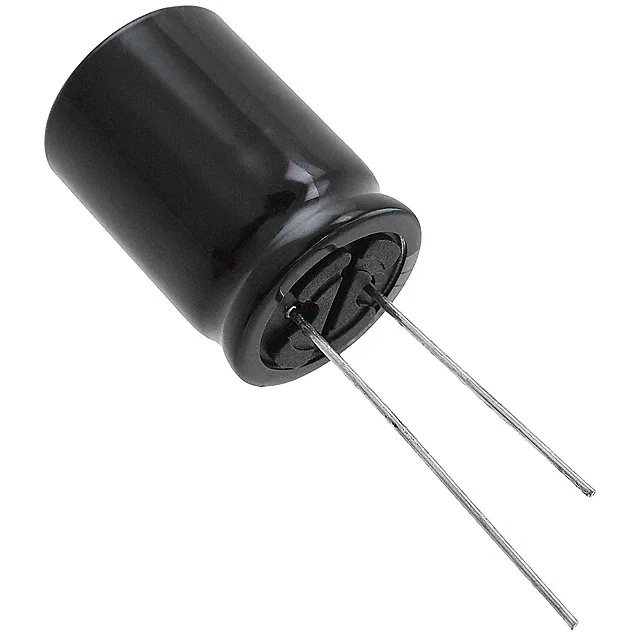

EEU-TP1E332SCAP ALUM 3300UF 20% 25V RADIAL |
680 | - |
|
Datasheet | TP-A | Bulk | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-TP1V242MCAP ALUM 2400UF 20% 35V SMD |
257 | - |
|
Datasheet | TP | Tape & Reel (TR) | Active | 2400 µF | ±20% | 35 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EEE-FK1A912SVCAP ALUM 9100UF 20% 10V SMD |
218 | - |
|
Datasheet | FKS, Anti-Vibration | Tape & Reel (TR) | Active | 9100 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.98 A @ 120 Hz | 2.64 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EEU-HD1A153CAP ALUM 15000UF 20% 10V RADIAL |
127 | - |
|
Datasheet | HD | Bulk | Active | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|

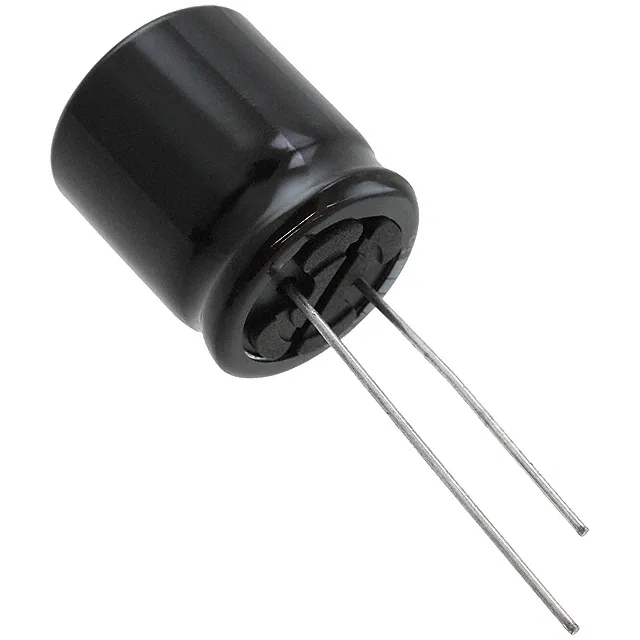

EEU-TP1V152SCAP ALUM 1500UF 20% 35V RADIAL |
184 | - |
|
Datasheet | TP-A | Bulk | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-TP1E272SBCAP ALUM 2700UF 20% 25V RADIAL |
169 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-TP1V162BCAP ALUM 1600UF 20% 35V RADIAL |
889 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 1600 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-TP1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
425 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole |
