Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-EE2V470SCAP ALUM 47UF 20% 350V RADIAL TH |
200 | - |
|
Datasheet | EE-A | Bulk | Active | 47 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 374.5 mA @ 120 Hz | 1.07 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FK0J682AMCAP ALUM 6800UF 20% 6.3V SMD |
250 | - |
|
Datasheet | FK | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EEU-EE2G470SBCAP ALUM 47UF 20% 400V RADIAL TH |
242 | - |
|
Datasheet | EE-A | Cut Tape (CT) | Active | 47 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 1.18 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-ED2V680SCAP ALUM 68UF 20% 350V RADIAL TH |
479 | - |
|
Datasheet | ED | Bulk | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

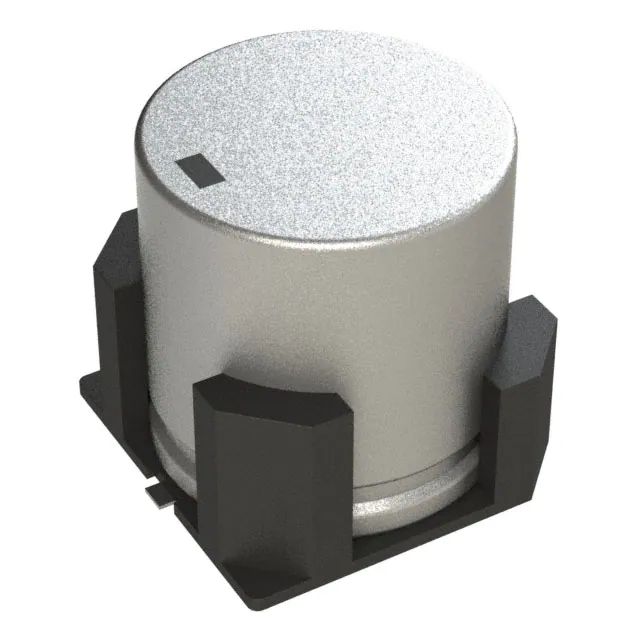

EEV-FK0J682VCAP ALUM 6800UF 20% 6.3V SMD |
258 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEU-EB2V680CAP ALUM 68UF 20% 350V RADIAL TH |
158 | - |
|
Datasheet | EB-A | Bulk | Active | 68 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 780 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
EEU-HD1C472CAP ALUM 4700UF 20% 16V RADIAL |
433 | - |
|
Datasheet | HD | Bulk | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 1.702 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-TP1V132MCAP ALUM 1300UF 20% 35V SMD |
467 | - |
|
Datasheet | TP | Tape & Reel (TR) | Active | 1300 µF | ±20% | 35 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEU-FK1C392LCAP ALUM 3900UF 20% 16V RADIAL |
936 | - |
|
Datasheet | FK | Bulk | Active | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.352 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-FK1C432SVCAP ALUM 4300UF 20% 16V SMD |
185 | - |
|
Datasheet | FKS, Anti-Vibration | Tape & Reel (TR) | Active | 4300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount |
