Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FT0J222AVCAP ALUM 2200UF 20% 6.3V SMD |
1,405 | - |
|
Datasheet | FT, Anti-Vibration | Tape & Reel (TR) | Active | 2200 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FS2A271LCAP ALUM 270UF 20% 100V RADIAL |
1,296 | - |
|
Datasheet | FS-A | Bulk | Active | 270 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.2 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EEE-FT1A152AVCAP ALUM 1500UF 20% 10V SMD |
975 | - |
|
Datasheet | FT, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 10 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FR1E182SCAP ALUM 1800UF 20% 25V RADIAL |
197 | - |
|
Datasheet | FR-A | Bulk | Active | 1800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FR1V182CAP ALUM 1800UF 20% 35V RADIAL |
197 | - |
|
Datasheet | FR-A | Bulk | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

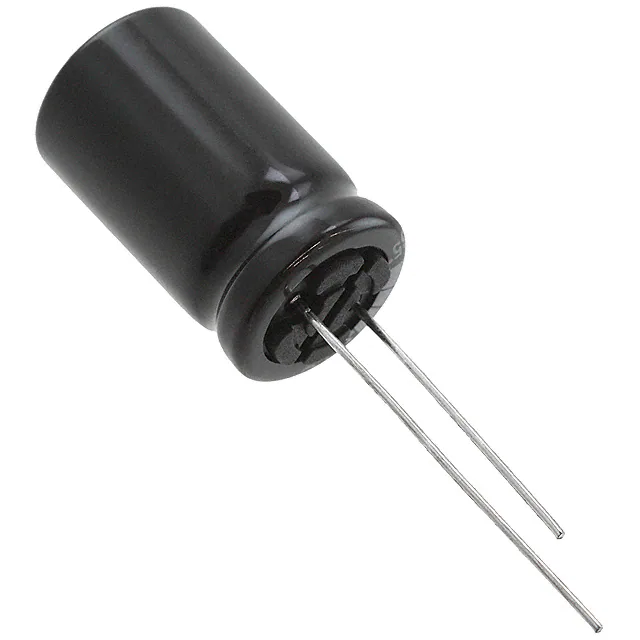

EEU-TP1E122BCAP ALUM 1200UF 20% 25V RADIAL |
1,295 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 1200 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.488 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-TA1E102SBCAP ALUM 1000UF 20% 25V RADIAL |
205 | - |
|
Datasheet | TA | Cut Tape (CT) | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EEU-FK0J562SCAP ALUM 5600UF 20% 6.3V RADIAL |
876 | - |
|
Datasheet | FK | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.864 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TK1A102AQCAP ALUM 1000UF 20% 10V SMD |
990 | - |
|
Datasheet | TK | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
|
EEE-TK1E331AQCAP ALUM 330UF 20% 25V SMD |
400 | - |
|
Datasheet | TK | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount |
