Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS0J752SCAP ALUM 7500UF 20% 6.3V RADIAL |
750 | - |
|
Datasheet | FS-A | Bulk | Active | 7500 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-ED2C151SCAP ALUM 150UF 20% 160V RADIAL |
244 | - |
|
Datasheet | ED-A | Bulk | Active | 150 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|

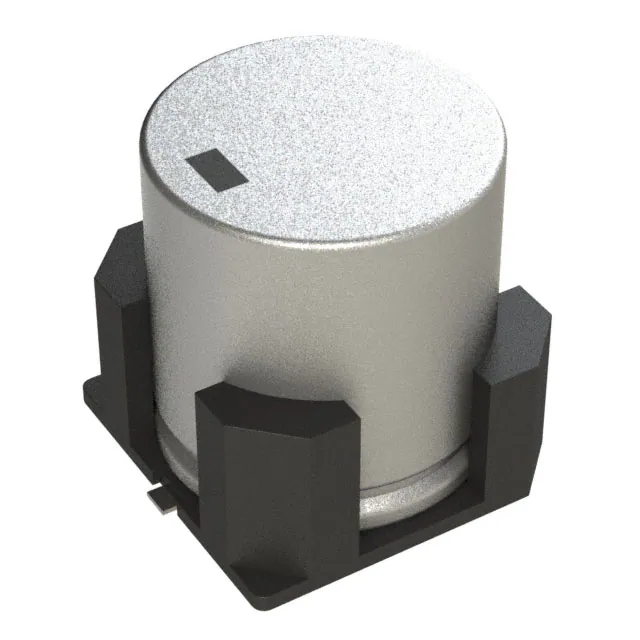

EEV-FK1C152VCAP ALUM 1500UF 20% 16V SMD |
868 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | 60 mOhms | - | 0.492" Dia (12.50mm) | 0.543" (13.80mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-EB2D151CAP ALUM 150UF 20% 200V RADIAL |
161 | - |
|
Datasheet | EB-A | Bulk | Active | 150 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 704 mA @ 120 Hz | 1.28 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
EEE-FK1C152AVCAP ALUM 1500UF 20% 16V SMD |
382 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.555" (14.10mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
ECE-A1AN332UCAP ALUM 3300UF 20% 10V RADIAL |
207 | - |
|
Datasheet | SU | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.853 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEU-HD1H102CAP ALUM 1000UF 20% 50V RADIAL |
179 | - |
|
Datasheet | HD | Bulk | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.092 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

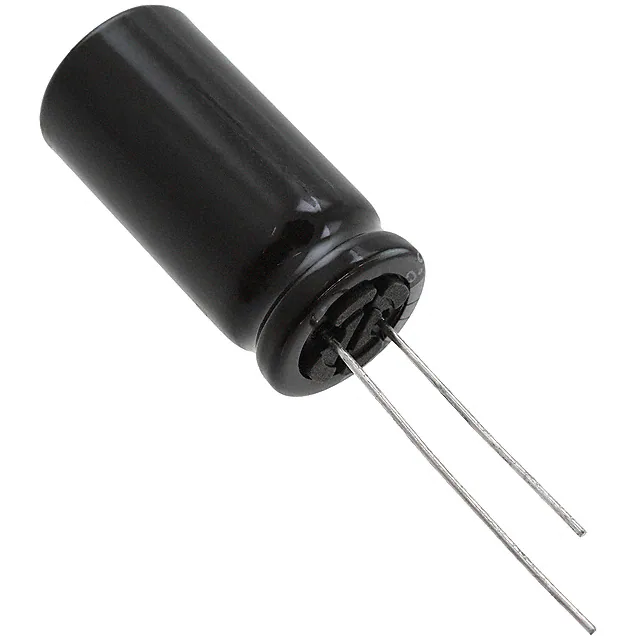

EEU-TP1E182BCAP ALUM 1800UF 20% 25V RADIAL |
1,478 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.744 A @ 120 Hz | 1.75 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FK1A682CAP ALUM 6800UF 20% 10V RADIAL |
826 | - |
|
Datasheet | FK | Bulk | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.76 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-HD0J682AMCAP ALUM 6800UF 20% 6.3V SMD |
565 | - |
|
Datasheet | HD | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.28 A @ 120 Hz | 1.51 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount |
