Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC0J123CAP ALUM 12000UF 20% 6.3V RADIAL |
481 | - |
|
Datasheet | FC | Bulk | Active | 12000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.09 A @ 120 Hz | 3.635 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEE-FK1A472AVCAP ALUM 4700UF 20% 10V SMD |
216 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEV-TG1K221MCAP ALUM 220UF 20% 80V SMD |
339 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 220 µF | ±20% | 80 V | 280mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEV-TG1C332MCAP ALUM 3300UF 20% 16V SMD |
301 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EEV-TG1E102UMCAP ALUM 1000UF 20% 25V SMD |
1,221 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEU-ED2V680CAP ALUM 68UF 20% 350V RADIAL TH |
198 | - |
|
Datasheet | ED-A | Bulk | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEU-FK1A682SCAP ALUM 6800UF 20% 10V RADIAL |
952 | - |
|
Datasheet | FK | Bulk | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.112 A @ 120 Hz | 2.64 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-HD1V182AMCAP ALUM 1800UF 20% 35V SMD |
365 | - |
|
Datasheet | HD | Tape & Reel (TR) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.45 A @ 120 Hz | 1.813 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEV-FK1C332VCAP ALUM 3300UF 20% 16V SMD |
377 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|

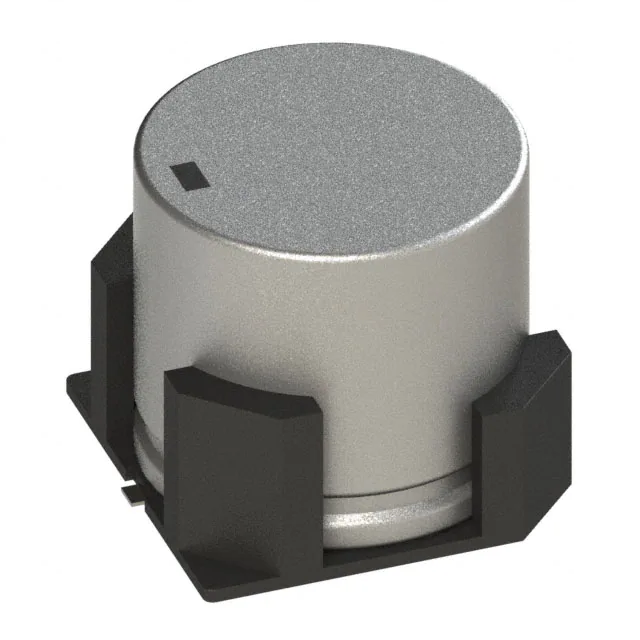

EEV-FK1A682VCAP ALUM 6800UF 20% 10V SMD |
285 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | 33 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount |
