Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

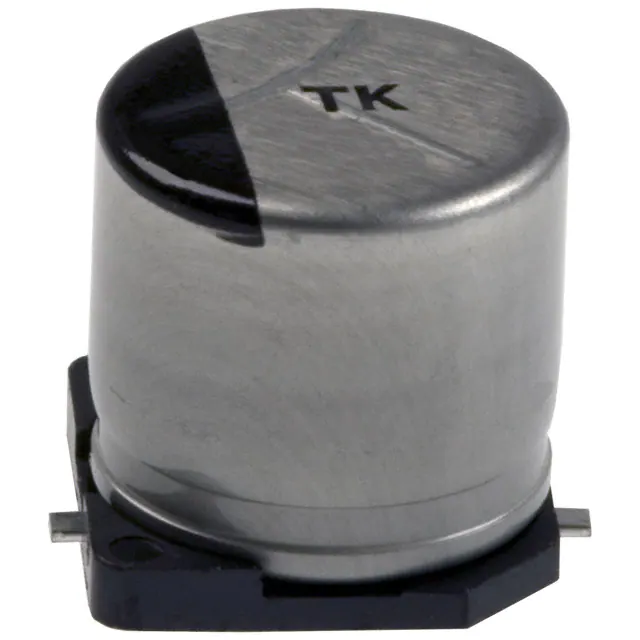

EEE-TK1K470AQCAP ALUM 47UF 20% 80V SMD |
400 | - |
|
Datasheet | TK | Tape & Reel (TR) | Active | 47 µF | ±20% | 80 V | 420mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 187.5 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEE-FT0J222GVCAP ALUM 2200UF 20% 6.3V SMD |
781 | - |
|
Datasheet | FT, Anti-Vibration | Tape & Reel (TR) | Active | 2200 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FR1E182SBCAP ALUM 1800UF 20% 25V RADIAL |
248 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-TKA152UAQCAP ALUM 1500UF 20% 10V SMD |
213 | - |
|
Datasheet | TK | Tape & Reel (TR) | Active | 1500 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-FS1A822BCAP ALUM 8200UF 20% 10V RADIAL |
899 | - |
|
Datasheet | FS-A | Cut Tape (CT) | Active | 8200 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EEU-FR1C392SBCAP ALUM 3900UF 20% 16V RADIAL |
235 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 3900 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FC1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
469 | - |
|
Datasheet | FC | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.992 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FP1E152BCAP ALUM 1500UF 20% 25V RADIAL |
4,941 | - |
|
Datasheet | FP | Cut Tape (CT) | Active | 1500 µF | ±20% | 25 V | 38mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1125 A @ 120 Hz | 3.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FR1J561SBCAP ALUM 560UF 20% 63V RADIAL TH |
230 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.615 A @ 120 Hz | 2.153 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FS0J752SBCAP ALUM 7500UF 20% 6.3V RADIAL |
973 | - |
|
Datasheet | FS-A | Cut Tape (CT) | Active | 7500 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
