Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-TA1H331CAP ALUM 330UF 20% 50V RADIAL TH |
261 | - |
|
Datasheet | TA | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 864.5 mA @ 120 Hz | 1.33 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-EE2V470CAP ALUM 47UF 20% 350V RADIAL TH |
215 | - |
|
Datasheet | EE-A | Bulk | Active | 47 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 374.5 mA @ 120 Hz | 1.07 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

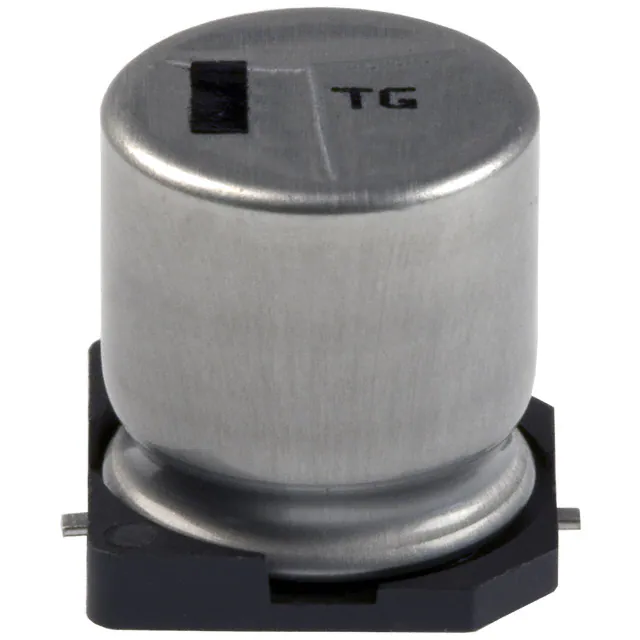

EEV-TG1A102QCAP ALUM 1000UF 20% 10V SMD |
1,223 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-FS1A562LCAP ALUM 5600UF 20% 10V RADIAL |
978 | - |
|
Datasheet | FS-A | Bulk | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EEU-FS1C362LCAP ALUM 3600UF 20% 16V RADIAL |
731 | - |
|
Datasheet | FS-A | Bulk | Active | 3600 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EEE-TP1V221AVCAP ALUM 220UF 20% 35V SMD |
14,876 | - |
|
Datasheet | TP, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-TP1E331AVCAP ALUM 330UF 20% 25V SMD |
336 | - |
|
Datasheet | TP, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEV-TG1A152UQCAP ALUM 1500UF 20% 10V SMD |
556 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 1500 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-TP1E821BCAP ALUM 820UF 20% 25V RADIAL TH |
499 | - |
|
Datasheet | TP-A | Cut Tape (CT) | Active | 820 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.155 A @ 120 Hz | 1.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-FT1E821AVCAP ALUM 820UF 20% 25V SMD |
7,364 | - |
|
Datasheet | FT, Anti-Vibration | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
