Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECK-A3A392KBPCAP CER 3900PF 1KV Y5P RADIAL |
1,483 | - |
|
Datasheet | KBP | Bulk | Obsolete | 3900 pF | ±10% | 1000V (1kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.531" Dia (13.50mm) | 0.689" (17.50mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3A472KBPCAP CER 4700PF 1KV Y5P RADIAL |
2,323 | - |
|
Datasheet | KBP | Bulk | Obsolete | 4700 pF | ±10% | 1000V (1kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.610" Dia (15.50mm) | 0.768" (19.50mm) | - | 0.394" (10.00mm) | Formed Leads |
|

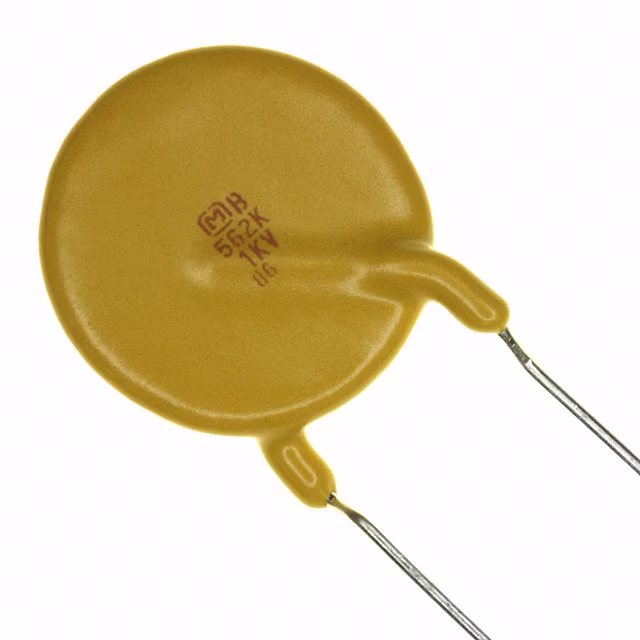

ECK-A3A562KBPCAP CER 5600PF 1KV Y5P RADIAL |
2,168 | - |
|
Datasheet | KBP | Bulk | Obsolete | 5600 pF | ±10% | 1000V (1kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.669" Dia (17.00mm) | 0.827" (21.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3A103KBPCAP CER 10000PF 1KV Y5P RADIAL |
2,869 | - |
|
Datasheet | KBP | Bulk | Obsolete | 10000 pF | ±10% | 1000V (1kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.866" Dia (22.00mm) | 1.024" (26.00mm) | - | 0.394" (10.00mm) | Straight |
|
ECK-A3D101KBPCAP CER 100PF 2KV Y5P RADIAL |
2,843 | - |
|
Datasheet | KBP | Bulk | Obsolete | 100 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3D151KBPCAP CER 150PF 2KV Y5P RADIAL |
4,610 | - |
|
Datasheet | KBP | Bulk | Obsolete | 150 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3D221KBPCAP CER 220PF 2KV Y5P RADIAL |
1,521 | - |
|
Datasheet | KBP | Bulk | Obsolete | 220 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3D331KBPCAP CER 330PF 2KV Y5P RADIAL |
4,775 | - |
|
Datasheet | KBP | Bulk | Obsolete | 330 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3D471KBPCAP CER 470PF 2KV Y5P RADIAL |
2,314 | - |
|
Datasheet | KBP | Bulk | Obsolete | 470 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3D561KBPCAP CER 560PF 2KV Y5P RADIAL |
4,245 | - |
|
Datasheet | KBP | Bulk | Obsolete | 560 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | 0.295" (7.50mm) | Formed Leads |
