Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECK-A3D681KBPCAP CER 680PF 2KV Y5P RADIAL |
1,283 | - |
|
Datasheet | KBP | Bulk | Obsolete | 680 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3D102KBPCAP CER 1000PF 2KV Y5P RADIAL |
4,680 | - |
|
Datasheet | KBP | Bulk | Obsolete | 1000 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | 0.295" (7.50mm) | Straight |
|
ECK-A3D152KBPCAP CER 1500PF 2KV Y5P RADIAL |
2,554 | - |
|
Datasheet | KBP | Bulk | Obsolete | 1500 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3D222KBPCAP CER 2200PF 2KV Y5P RADIAL |
1,728 | - |
|
Datasheet | KBP | Bulk | Obsolete | 2200 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.551" Dia (14.00mm) | 0.709" (18.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|

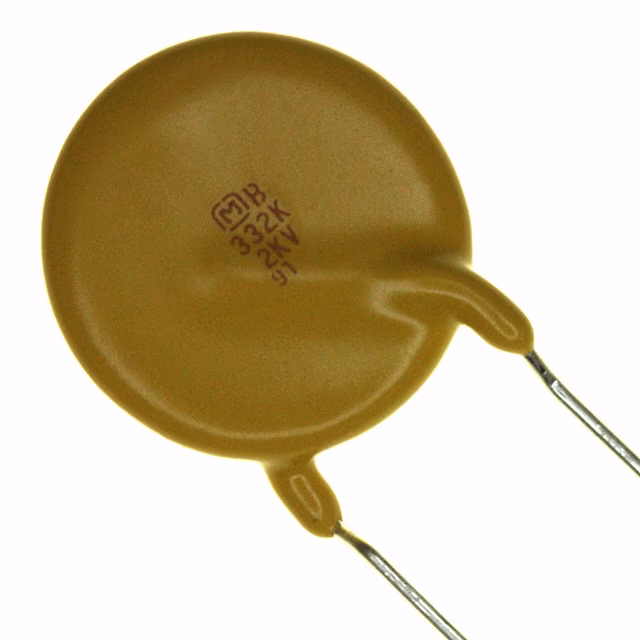

ECK-A3D332KBPCAP CER 3300PF 2KV Y5P RADIAL |
3,978 | - |
|
Datasheet | KBP | Bulk | Obsolete | 3300 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.669" Dia (17.00mm) | 0.827" (21.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3D392KBPCAP CER 3900PF 2KV Y5P RADIAL |
1,707 | - |
|
Datasheet | KBP | Bulk | Obsolete | 3900 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3D472KBPCAP CER 4700PF 2KV Y5P RADIAL |
3,601 | - |
|
Datasheet | KBP | Bulk | Obsolete | 4700 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.984" Dia (25.00mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|
|
ECK-A3D562KBPCAP CER 5600PF 2KV Y5P RADIAL |
3,884 | - |
|
Datasheet | KBP | Bulk | Obsolete | 5600 pF | ±10% | 2000V (2kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.984" Dia (25.00mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3F101KBPCAP CER 100PF 3KV Y5P RADIAL |
3,619 | - |
|
Datasheet | KBP | Bulk | Obsolete | 100 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3F151KBPCAP CER 150PF 3KV Y5P RADIAL |
1,444 | - |
|
Datasheet | KBP | Bulk | Obsolete | 150 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
