Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECK-A3F181KBPCAP CER 180PF 3KV Y5P RADIAL |
3,362 | - |
|
Datasheet | KBP | Bulk | Obsolete | 180 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3F221KBPCAP CER 220PF 3KV Y5P RADIAL |
3,478 | - |
|
Datasheet | KBP | Bulk | Obsolete | 220 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
|
ECK-A3F271KBPCAP CER 270PF 3KV Y5P RADIAL |
2,306 | - |
|
Datasheet | KBP | Bulk | Obsolete | 270 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3F331KBPCAP CER 330PF 3KV Y5P RADIAL |
4,095 | - |
|
Datasheet | KBP | Bulk | Obsolete | 330 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3F471KBPCAP CER 470PF 3KV Y5P RADIAL |
4,557 | - |
|
Datasheet | KBP | Bulk | Obsolete | 470 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.374" Dia (9.50mm) | 0.532" (13.50mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3F561KBPCAP CER 560PF 3KV Y5P RADIAL |
1,501 | - |
|
Datasheet | KBP | Bulk | Obsolete | 560 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|
ECK-A3F681KBPCAP CER 680PF 3KV Y5P RADIAL |
4,834 | - |
|
Datasheet | KBP | Bulk | Obsolete | 680 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.433" Dia (11.00mm) | 0.591" (15.00mm) | - | 0.295" (7.50mm) | Formed Leads |
|

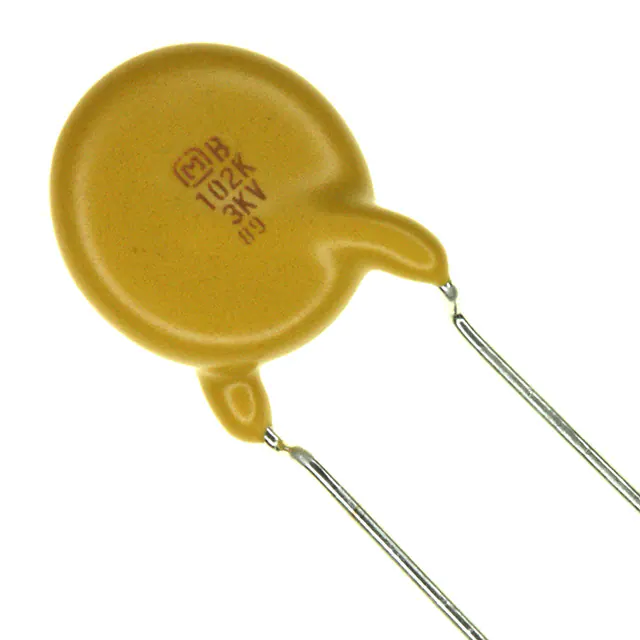

ECK-A3F102KBPCAP CER 1000PF 3KV Y5P RADIAL |
2,667 | - |
|
Datasheet | KBP | Bulk | Obsolete | 1000 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | 0.295" (7.50mm) | Straight |
|
ECK-A3F122KBPCAP CER 1200PF 3KV Y5P RADIAL |
1,835 | - |
|
Datasheet | KBP | Bulk | Obsolete | 1200 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.571" Dia (14.50mm) | 0.728" (18.50mm) | - | 0.394" (10.00mm) | Formed Leads |
|
ECK-A3F182KBPCAP CER 1800PF 3KV Y5P RADIAL |
4,173 | - |
|
Datasheet | KBP | Bulk | Obsolete | 1800 pF | ±10% | 3000V (3kV) | Y5P (B) | -25°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.630" Dia (16.00mm) | 0.787" (20.00mm) | - | 0.394" (10.00mm) | Formed Leads |
