Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-V5102309BROTARY ENCODER MECHANICAL 9PPR |
365 | - |
|
Datasheet | EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V6102915BROTARY ENCODER MECHANICAL 15PPR |
182 | - |
|
Datasheet | EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 20mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-YPCAJ016BROTARY ENCODER MECHANICAL 16PPR |
486 | - |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YPCAJ008BROTARY ENCODER MECHANICAL 8PPR |
480 | - |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

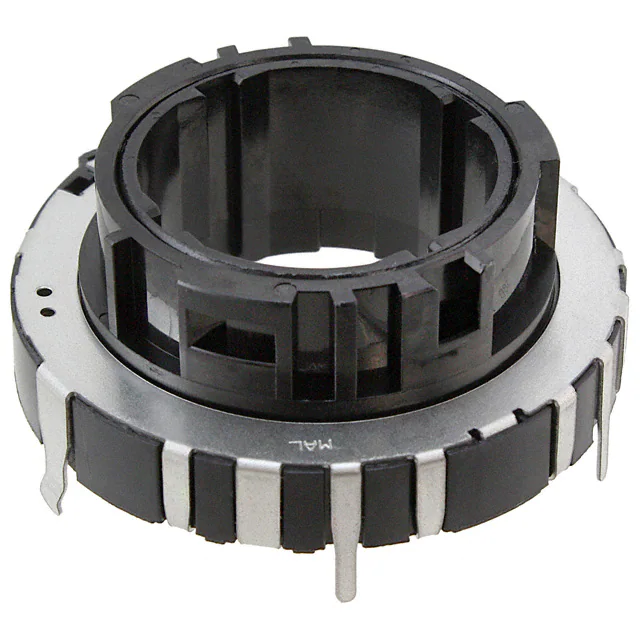

EVQ-V4300418BROTARY ENCODER MECHANICAL |
186 | - |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | - | - | - | - | - | - | - | - | - | - | - |
|

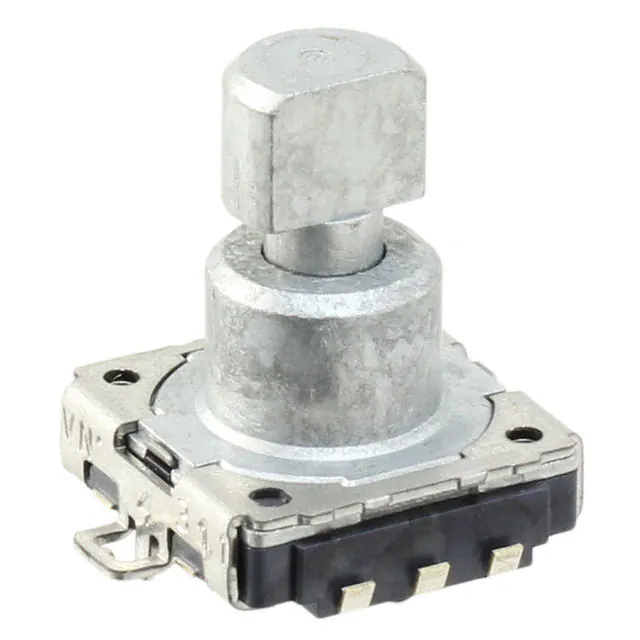

EVE-SBBFE516BROTARY ENCODER MECHANICAL 16PPR |
3,106 | - |
|
Datasheet | EVES | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

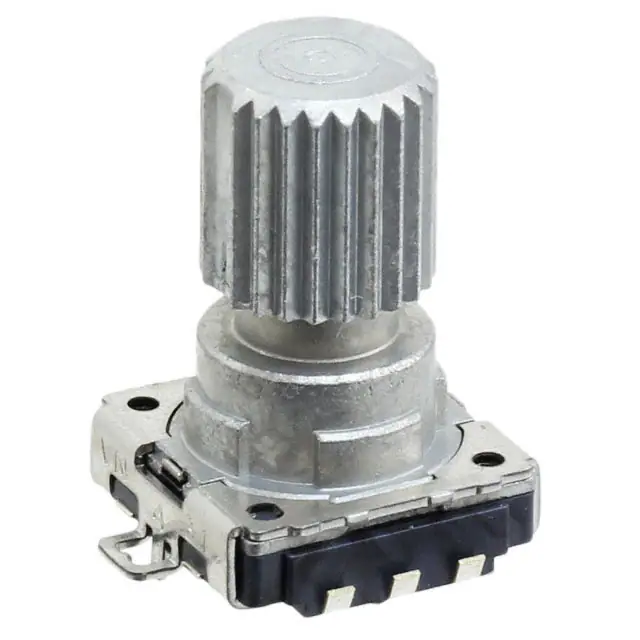

EVE-T23AH516BROTARY ENCODER MECHANICAL 16PPR |
3,990 | - |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | - | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V9C00116EROTARY ENCODER MECHANICAL 16PPR |
3,492 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Absolute | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | - | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5C00315BROTARY ENCODER MECHANICAL 9PPR |
2,529 | - |
|
Datasheet | EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

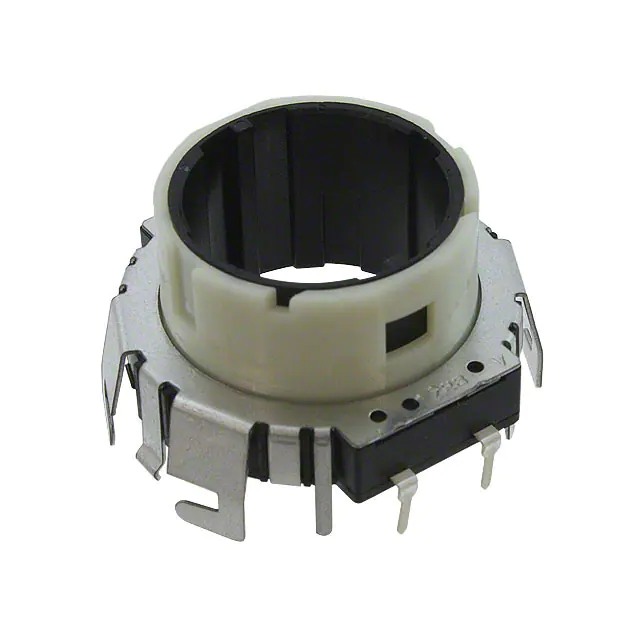

EVQ-V5H00415BROTARY ENCODER MECHANICAL 9PPR |
4,498 | - |
|
Datasheet | EVQV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
