Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-WK4001ROTARY ENCODER MECHANICAL 15PPR |
4,710 | - |
|
Datasheet | EVQWK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | Thumbwheel | Yes | Yes | PCB, Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
EVE-GA1F2012BROTARY ENCODER MECHANICAL 12PPR |
3,886 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

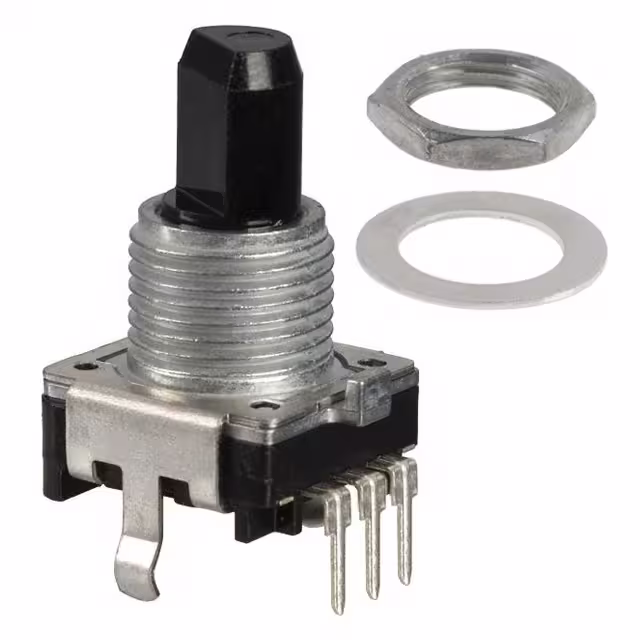

EVE-GC1F2012BROTARY ENCODER MECHANICAL 12PPR |
2,223 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-GE1F2012BROTARY ENCODER MECHANICAL 12PPR |
2,458 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-KC2F2024BROTARY ENCODER MECHANICAL 24PPR |
4,621 | - |
|
Datasheet | EVEK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
EVE-KE2F2024BROTARY ENCODER MECHANICAL 24PPR |
2,732 | - |
|
Datasheet | EVEK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

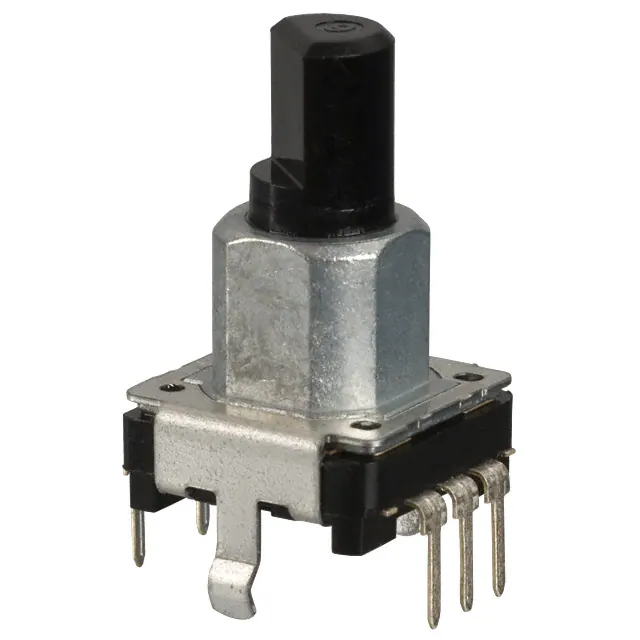

EVE-JBBF2020BROTARY ENCODER MECHANICAL 20PPR |
2,796 | - |
|
Datasheet | EVEJB | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

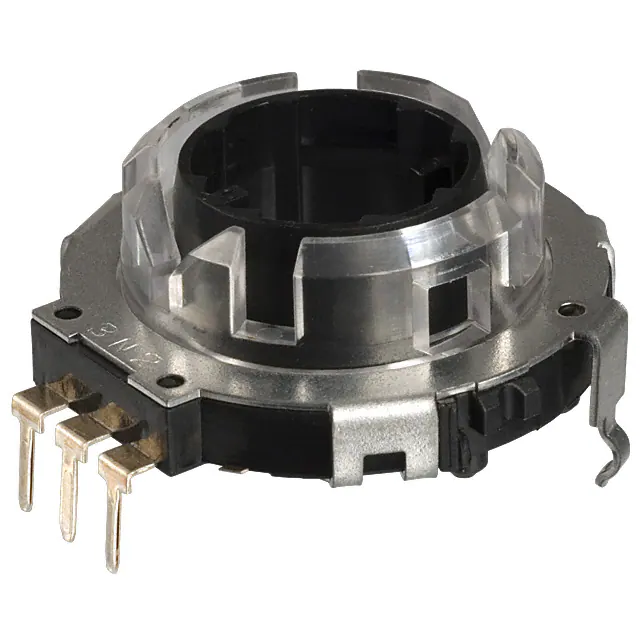

EVQ-1WF00210BROTARY ENCODER MECHANICAL 20PPR |
4,787 | - |
|
Datasheet | - | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 22mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

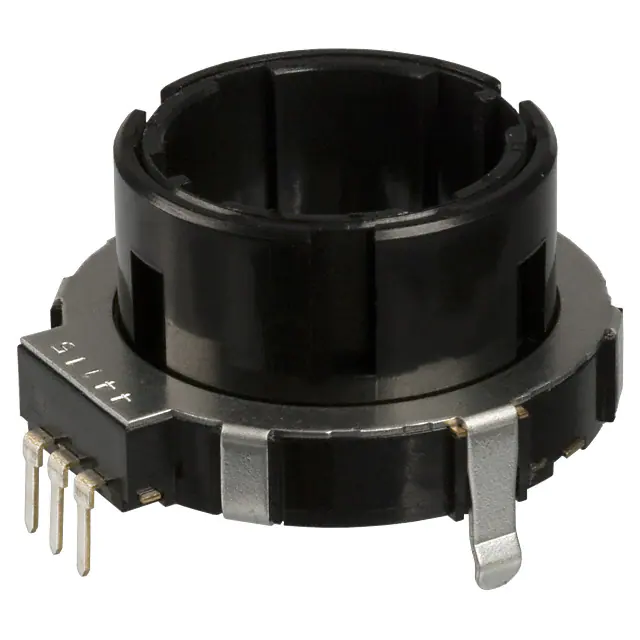

EVQ-WFP00415BROTARY ENCODER MECHANICAL 15PPR |
3,659 | - |
|
Datasheet | EVQWF | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 16.5mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-PDBRL408BROTARY ENCODER MECHANICAL 8PPR |
4,645 | - |
|
Datasheet | EVEP | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
