Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

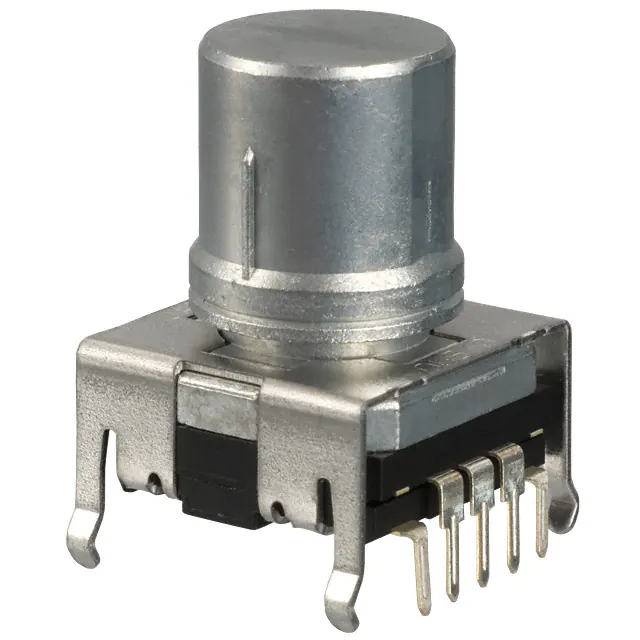

EVE-QDBRG516BROTARY ENCODER MECHANICAL 16PPR |
3,251 | - |
|
Datasheet | EVEQ | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

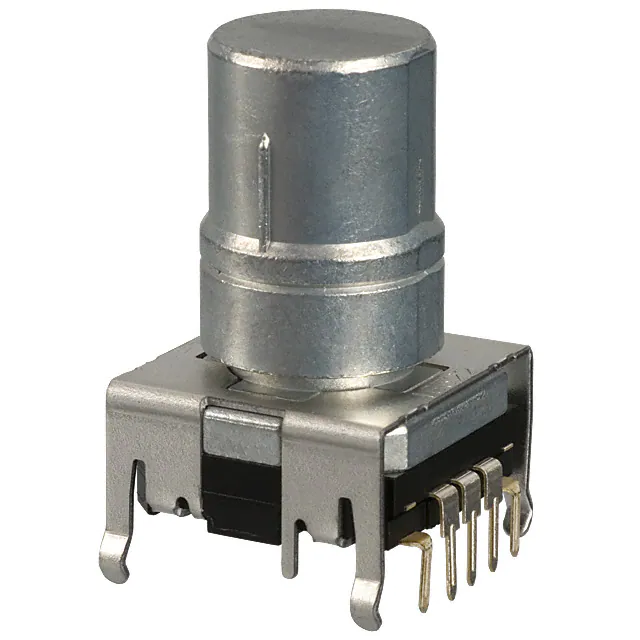

EVE-QDBRL416BROTARY ENCODER MECHANICAL 16PPR |
1,317 | - |
|
Datasheet | EVEQ | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-WEB00115BROTARY ENCODER MECHANICAL 15PPR |
3,836 | - |
|
Datasheet | EVQWEB | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 9mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

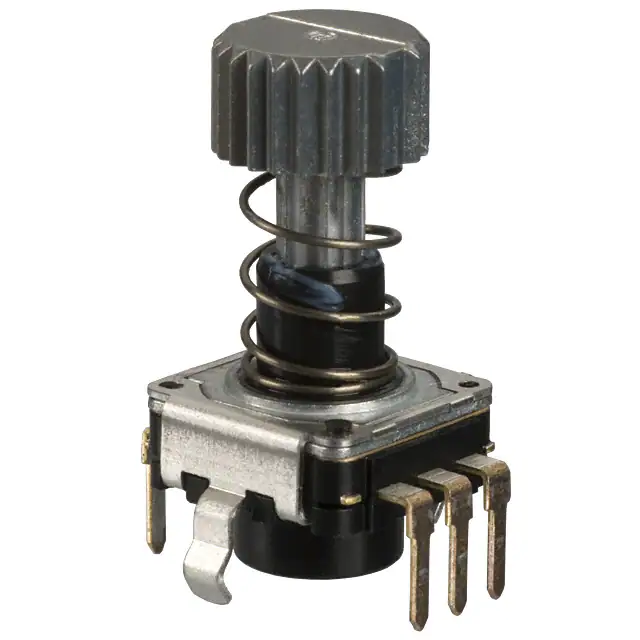

EVQ-WEH00115BROTARY ENCODER MECHANICAL 15PPR |
2,226 | - |
|
Datasheet | EVQWEH | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 9mm Dia Knurled End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
EVE-GC1F2024BROTARY ENCODER MECHANICAL 24PPR |
3,402 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V0B00115BROTARY ENCODER MECHANICAL 15PPR |
4,472 | - |
|
Datasheet | EVQV0 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 60mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-WK5001ROTARY ENCODER MECHANICAL 15PPR |
2,051 | - |
|
Datasheet | EVQWK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | Thumbwheel | Yes | Yes | PCB, Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
|
EVE-GA1F2224BROTARY ENCODER MECHANICAL 24PPR |
1,333 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-GC2F2524MROTARY ENCODER MECHANICAL 24PPR |
3,443 | - |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-KD2F3024MROTARY ENCODER MECHANICAL 24PPR |
2,353 | - |
|
Datasheet | EVEK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
