Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

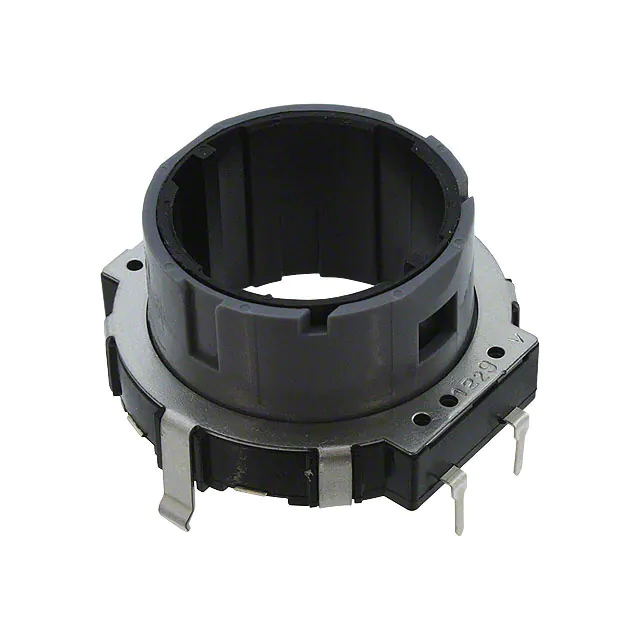

EVQ-V5B00215BROTARY ENCODER MECHANICAL 15PPR |
4,822 | - |
|
Datasheet | EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-VXC00112BROTARY ENCODER |
2,648 | - |
|
Datasheet | EVQ | Bulk | Not For New Designs | - | Mechanical | Quadrature (Incremental) | 12 | 10V | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EVQ-VXM00112BROTARY ENCODER |
2,294 | - |
|
Datasheet | EVQ | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 12 | 10V | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EVQ-VXD00112BROTARY ENCODER |
1,349 | - |
|
Datasheet | EVQ | Bulk | Not For New Designs | - | Mechanical | Quadrature (Incremental) | 12 | 10V | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVQ-VUA00112BROTARY ENCODER MECHANICAL 12PPR |
4,485 | - |
|
Datasheet | EVQVU | Tray | Discontinued at Digi-Key | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EVE-U11AH508BROTARY ENCODER |
2,870 | - |
|
Datasheet | EVE | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 8 | 10V | 8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

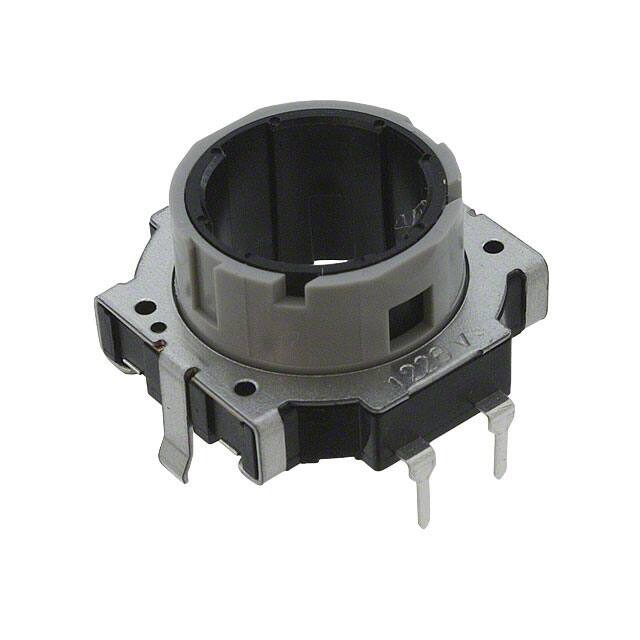

EVQ-V6A00609BROTARY ENCODER MECHANICAL 9PPR |
1,469 | - |
|
Datasheet | - | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 20mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5J00509BROTARY ENCODER |
4,727 | - |
|
Datasheet | EVQV | Bulk | Not For New Designs | - | Mechanical | Quadrature (Incremental) | 9 | 10V | 27mm Open Center | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YBCAJO16BROTARY ENCODER |
4,243 | - |
|
Datasheet | EVE | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 16 | 10V | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YECCG508BROTARY ENCODER |
2,426 | - |
|
Datasheet | EVE | Bulk | Active | - | Mechanical | Quadrature (Incremental) | 8 | 10V | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
