Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

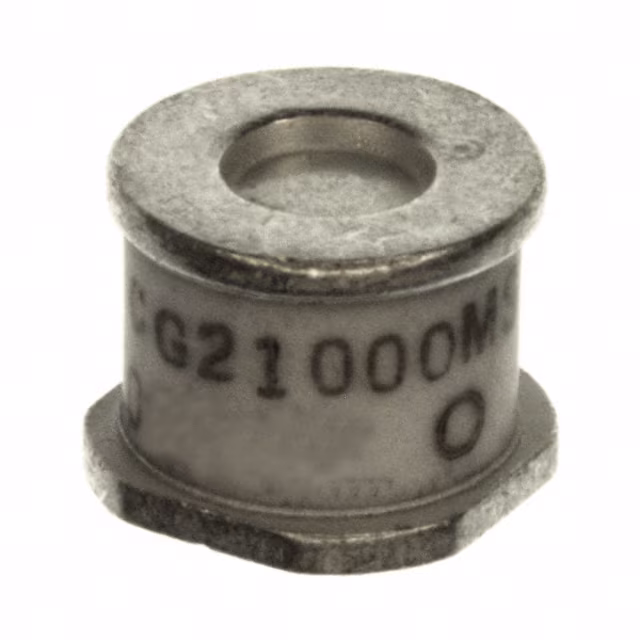

CG21000MSGDT 1000V 10000A 2 POLE SMD |
362 |
1+：$2.73600 5+：$2.26880 10+：$2.09360 50+：$1.73648 100+：$1.60168 250+：$1.46746 |
|
Datasheet | 2-SMD Cylinder Square End | CG2 | Tape & Reel (TR) | Active | 1000 V | 10000A (10kA) | - | 2 | No | Surface Mount |
|
AC240LGDT 600V 5KA 2 POLE THROUGH HOLE |
605 | - |
|
Datasheet | Axial Cylinder | AC | Tray | Active | 600 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
CG2470LGDT 470V 20KA 2 POLE TH |
204 | - |
|
Datasheet | Axial Cylinder | CG2 | Tray | Active | 470 V | 20000A (20kA) | - | 2 | No | Through Hole |
|
2030-42T-SM-RPLFGDT 360V 4KA 3 POLE SMD |
1,753 | - |
|
Datasheet | 3-SMD Cylinder Square End | Mini-TRIGARD™ 2030-SM | Tape & Reel (TR) | Active | 360 V | 4000A (4kA) | - | 3 | No | Surface Mount |
|
SL1021A200RFGDT 200V 10000A 3 POLE THT |
444 |
1+：$2.80000 5+：$2.32160 10+：$2.14240 50+：$1.77712 100+：$1.63920 250+：$1.47242 500+：$1.35698 1000+：$1.24994 5000+：$1.22980 |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | SL1021A | Tray | Active | 200 V | 10000A (10kA) | - | 3 | Yes | Through Hole |
|
CG5350LGDT 350V 5KA 2 POLE THROUGH HOLE |
2,304 | - |
|
Datasheet | Axial Cylinder | CG5 | Tape & Reel (TR) | Active | 350 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
CG75MSTRGDT 75V 20KA 2 POLE SMD |
4,612 | - |
|
Datasheet | 2-SMD Cylinder Square End | CG | Tape & Reel (TR) | Active | 75 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|

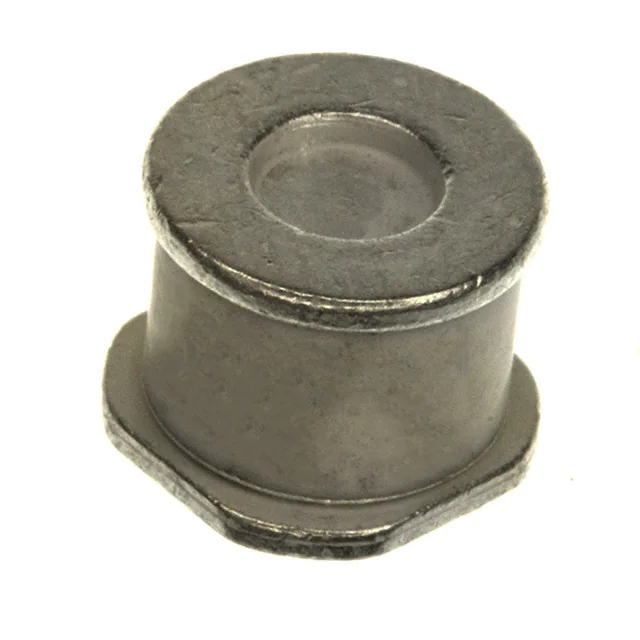

CG90MSGDT 90V 20KA 2 POLE SMD |
865 | - |
|
Datasheet | 2-SMD Cylinder Square End | CG | Tape & Reel (TR) | Active | 90 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|
|
CG2470MSGDT 470V 20KA 2 POLE SMD |
788 | - |
|
Datasheet | 2-SMD Cylinder Square End | CG2 | Tape & Reel (TR) | Active | 470 V | 20000A (20kA) | - | 2 | No | Surface Mount |
|
SA2-7200-CLB-STDGDT 7200V 5KA 2 POLE TH |
796 | - |
|
Datasheet | Axial Cylinder | SA2 | Bulk | Active | 7200 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
SL1011A600AGDT 600V 5KA 2 POLE THROUGH HOLE |
725 | - |
|
Datasheet | Axial Cylinder | SL1011A | Tape & Reel (TR) | Active | 600 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
|
CG2800LGDT 800V 10KA 2 POLE TH |
809 | - |
|
Datasheet | Axial Cylinder | CG2 | Tray | Active | 800 V | 10000A (10kA) | - | 2 | No | Through Hole |
|
2026-35-C2FLFGDT 350V 20KA 3 POLE TH |
325 | - |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | TRIGARD® 2026 | Bulk | Active | 350 V | 20000A (20kA) | ±20% | 3 | Yes | Through Hole |
|
CG32.0LGDT 2000V 5KA 2 POLE TH |
1,231 | - |
|
Datasheet | Axial Cylinder | CG3 | Tray | Active | 2000 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
|
CG35.0LGDT 5000V 5KA 2 POLE TH |
200 | - |
|
Datasheet | Axial Cylinder | CG3 | Tray | Active | 5000 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
|
CG37.5LD004GDT 7500V 5KA 2 POLE TH |
844 | - |
|
Datasheet | Axial Cylinder | CG3 | Tray | Active | 7500 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
|
CG32.7LTRGDT 2700V 5KA 2 POLE TH |
480 | - |
|
Datasheet | Axial Cylinder | CG3 | Tape & Reel (TR) | Active | 2700 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
2020-15T-C2LFGDT 60V 10KA 3 POLE THROUGH HOLE |
220 | - |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | 2020T | Tray | Active | 60 V | 10000A (10kA) | - | 3 | No | Through Hole |
|
B88069X6990B102GDT 650V 20KA 3 POLE TH |
1,214 | - |
|
Datasheet | Axial Cylinder, 3 Lead (Radial Bend) | T6x | Bulk | Active | 650 V | 20000A (20kA) | - | 3 | No | Through Hole |
|
B88069X7700B102GDT 400V 20KA 3 POLE TH |
816 | - |
|
Datasheet | Axial Cylinder, 3 Lead (T-Shape) | T6x | Bulk | Active | 400 V | 20000A (20kA) | ±25% | 3 | No | Through Hole |
