Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2095-300-BLFGDT 3000V 5KA 2 POLE TH |
1,311 | - |
|
Datasheet | Axial Cylinder | 2095 | Bulk | Active | 3000 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
|
2095-450-BLFGDT 4500V 5000A 2 POLE THT |
806 |
1+：$1.33600 5+：$1.10720 10+：$1.02080 50+：$0.84704 100+：$0.78152 250+：$0.70230 500+：$0.64754 1000+：$0.59678 5000+：$0.49267 |
|
Datasheet | Axial Cylinder | 2095 | Tray | Active | 4500 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
2027-20-BLFGDT 200V 10KA 2 POLE TH |
963 | - |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 200 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2027-30-BLFGDT 300V 10KA 2 POLE TH |
341 | - |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 300 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2095-600-CLFGDT 6000V 5KA 2 POLE TH |
894 | - |
|
Datasheet | Axial Cylinder | 2095 | Bulk | Active | 6000 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
|
2095-500-CLFGDT 5000V 5KA 2 POLE TH |
382 | - |
|
Datasheet | Axial Cylinder | 2095 | Bulk | Active | 5000 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
B88069X3500T502GDT 1400V 10KA 2 POLE TH |
3,323 | - |
|
Datasheet | Axial Cylinder | A71 | Tape & Reel (TR) | Active | 1400 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|
|
2027-60-BLFGDT 600V 10KA 2 POLE TH |
473 | - |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 600 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
B88069X9731T303GDT 200V 500A 2 POLE SMD |
5,435 | - |
|
Datasheet | 1206 (3216 Metric) | S20 | Tape & Reel (TR) | Active | 200 V | 500A | ±30% | 2 | No | Surface Mount |
|
B88069X4920S102GDT 350V 10KA 2 POLE TH |
2,080 | - |
|
Datasheet | Axial Cylinder | N81 | Bulk | Active | 350 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|
|
2027-47-BLFGDT 470V 10KA 2 POLE TH |
1,110 | - |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 470 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
2027-09-BLFGDT 90V 10KA 2 POLE THROUGH HOLE |
790 | - |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 90 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|
CG43.0SMGDT 3000V 3KA 2 POLE SMD |
950 | - |
|
Datasheet | 2-SMD Cylinder Square End | CG4 | Tape & Reel (TR) | Active | 3000 V | 3000A (3kA) | - | 2 | No | Surface Mount |
|
|
2027-23-BT1LFGDT 230V 10KA 2 POLE TH |
1,775 | - |
|
Datasheet | Axial Cylinder | 2027 | Tape & Reel (TR) | Active | 230 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
B88069X4880S102GDT 90V 10KA 2 POLE THROUGH HOLE |
6,460 | - |
|
Datasheet | Axial Cylinder | N81 | Strip | Active | 90 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|

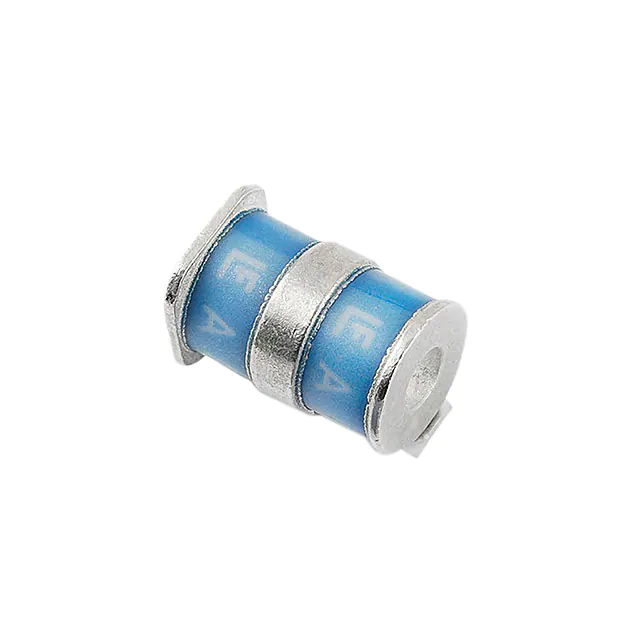

SL1010A090SMGDT 90V 5KA 3 POLE SURFACE MOUNT |
14,152 | - |
|
Datasheet | 3-SMD Cylinder Square End | SL1010A | Tape & Reel (TR) | Active | 90 V | 5000A (5kA) | - | 3 | No | Surface Mount |
|
B88069X5080S102GDT 400V 5KA 2 POLE THROUGH HOLE |
1,074 | - |
|
Datasheet | Axial Cylinder | EF | Strip | Active | 400 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
B88069X2641S102GDT 800V 5000A 2 POLE THT |
6 |
1+：$2.03200 5+：$1.68160 10+：$1.55200 50+：$1.28736 100+：$1.18760 300+：$1.04450 500+：$0.98366 1000+：$0.90637 5000+：$0.76394 |
|
Datasheet | Axial Cylinder | EF | Strip | Active | 680 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
B88069X0180T502GDT 75V 5KA 2 POLE THROUGH HOLE |
2,019 | - |
|
Datasheet | Axial Cylinder | EC | Tape & Reel (TR) | Active | 75 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
B88069X6561B502GDT 1000V 2KA 2 POLE TH |
1,723 | - |
|
Datasheet | Axial Cylinder | ES | Tray | Active | 1000 V | 2000A (2kA) | ±10% | 2 | No | Through Hole |
