LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LE A P3W 01-TXUX-23LED MOD OSRAM OSTAR AMBER RECT |
3,241 | - |
|
Datasheet | OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 4000lm (Typ) | 36A | 25°C | 3.35V | 33 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
LZC-70GW00-0430LED MOD LZC WM WH STARBRD 3000K |
1,999 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1400lm (1085lm ~ 1696lm) | 700mA | 25°C | 38.8V | 52 lm/W | 1.2A | 95 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
LZC-C0GW00-0430LED MOD LZC WM WH STARBRD 3000K |
4,407 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1400lm (1085lm ~ 1696lm) | 2 x 700mA | 25°C | 19.4V | 52 lm/W | - | 95 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
LZC-B3MD07-0000LED MOD LZC RGBW STARBRD 5500K |
1,601 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 5500K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 240lm Red, 318lm Green, 89lm Blue, 525lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White | 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 71 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 | 95° | - | 28.00mm Dia | 6.80mm | 8.20mm Dia | Domed |
|

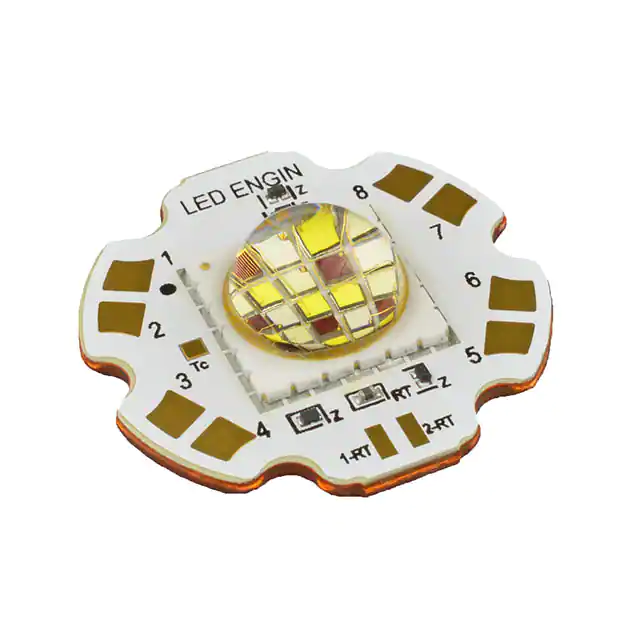

LZP-L0MD00-0000LED MOD LUXIGEN STARBRD 6335K |
1,911 | - |
|
Datasheet | LuxiGen™ | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6335K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 770lm Red, 925lm Green, 221lm Blue, 1605lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 15V Red, 21.6V Green, 19.2V Blue, 22.4V White | 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 (Typ) | 125° | - | 27.60mm Dia | 7.60mm | 10.50mm Dia | Domed |
|
LZC-C0CW0R-0055LED MOD LZC WHT STARBOARD 5500K |
3,314 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 2554lm (1908lm ~ 3200lm) | 2 x 700mA | 25°C | 18.9V | 97 lm/W | 1A | 70 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
LE AB A2A-HMJB-1+DWFW-1LED MULTI CHIP ON BRD AMBER/BLUE |
2,761 | - |
|
Datasheet | - | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | 29.50mm L x 15.00mm W | 6.40mm | - | - |
|

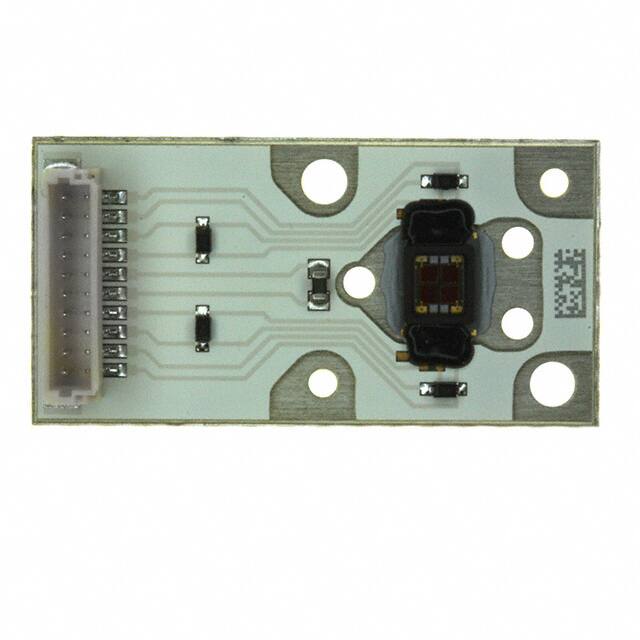

LE A A2A-HBKB-1LED MOD OSTAR AMBER RECT |
3,794 | - |
|
Datasheet | Ostar | Tray | Obsolete | LED Module | Amber | - | 617nm | Rectangle | 210lm (120lm ~ 300lm) | 750mA | 25°C | 2.9V | 97 lm/W | 750mA | - | 120° | With Connector | 29.50mm L x 5.00mm W | 6.20mm | 2.03mm L x 4.20mm W | Flat |
|

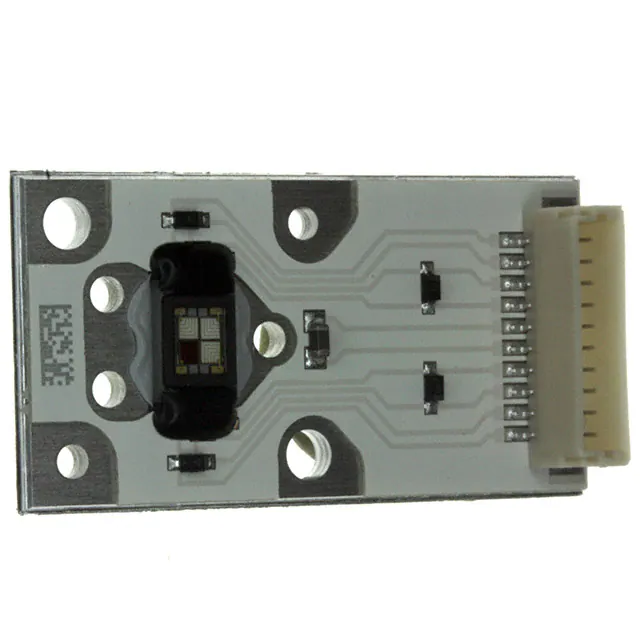

LE ATB A2ALED MOD OSTAR AMB/BLU/GRN RECT |
1,685 | - |
|
Datasheet | Ostar | Tray | Obsolete | LED Module | Amber, Blue, Green | - | 617nm Amber, 464nm Blue, 525nm Green | Rectangle | 55lm (Typ) Amber, 11lm (Typ) Blue, 86lm (Typ) Green | 1A | 25°C | 2.9V Amber, 3.5V Blue, 3.5V Green | 25 lm/W Amber, 6 lm /W Blue, 49 lm/W Green | 750mA Amber, 700mA Blue, 700mA Green | - | 120° | With Connector | 29.50mm L x 15.00mm W | 6.05mm | 2.03mm L x 4.20mm W | Flat |
|
|
LE B A2A-EWJW-23LED OSTAR PROJ 4CHIP BLUE |
4,045 | - |
|
Datasheet | Ostar | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
