LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZC-70NW0R-0040LED MOD LZC WHT STARBOARD 4000K |
4,620 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 1908lm (1696lm ~ 2120lm) | 700mA | 25°C | 37.8V | 72 lm/W | 1A | 82 (Typ) | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
LZC-70WW0R-0030LED MOD LZC WM WH STARBRD 3000K |
3,592 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1854lm (1357lm ~ 2350lm) | 700mA | 25°C | 37.8V | 70 lm/W | 1A | 85 (Typ) | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|

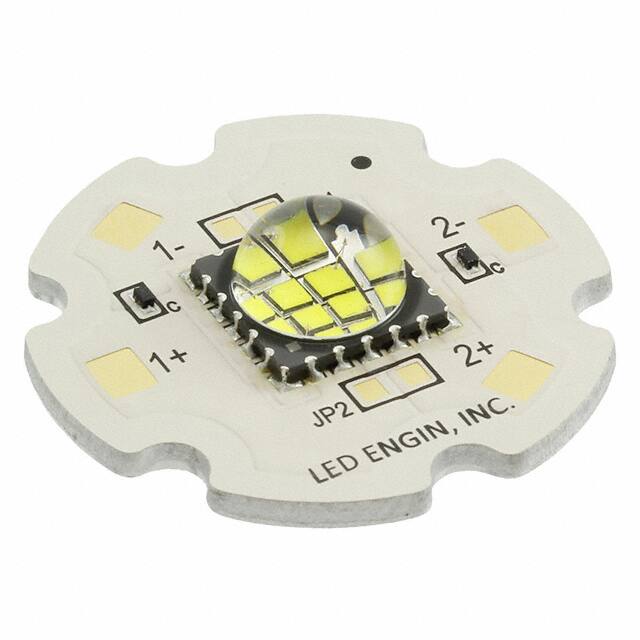

LZC-C0WW0R-0030LED MOD LZC WM WH STARBRD 3000K |
3,100 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1900lm (1357lm ~ 2350lm) | 2 x 700mA | 25°C | 18.9V | 140 lm/W | 1A | 85 (Typ) | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
LZ9-M0GW00-0430LED MOD LZ9 WM WH STARBRD 3000K |
4,306 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1060lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 52 lm/W | 800mA | 95 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0GW00-0430LED MOD LZ9 WM WH STARBRD 3000K |
4,346 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1060lm (868lm ~ 1357lm) | 700mA | 25°C | 29.1V | 52 lm/W | 800mA | 95 | 115° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZC-70CW00-0056LED MOD LZC WHT STARBOARD 6500K |
1,000 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Cool | 5500K ~ 6500K | - | Starboard | 1908lm (1696lm ~ 2120lm) | 700mA | 25°C | 42V | 65 lm/W | 1A | 70 (Typ) | 110° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70WW00-0230LED MOD LZC WM WH STARBRD 3000K |
1,273 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1603lm (1085lm ~ 2120lm) | 700mA | 25°C | 42V | 55 lm/W | 1A | 85 (Typ) | 110° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70WW00-0235LED MOD LZC WM WH STARBRD 3500K |
2,363 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1603lm (1085lm ~ 2120lm) | 700mA | 25°C | 42V | 55 lm/W | 1A | 85 (Typ) | 110° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-C0CW00-0056LED MOD LZC WHT STARBOARD 6500K |
3,000 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 1908lm (1696lm ~ 2120lm) | 700mA | 25°C | 42V | 65 lm/W | 1A | 70 (Typ) | 110° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-C0WW00-0230LED MOD LZC WM WH STARBRD 3000K |
2,909 | - |
|
Datasheet | LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1603lm (1085lm ~ 2120lm) | 700mA | 25°C | 42V | 55 lm/W | 1A | 85 (Typ) | 110° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
