LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ7-N4MU00-0000LED MOD LUXIGEN MULTI RECT |
2,265 | - |
|
Datasheet | LuxiGen™ | Tray | Active | LED Module | Amber, Blue, Cyan, Green, Red, Violet, White - Cool | 6500K | 457nm Blue, 500nm Cyan, 525nm Green, 624nm Red, 395nm Violet | Rectangle | 96lm Amber, 24lm Blue, 101lm Cyan, 133lm Green, 83lm Red, 900mW Violet, 208lm White | 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White | 25°C | 3.3V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White | 42 lm/W Amber, 10 lm/W Blue, 42 lm/W Cyan, 51 lm/W Green, 47 lm/W Red, 90 lm/W White | 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White | 75 (Typ) | 120° | - | 38.30mm L x 31.20mm W | 2.41mm | - | Flat |
|
|
LZ9-M0SW00-0000LED MOD LZ9 WHT STARBOARD 5300K |
1,893 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 88 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0427LED MOD LZ9 WM WH STARBRD 2700K |
4,272 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0430LED MOD LZ9 WM WH STARBRD 3000K |
2,681 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0435LED MOD LZ9 WM WH STARBRD 3500K |
3,588 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0427LED MOD LZ9 WM WH STARBRD 2700K |
3,018 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0430LED MOD LZ9 WM WH STARBRD 3000K |
2,905 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0435LED MOD LZ9 WM WH STARBRD 3500K |
4,469 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0SW00-0000LED MOD LZ9 WHT STARBOARD 5300K |
2,280 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 88 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|

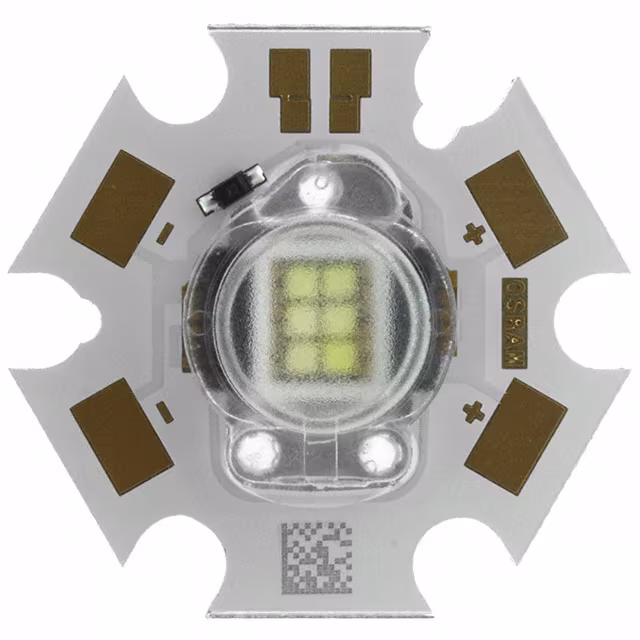

LE UW E3B-PZQZ-4C8FLED MOD OSTAR WHT STARBRD 6500K |
2,873 | - |
|
Datasheet | Ostar | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 865lm (610lm ~ 1120lm) | 700mA | 25°C | 20.8V | 59 lm/W | 1A | - | 130° | - | 19.90mm Dia | 5.25mm | 2.00mm Dia | Flat |
