LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW KAHNB1.EM-TUUQ-27S3-1050-T02LED COB SOLERIQ WHT SQ 2700K |
2,919 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4695lm (4190lm ~ 5200lm) | 1.05A | 85°C | 44V | 102 lm/W | 1.4A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.EM-UPUR-35S3-1050-T02LED COB SOLERIQ WHT SQ 3500K |
1,527 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 5065lm (4500lm ~ 5630lm) | 1.05A | 85°C | 44V | 110 lm/W | 1.4A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB2.PM-TSTT-65S3-T02LED COB SOLERIQ WHT SQ 6500K |
3,619 | - |
|
Datasheet | SOLERIQ® S 19 | Bulk | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 3890lm (3590lm ~ 4190lm) | 700mA | 85°C | 34.8V | 160 lm/W | 1.92A | 70 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TSTU-27S3-T02LED COB SOLERIQ WHT SQ 2700K |
3,794 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4045lm (3590lm ~ 4500lm) | 1.05A | 85°C | 44V | 88 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TSTU-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
4,349 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4045lm (3590lm ~ 4500lm) | 1.05A | 85°C | 44V | 88 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
LE A P2W-SYTX-23-0-F00-T01LED MOD OSRAM OSTAR AMBER RECT |
2,886 | - |
|
Datasheet | OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 2600lm (Typ) | 24A | 25°C | 3.35V | 32 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|

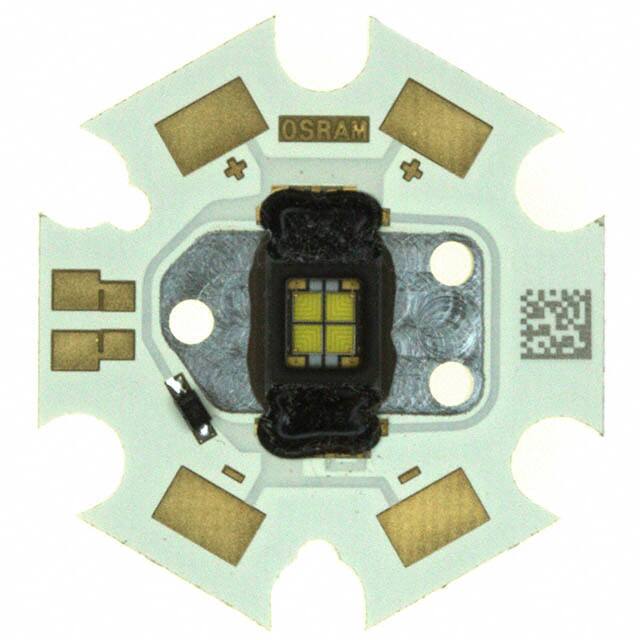

LE W E2A-LZNY-6K8LLED MOD OSTAR WHT STARBRD 5600K |
2,333 | - |
|
Datasheet | Ostar | Tray | Obsolete | LED Module | White, Cool | 5600K | - | Starboard | - | 700mA | 25°C | 14V | - | 1A | 80 | 120° | - | 19.90mm Dia | 2.53mm | 2.11mm L x 2.11mm W | Flat |
|
|
GW KAHNB1.CM-TTUP-35S3-T02LED COB SOLERIQ WHT SQ 3500K |
1,755 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 4370lm (3900lm ~ 4840lm) | 1.05A | 85°C | 44V | 95 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
LE A P2W 01-SYTX-23LED MOD OSRAM OSTAR AMBER RECT |
2,369 | - |
|
Datasheet | OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 2700lm (Typ) | 12A | 25°C | 3.35V | 67 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
|
LZ9-M0NW00-0040LED MOD LZ9 WHT STARBOARD 4000K |
3,891 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
