LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ9-M0GW00-0028LED MOD LUXIGEN WH STARBRD 2850K |
4,982 | - |
|
Datasheet | LuxiGen™ LZ9 | Tray | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 1113lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 55 lm/W | 1.06A | 98 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|

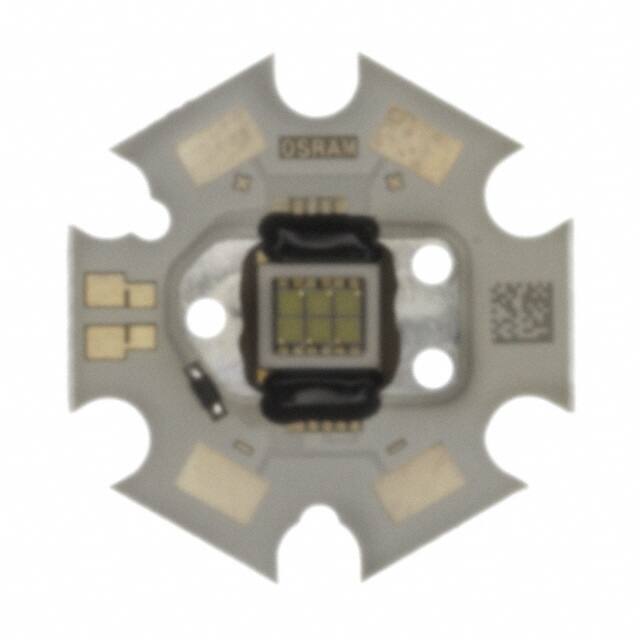

LE W E3A-MZPX-6K8LLED MOD OSTAR WHT STARBRD 5600K |
1,563 | - |
|
Datasheet | Ostar | Tray | Obsolete | LED Module | White, Cool | 5600K | - | Starboard | 380lm (240lm ~ 520lm) | 700mA | 25°C | 20.8V | 26 lm/W | 1A | 80 | 120° | - | 19.90mm Dia | 2.53mm | 2.11mm L x 2.11mm W | Flat |
|
|
LZ9-M0CW00-0056LED MOD LZ9 WHT STARBOARD 6500K |
3,358 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Cool | 5500K ~ 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0227LED MOD LZ9 WM WH STARBRD 2700K |
3,022 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0230LED MOD LZ9 WM WH STARBRD 3000K |
4,033 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-M0WW00-0235LED MOD LZ9 WM WH STARBRD 3500K |
2,100 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0CW00-0056LED MOD LZ9 WHT STARBOARD 6500K |
3,763 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Cool | 5500K ~ 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 85 lm/W | 1.8A | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0227LED MOD LZ9 WM WH STARBRD 2700K |
2,494 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0230LED MOD LZ9 WM WH STARBRD 3000K |
4,182 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0235LED MOD LZ9 WM WH STARBRD 3500K |
4,426 | - |
|
Datasheet | LZ9 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
