Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

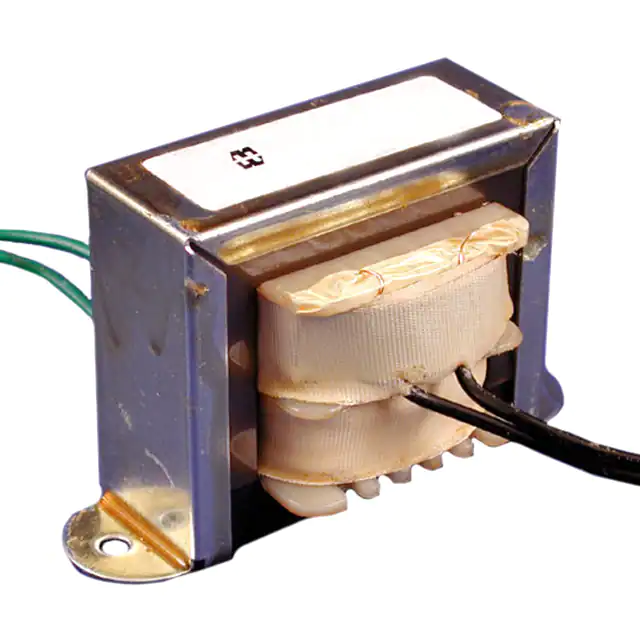

166F12DPWR XFMR LAMINATED 4.2VA CHAS MT |
4,119 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 117V | 12V | 350mA | Single | Single | Yes | 4.2VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
|
185C20PWR XFMR LAMINATED 25VA CHAS MT |
3,445 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
166F14PWR XFMR LAMINATED 3.5VA CHAS MT |
4,824 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 14V | 250mA | Single | Single | Yes | 3.5VA | Chassis Mount | Wire Leads | 60.45mm L x 34.29mm W | 36.32mm | 2000Vrms | 0.4 lb (181.44 g) |
|
164H120PWR XFMR LAMINATED 20VA TH |
2,601 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 320mA, Series 160mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
|
164H10PWR XFMR LAMINATED 20VA TH |
1,875 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
|
185C12PWR XFMR LAMINATED 25VA CHAS MT |
1,322 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
185C16PWR XFMR LAMINATED 25VA CHAS MT |
4,593 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
166L10PWR XFMR LAMINATED 20VA CHAS MT |
2,189 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 10V | 2A | Single | Single | Yes | 20VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1.2 lbs (544.3 g) |
|
186C24PWR XFMR LAMINATED 12VA CHAS MT |
4,429 | - |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 24V | 500mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms | 0.67 lb (303.91 g) |
|
|
187E16PWR XFMR LAMINATED 56VA CHAS MT |
3,131 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
