Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
167P50PWR XFMR LAMINATED 250VA CHAS MT |
2,956 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 50V | 5A | Single | Single | Yes | 250VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 8.5 lbs (3.9 kg) |
|
291BXPWR XFMR LAMINATED CHAS MT |
1,851 | - |
|
Datasheet | 291 | Box | Active | Laminated Core | 120V | 660V, 6V, 5V | 138mA, 3A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 71.45mm L x 103.20mm W | 87.33mm | - | 5.4 lbs (2.4 kg) |
|
|
167N70PWR XFMR LAMINATED 280VA CHAS MT |
3,258 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 70V | 4A | Single | Single | Yes | 280VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 8.4 lbs (3.8 kg) |
|
226TPWR XFMR SEMI-TORO 20VA TH |
1,774 | - |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 20V, Series 40V | Parallel 1A, Series 500mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|
|
226PPWR XFMR SEMI-TORO 20VA TH |
2,207 | - |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 26V, Series 13V | Parallel 1.54A, Series 770mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|

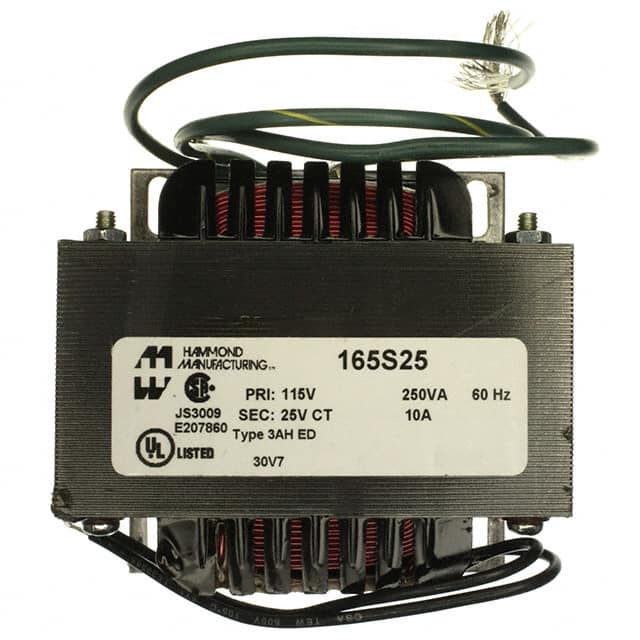

165S25PWR XFMR LAMINATED 250VA CHAS MT |
3,475 | - |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 25V | 10A | Single | Single | Yes | 250VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 79.50mm | 2000Vrms | 5.5 lbs (2.5 kg) |
|
165P60PWR XFMR LAMINATED 300VA CHAS MT |
4,258 | - |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 60V | 5A | Single | Single | Yes | 300VA | Chassis Mount | Wire Leads | 114.30mm L x 88.90mm W | 95.25mm | 2000Vrms | 9 lbs (4.1 kg) |
|
370CAXPWR XFMR LAMINATED 66VA CHAS MT |
1,670 | - |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 500V, 6.3V, 5V | 81mA, 2.5A, 2A | Dual, Multiple Taps | Four | Yes | 66VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
|
167N80PWR XFMR LAMINATED 320VA CHAS MT |
2,575 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 80V | 4A | Single | Single | Yes | 320VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 12 lbs (5.4 kg) |
|
274BXPWR XFMR LAMINATED 198VA CHAS MT |
2,075 | - |
|
Datasheet | 274 | Bulk | Active | Laminated Core | 115V | 750V, 6.3V, 5V | 201mA, 6A, 3A | Single | Triple | Yes | 198VA | Chassis Mount | Wire Leads | 79.50mm L x 101.60mm W | 96.77mm | 2000Vrms | 6.8 lbs (3.1 kg) |
