Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

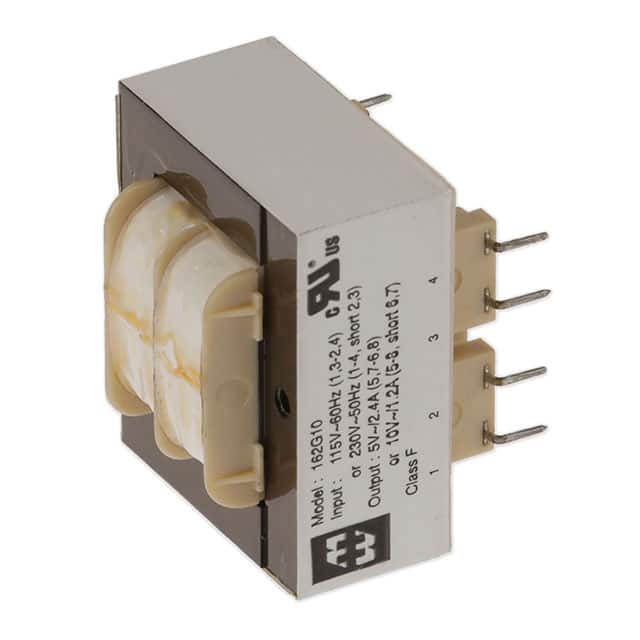

162G10PWR XFMR LAMINATED 12VA TH |
4,416 | - |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms | 0.7 lb (317.51 g) |
|
162J20PWR XFMR LAMINATED 36VA TH |
4,535 | - |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
186E20PWR XFMR LAMINATED 56VA CHAS MT |
2,030 | - |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms | 1.8 lbs (816.5 g) |
|
229D34PWR XFMR SEMI-TORO 48VA TH |
1,037 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
164J20PWR XFMR LAMINATED 36VA TH |
3,429 | - |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
166E20PWR XFMR LAMINATED 3VA CHAS MT |
3,130 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 20V | 150mA | Single | Single | Yes | 3VA | Chassis Mount | Wire Leads | 52.32mm L x 35.05mm W | 30.23mm | 2000Vrms | 0.3 lb (136.08 g) |
|
185D28PWR XFMR LAMINATED 43VA CHAS MT |
3,558 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
167Q6PWR XFMR LAMINATED 37.8VA CHAS |
3,607 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 55.63mm L x 60.45mm W | 59.94mm | 2000Vrms | 1.4 lbs (635 g) |
|
266PA14PWR XFMR LAMINATED 84VA CHAS MT |
1,374 | - |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 7V, Series 14V | Parallel 12A, Series 6A | Dual | Dual | No | 84VA | Chassis Mount | Wire Leads | 71.37mm L x 72.39mm W | 87.38mm | 2000Vrms | 4 lbs (1.8 kg) |
|
165U11PWR XFMR LAMINATED 165VA CHAS MT |
4,609 | - |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 11V | 15A | Single | Single | Yes | 165VA | Chassis Mount | Wire Leads | 95.25mm L x 82.55mm W | 79.50mm | 2000Vrms | 5.5 lbs (2.5 kg) |
