Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B15AA5G40-HASWITCH PUSH SPDT 0.4VA 28V |
1,832 | - |
|
Datasheet | M2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15RKG03NSWITCH PUSH SPDT 0.4VA 28V |
1,788 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

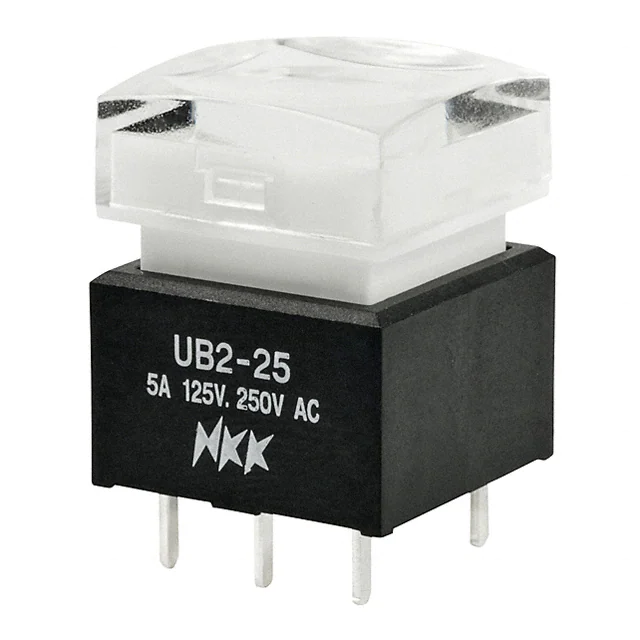

UB225SKW03N-4JBSWITCH PUSHBUTTON DPDT 5A 125V |
1,583 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|

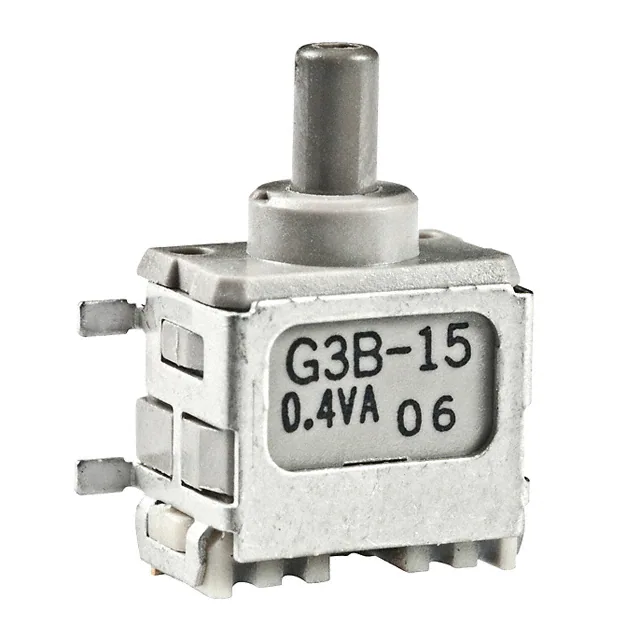

G3B15AHSWITCH PUSH SPDT 0.4VA 28V |
4,748 | - |
|
Datasheet | G3B | Tray | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
EB2061G-BCSWITCH PUSH DPDT 0.4VA 28V |
3,805 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
AB25AH-FASWITCH PUSH DPDT 0.4VA 28V |
2,043 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
G3B25AH-XCSWITCH PUSH DPDT 0.4VA 28V |
3,052 | - |
|
Datasheet | G3B | Tray | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
GB25AV-XASWITCH PUSH DPDT 0.4VA 28V |
1,710 | - |
|
Datasheet | GB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

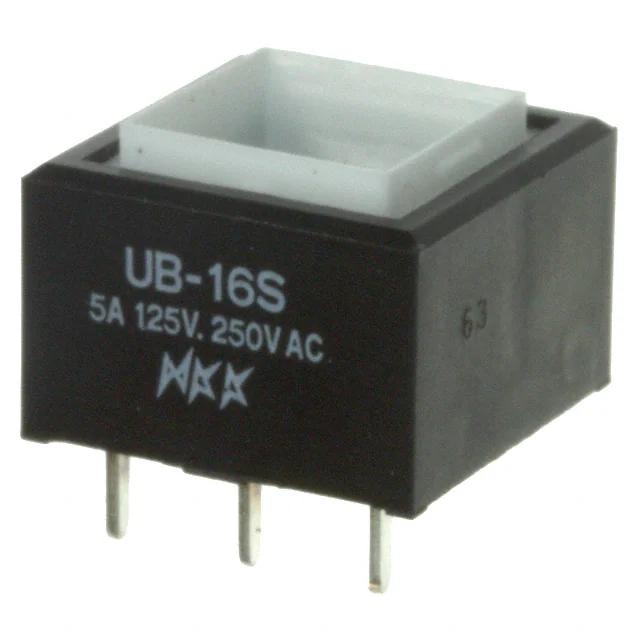

UB16SKW03NSWITCH PUSHBUTTON SPDT 5A 125V |
2,446 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
LP0115CMKW015DASWITCH PUSHBUTTON SPDT 3A 125V |
1,566 | - |
|
Datasheet | LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
