Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2511BSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,092 | - |
|
Datasheet | DB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|

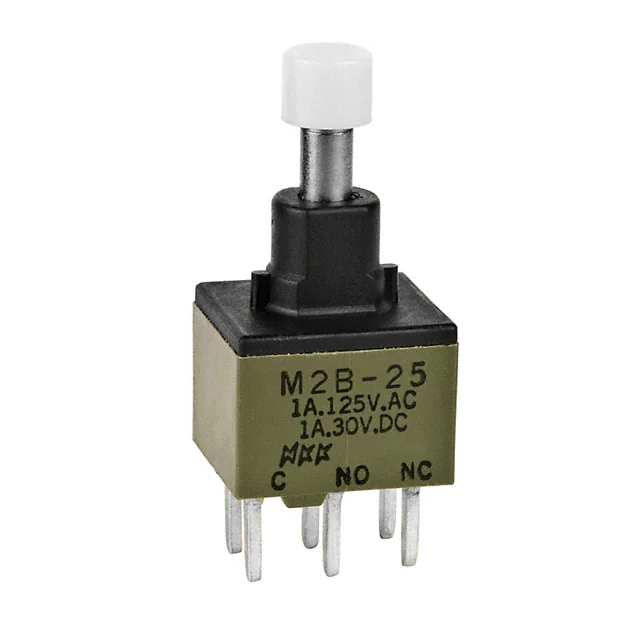

M2B25AA5W03-FBSWITCH PUSHBUTTON DPDT 1A 125V |
3,395 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

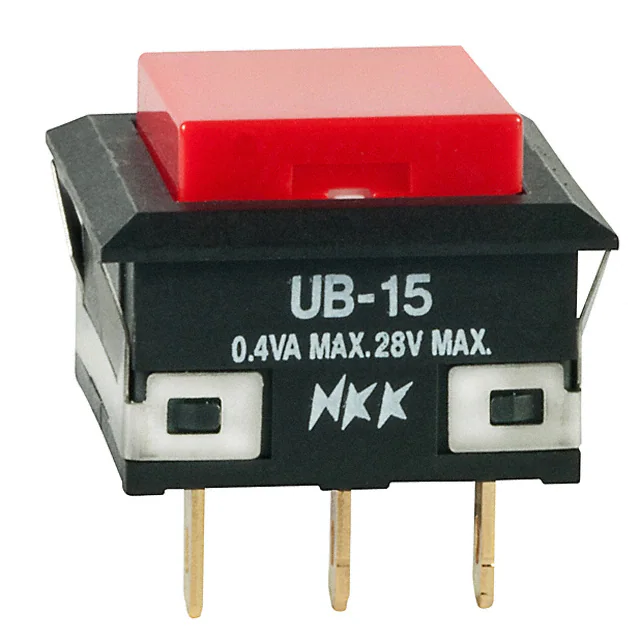

UB15KKG01N-CSWITCH PUSH SPDT 0.4VA 28V |
1,900 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

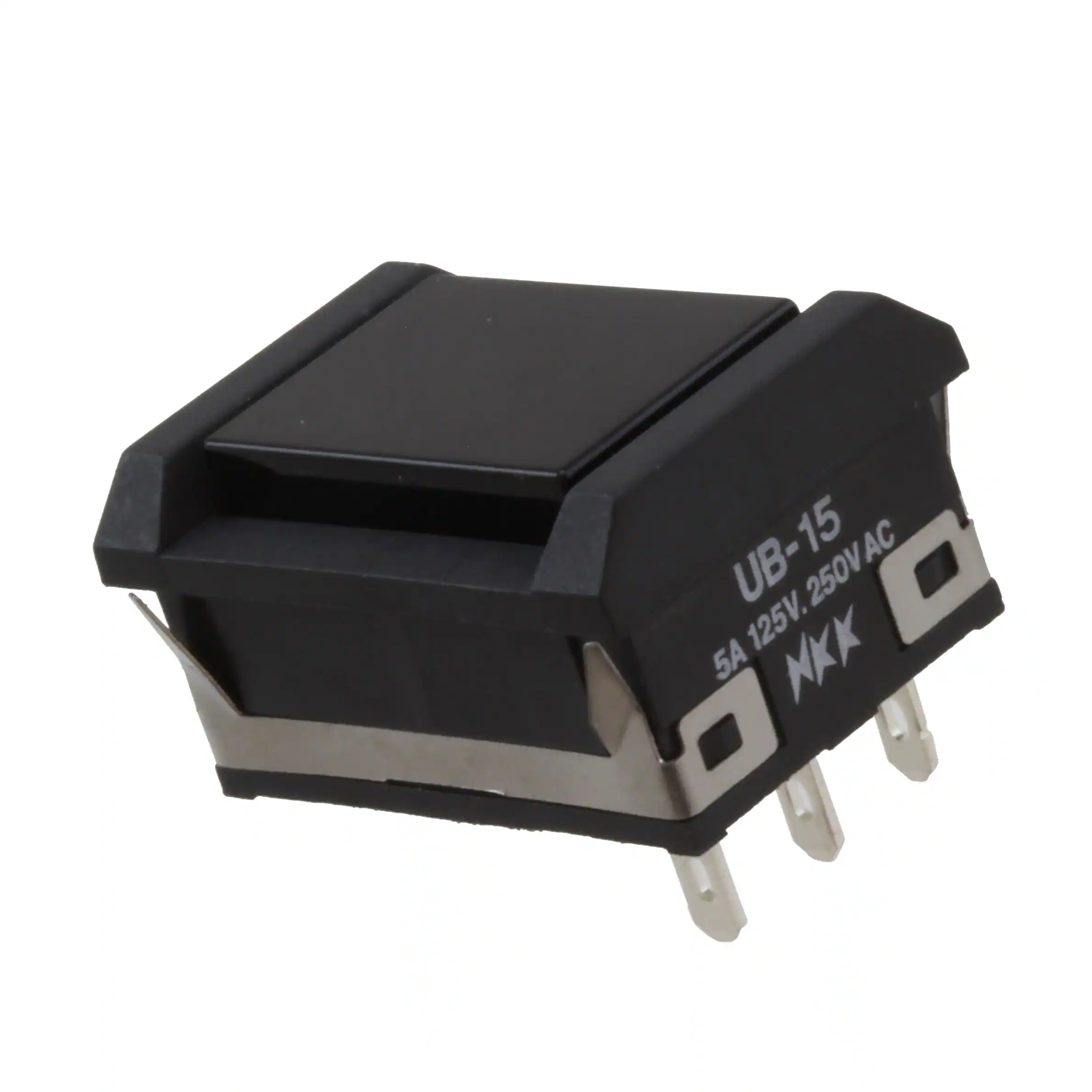

UB15NBKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
3,031 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

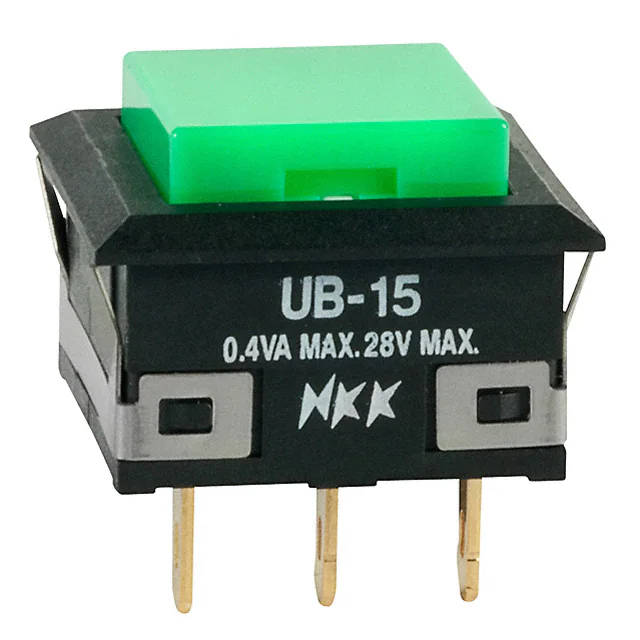

UB15KKG01N-FSWITCH PUSH SPDT 0.4VA 28V |
3,443 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

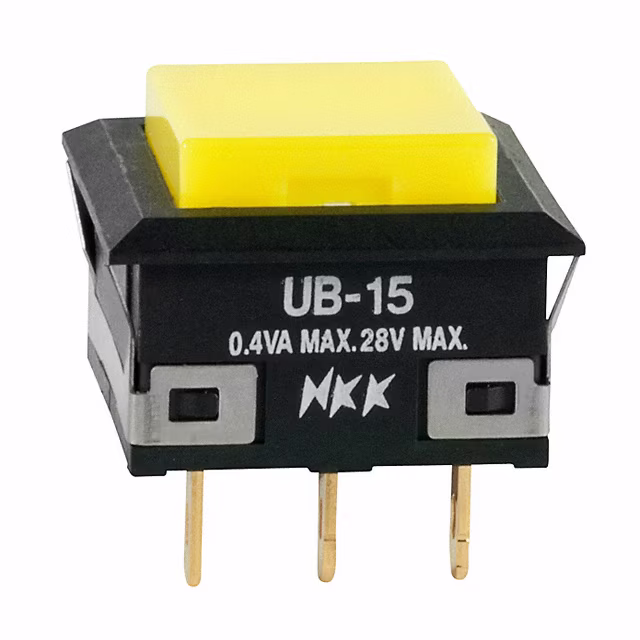

UB15KKG01N-ESWITCH PUSH SPDT 0.4VA 28V |
4,845 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Yellow | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

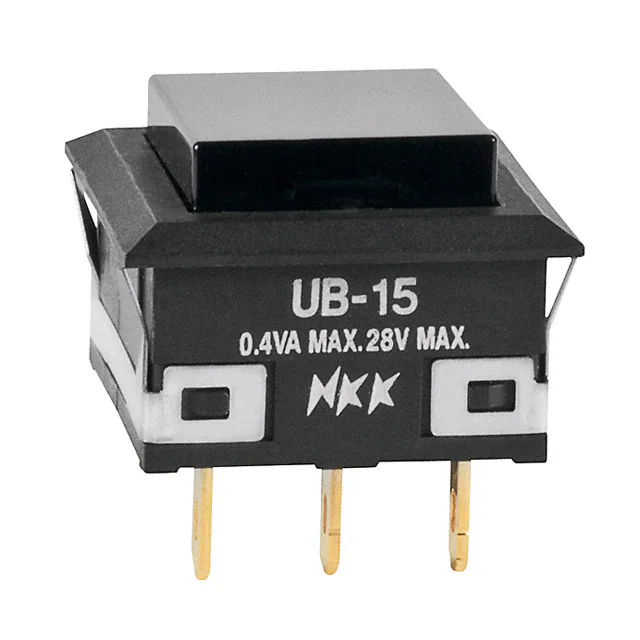

UB15KKG01N-ASWITCH PUSH SPDT 0.4VA 28V |
4,680 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
UB16NBKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
2,885 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB15KKG015C-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
4,078 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB25SKG03N-FLOW PROFILE PUSHBUTTON/NON ILLUM |
4,270 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Spot LED | - | -25°C ~ 70°C |
