Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B25AA5W30SWITCH PUSHBUTTON DPDT 1A 125V |
2,304 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
UB25KKG01N-ASWITCH PUSH DPDT 0.4VA 28V |
1,116 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Sealed - Hermetically | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

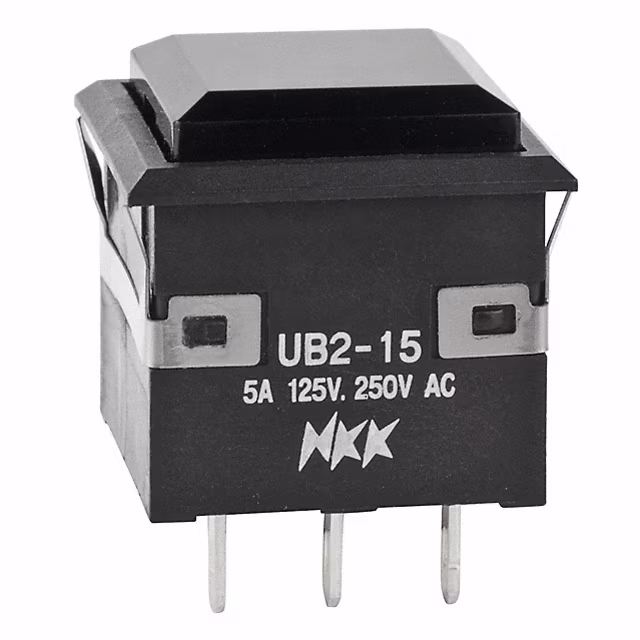

UB215KKW01N-5ASWITCH PUSHBUTTON SPDT 5A 125V |
3,859 | - |
|
Datasheet | UB2 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB16NKG015FSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,946 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
EB2085GSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,153 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
G3B25AB-S-XCSWITCH PUSHBUTTON DPDT 0.4VA 28V |
3,193 | - |
|
Datasheet | G3B | Bulk | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
YB15CKW01/CUL-EBSHORT BODY PUSHBUTTON/ILLUMINATE |
1,900 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB15RGW01-ASWITCH PUSHBUTTON SPDT 3A 125V |
4,929 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
LP0115CCKW01A/CUL-WLLP0115CCKW01A/CUL W/ 12" WIRES, |
2,928 | - |
|
Datasheet | LP01 | Box | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB15SKW01-FSWITCH PUSHBUTTON SPDT 3A 125V |
4,152 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
