Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2061G-B-J21ASWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,187 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
UB15SKW035C-CJSWITCH PUSHBUTTON SPDT 5A 125V |
2,147 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB16SKG035CSWITCH PUSH SPDT 0.4VA 28V |
1,482 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB16KKW015DSWITCH PUSHBUTTON SPDT 5A 125V |
4,716 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15RKG01-FSWITCH PUSH SPDT 0.4VA 28V |
3,608 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|

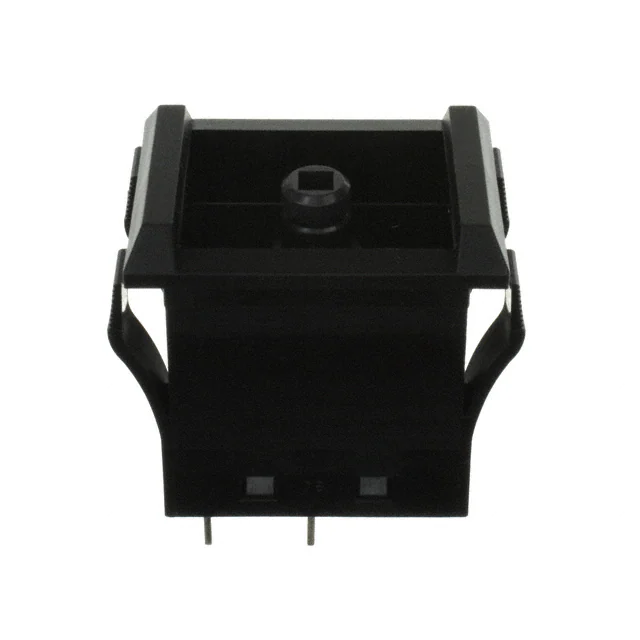

JPM16BSWITCH PUSH SPST 10A 125V |
2,976 | - |
|
Datasheet | JP | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 10A (AC) | 125 V | - | Rectangular, Button | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
|
M2B25AA5G30-HBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,174 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15RKG035CSWITCH PUSH SPDT 0.4VA 28V |
3,119 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB25NKG01NSWITCH PUSH DPDT 0.4VA 28V |
2,739 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

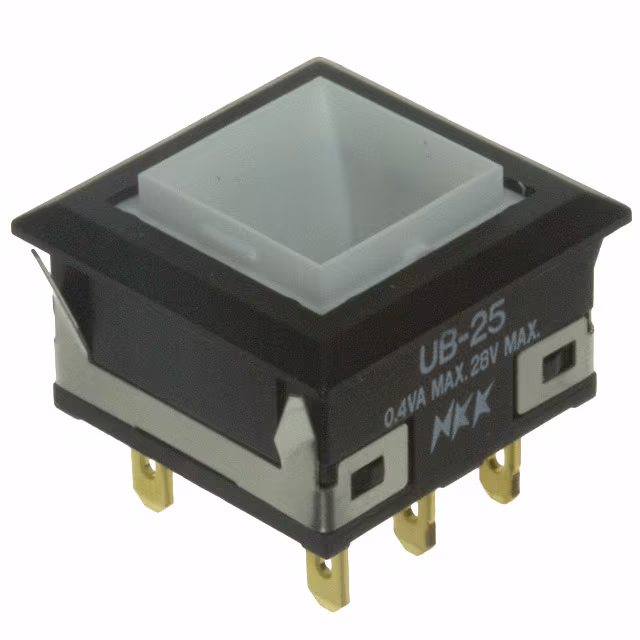

UB25KKG01NSWITCH PUSH DPDT 0.4VA 28V |
2,565 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
