Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15SA2W31-BABRACKET PC MOUNT MINIATURE PUSHB |
3,839 | - |
|
Datasheet | MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SA2W31-BCBRACKET PC MOUNT MINIATURE PUSHB |
1,624 | - |
|
Datasheet | MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

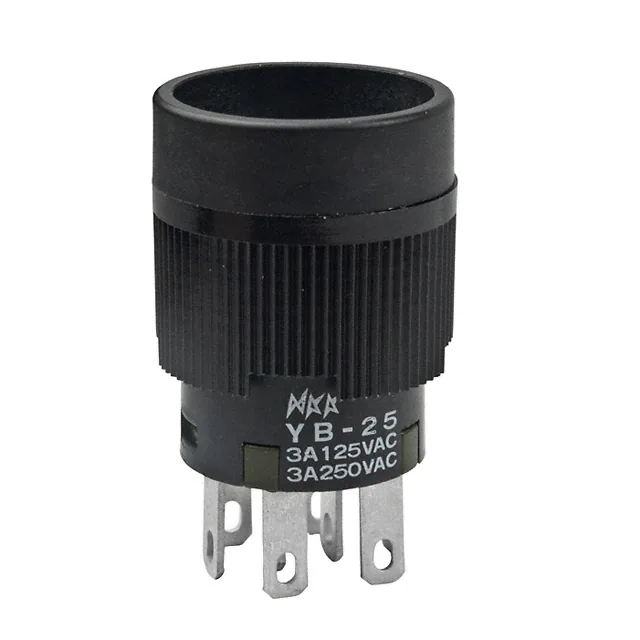

YB25CKW01SWITCH PUSHBUTTON DPDT 3A 125V |
148 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile/Audible Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MBN22SS1W01-CABUSHING MOUNT MINIATURE PUSHBUTT |
2,845 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

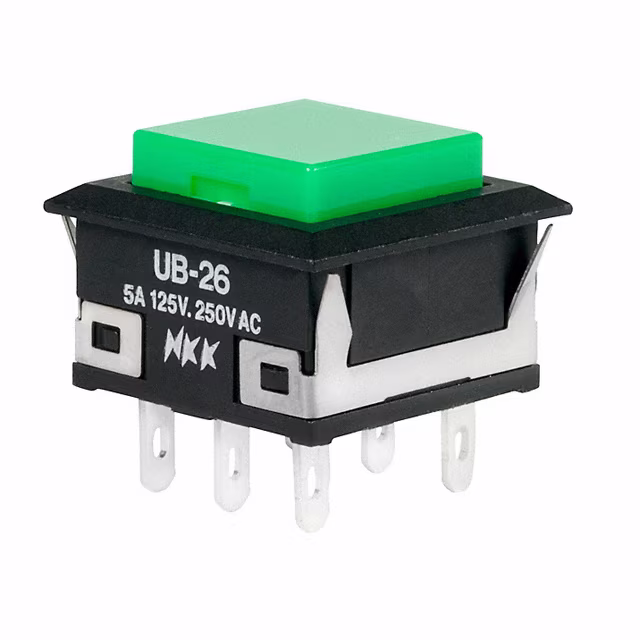

UB26KKW01N-FSWITCH PUSHBUTTON DPDT 5A 125V |
2,984 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
MBN15SB1W01-DALARGE BUSHING MINIATURE PUSHBUTT |
3,312 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

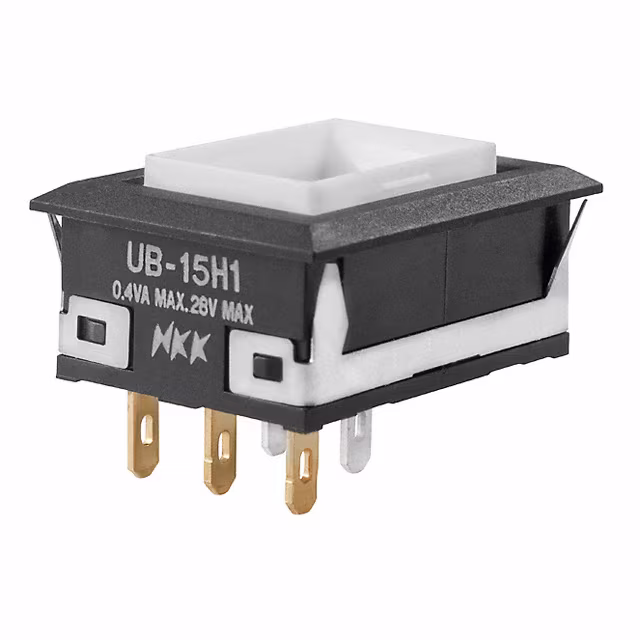

UB15NKG015DSWITCH PUSH SPDT 0.4VA 28V |
4,617 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Plunger and Panel Seal | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
LB15RGG01SWITCH PUSH SPDT 0.4VA 28V |
3,396 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|

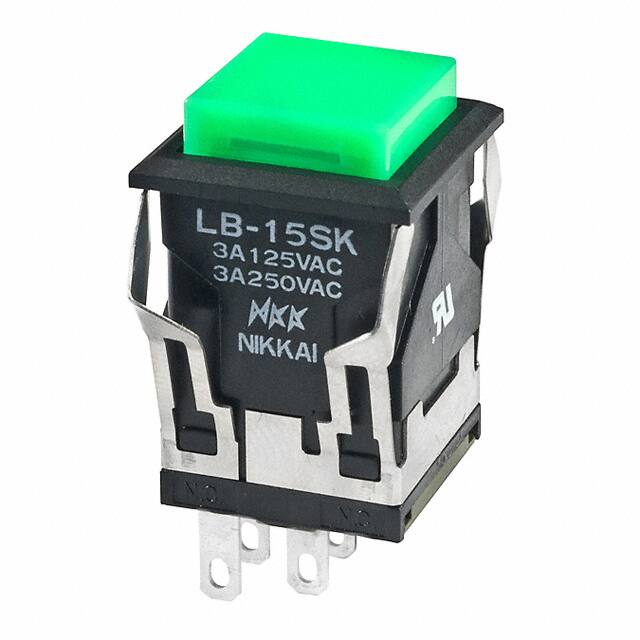

LB15SKW01-FJSWITCH PUSHBUTTON SPDT 3A 125V |
3,630 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
UB25SKG035FSWITCH PUSH DPDT 0.4VA 28V |
1,836 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
