Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26SKW035CSWITCH PUSHBUTTON DPDT 5A 125V |
4,918 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
MBNR25E1W01SNAP-ACTION BUSHING MOUNT PUSHBU |
4,174 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|
|
LB15RGW01-HSWITCH PUSHBUTTON SPDT 3A 125V |
1,611 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
LB15SGW01SWITCH PUSHBUTTON SPDT 3A 125V |
1,206 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

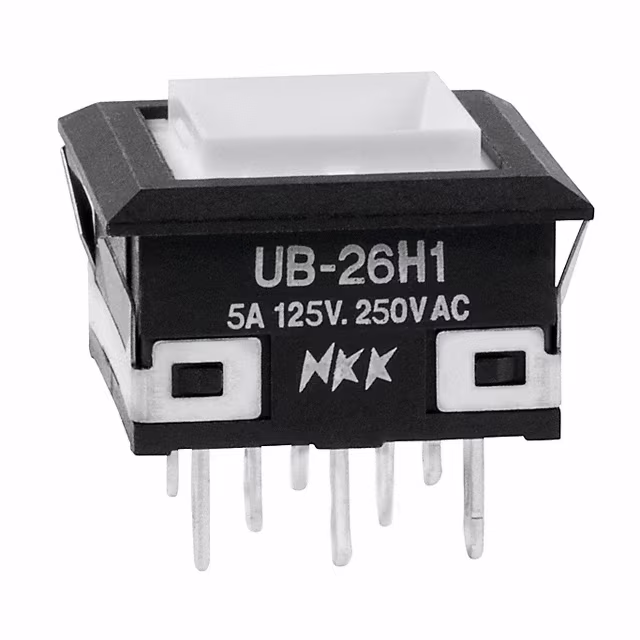

UB26KKW015CSWITCH PUSHBUTTON DPDT 5A 125V |
2,696 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

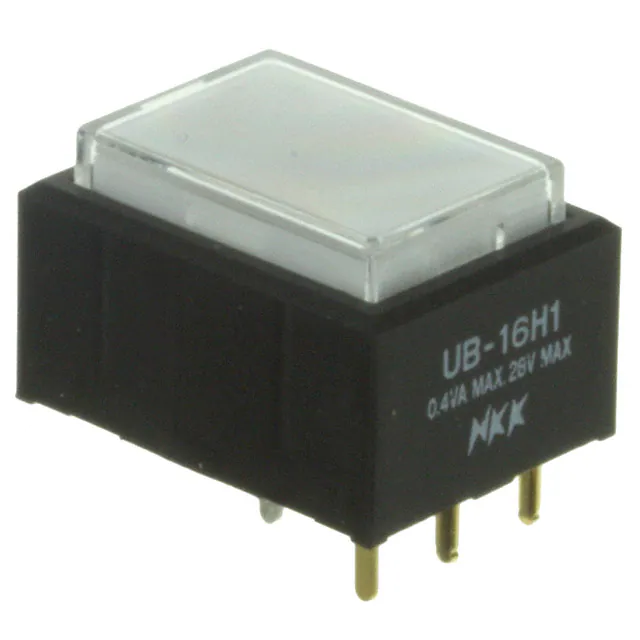

UB16RKG035F-JBSWITCH PUSH SPDT 0.4VA 28V |
2,919 | - |
|
Datasheet | UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

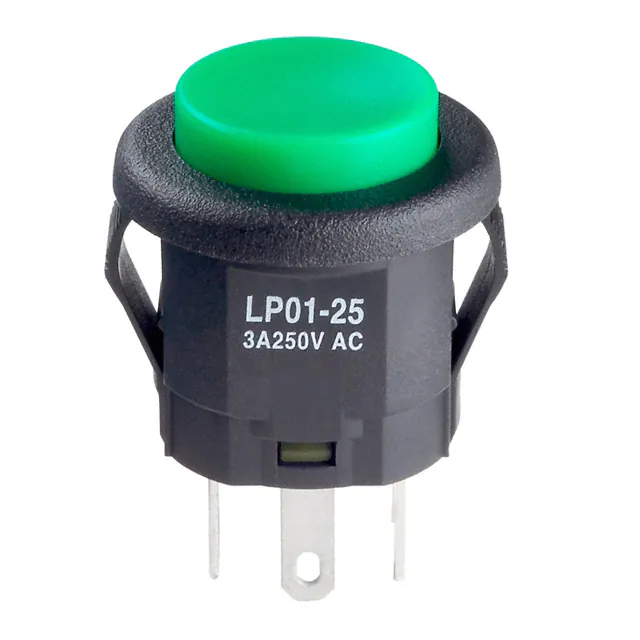

LP0125CMKW01FSWITCH PUSHBUTTON DPDT 3A 125V |
4,446 | - |
|
Datasheet | LP01 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -25°C ~ 70°C |
|

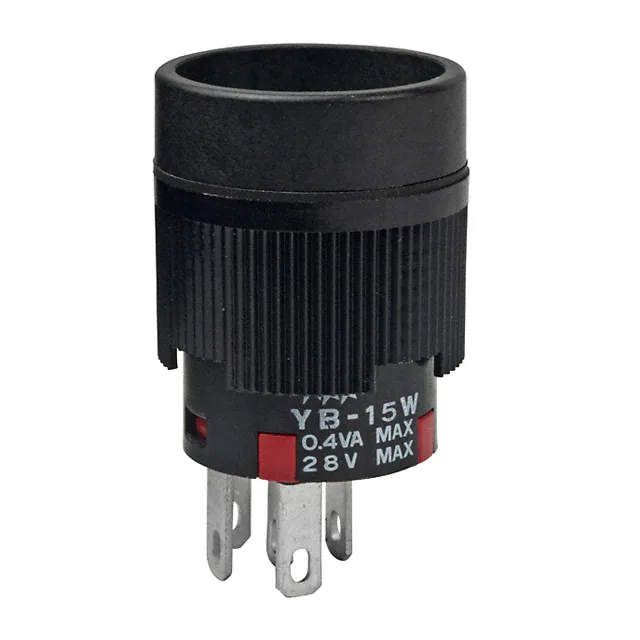

YB15WCKG01SWITCH PUSH SPDT 0.4VA 28V |
4,797 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
UB16NBKW015C-CBSWITCH PUSHBUTTON SPDT 5A 125V |
4,068 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB215SKW035FSWITCH PUSHBUTTON SPDT 5A 125V |
1,061 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
