Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

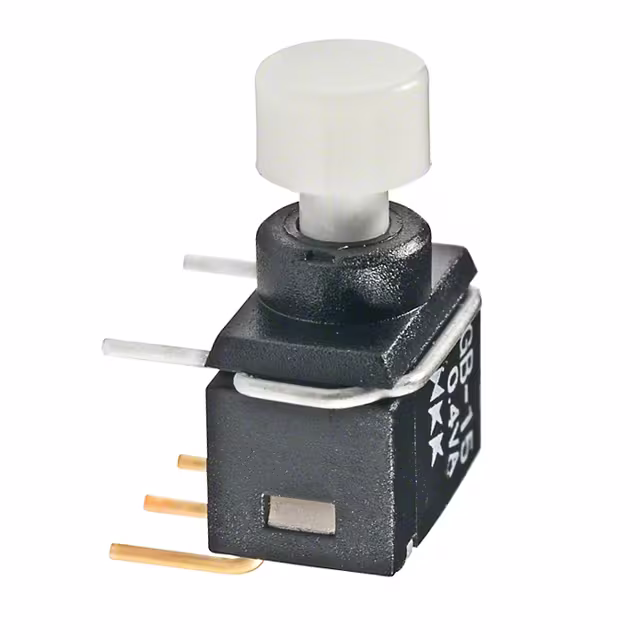

GB15AH-XBSWITCH PUSH SPDT 0.4VA 28V |
122 | - |
|
Datasheet | GB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

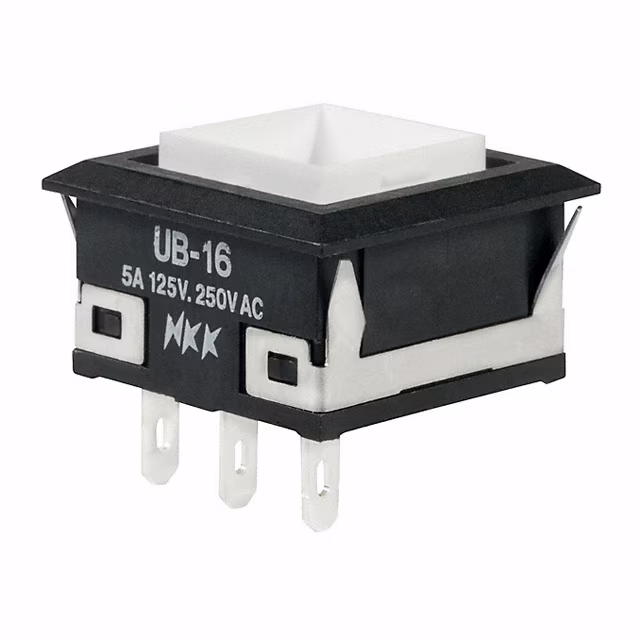

UB16KKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
3,134 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
M2B15BA5G13SWITCH PUSH SPDT 0.4VA 28V |
1,117 | - |
|
Datasheet | M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

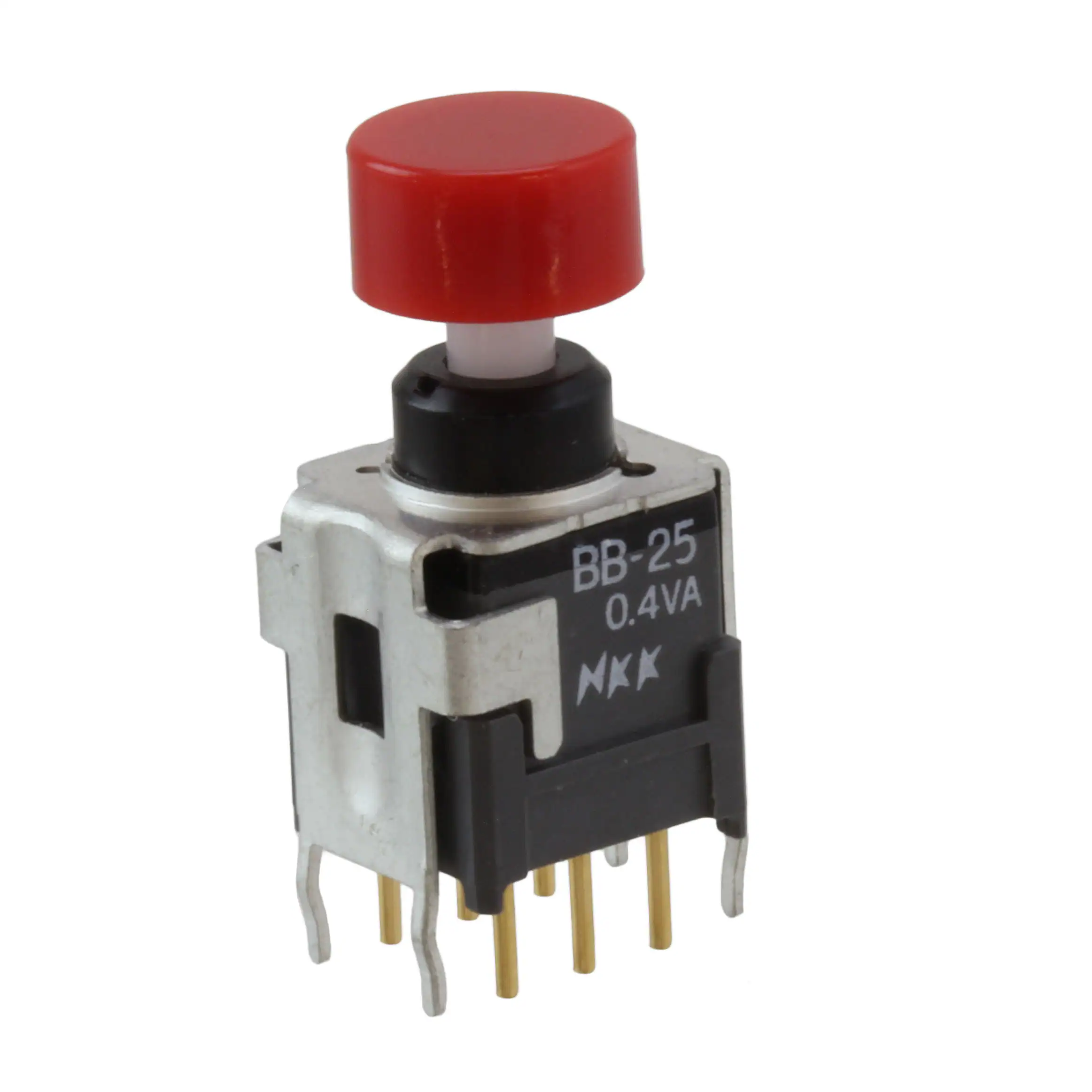

BB25AB-HCSWITCH PUSH DPDT 0.4VA 28V |
120 | - |
|
Datasheet | BB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB25AH-FCSWITCH PUSH DPDT 0.4VA 28V |
122 | - |
|
Datasheet | BB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
GB25AVSWITCH PUSH DPDT 0.4VA 28V |
102 | - |
|
Datasheet | GB | Box | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

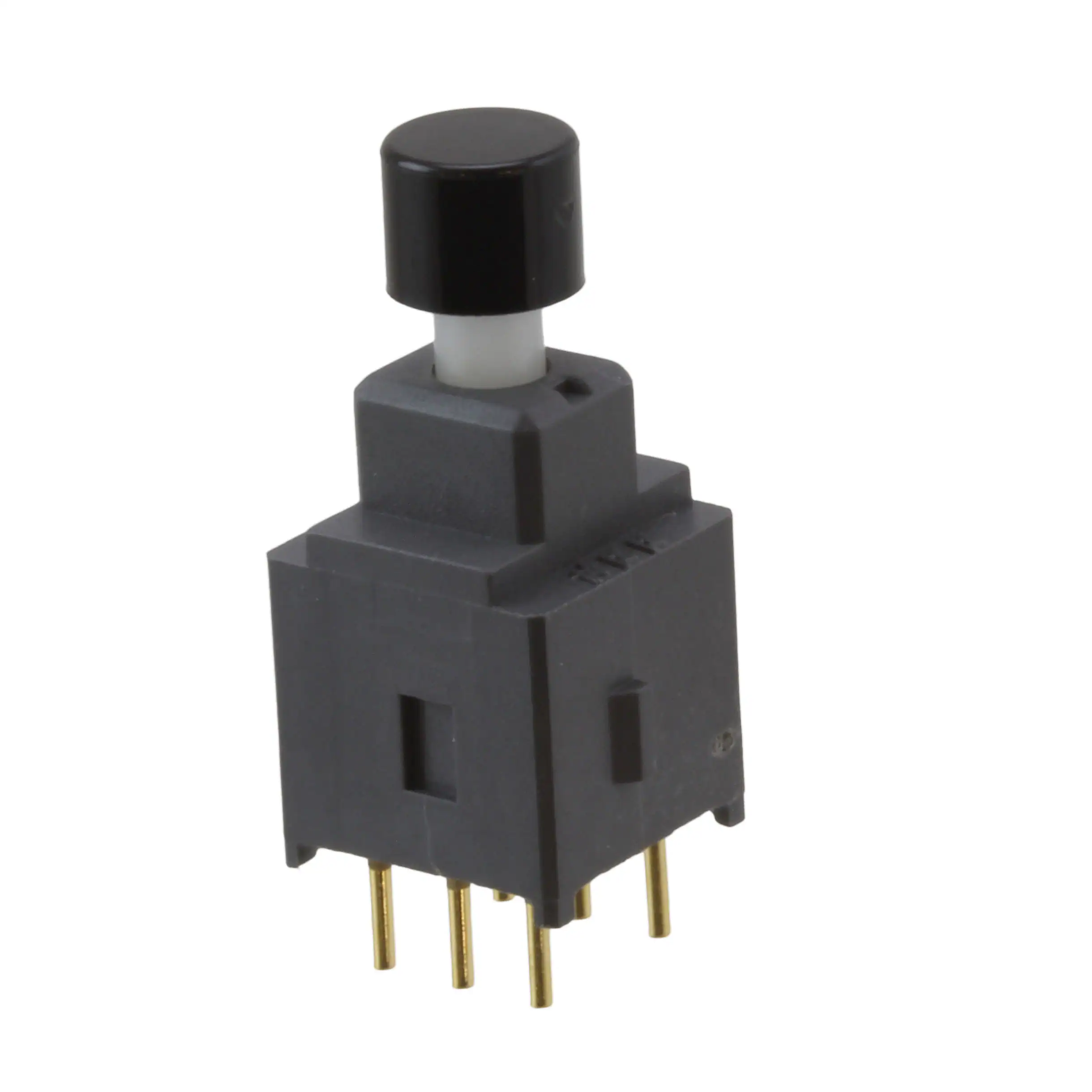

AB25AP-FASWITCH PUSH DPDT 0.4VA 28V |
170 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
G3B15AP-XASWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,489 | - |
|
Datasheet | G3B | Bulk | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

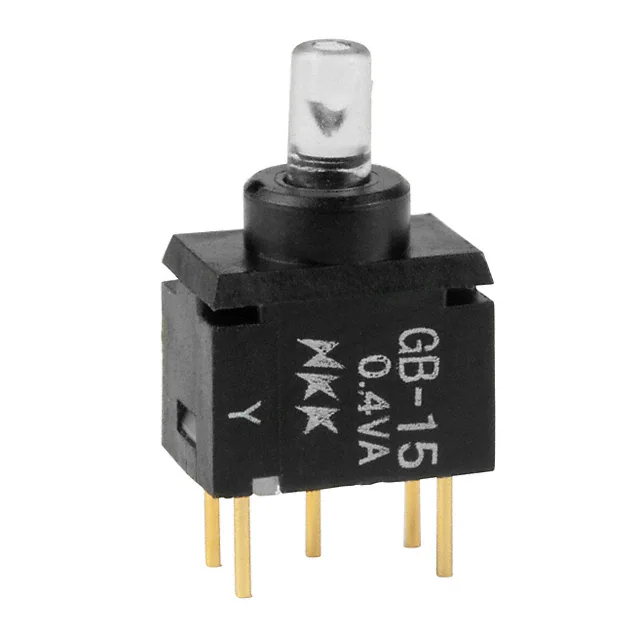

GB15JPDSWITCH PUSH SPDT 0.4VA 28V |
480 | - |
|
Datasheet | GB | Box | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Amber | 2 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|

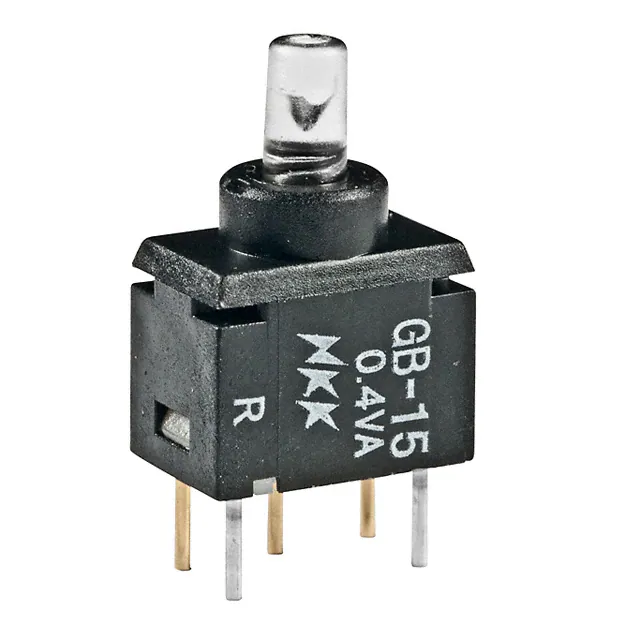

GB15JPCSWITCH PUSH SPDT 0.4VA 28V |
101 | - |
|
Datasheet | GB | Box | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Red | 1.95 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
