Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15SB1W03LARGE BUSHING MINIATURE PUSHBUTT |
650 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

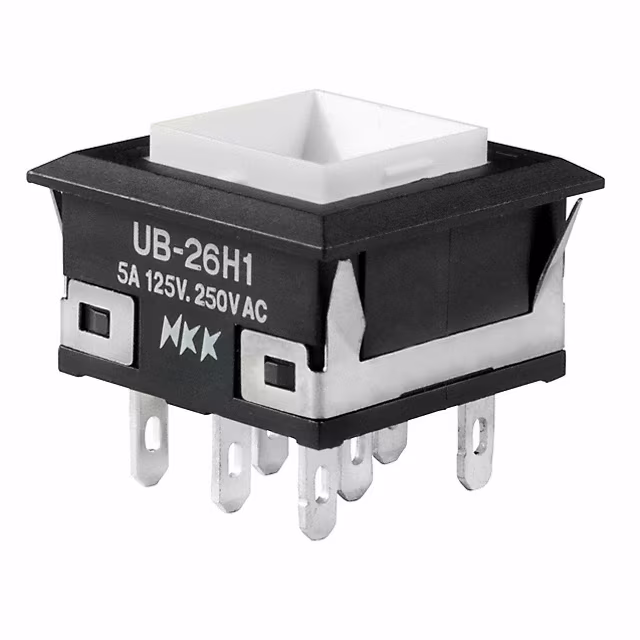

UB26KKW015FSWITCH PUSHBUTTON DPDT 5A 125V |
3,902 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MBNR15A2G30-HASNAP-ACTION BRACKET PC MOUNT PUS |
143 | - |
|
Datasheet | MB2400 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

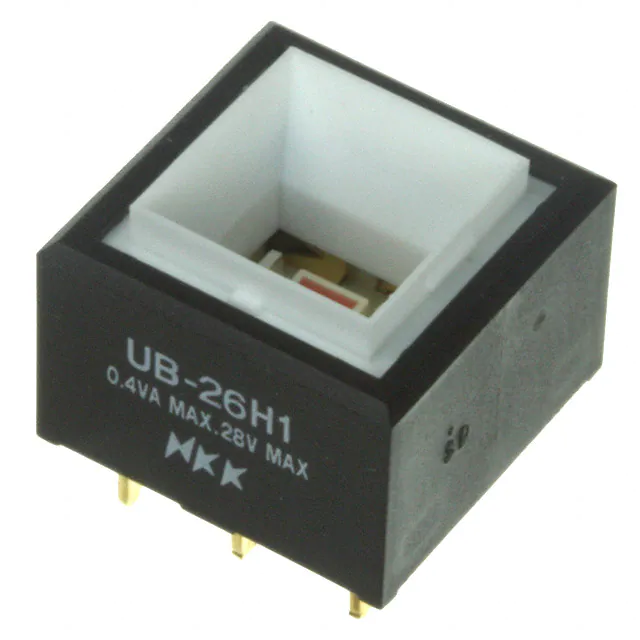

UB26SKG035CSWITCH PUSH DPDT 0.4VA 28V |
3,043 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
MBN25SS1W01-BCBUSHING MOUNT MINIATURE PUSHBUTT |
301 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2061SS1W03/CUL-N987-BCBUSHING MOUNT MINIATURE PUSHBUTT |
307 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
LB15SGW01-HSWITCH PUSHBUTTON SPDT 3A 125V |
160 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

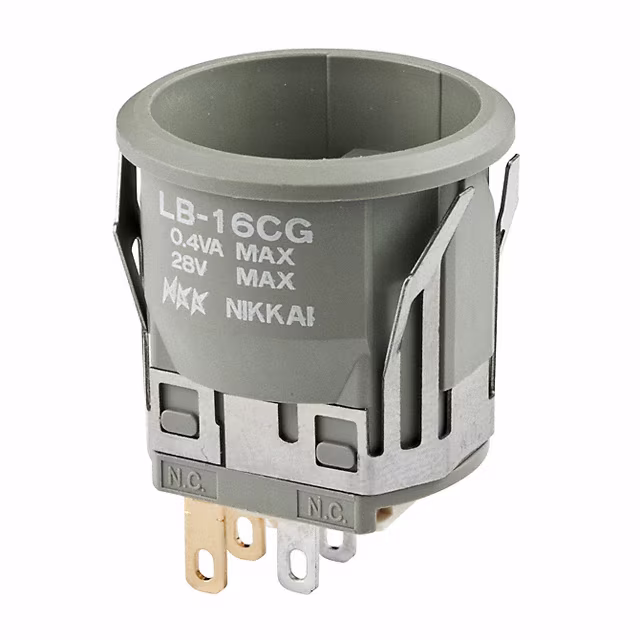

LB16CGG01SWITCH PUSH SPDT 0.4VA 28V |
4,917 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBN12SS2W30-CABRACKET PC MOUNT MINIATURE PUSHB |
183 | - |
|
Datasheet | MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
YB15MKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
402 | - |
|
Datasheet | YB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
