Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B15AA5G03-FASWITCH PUSH SPDT 0.4VA 28V |
173 | - |
|
Datasheet | M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

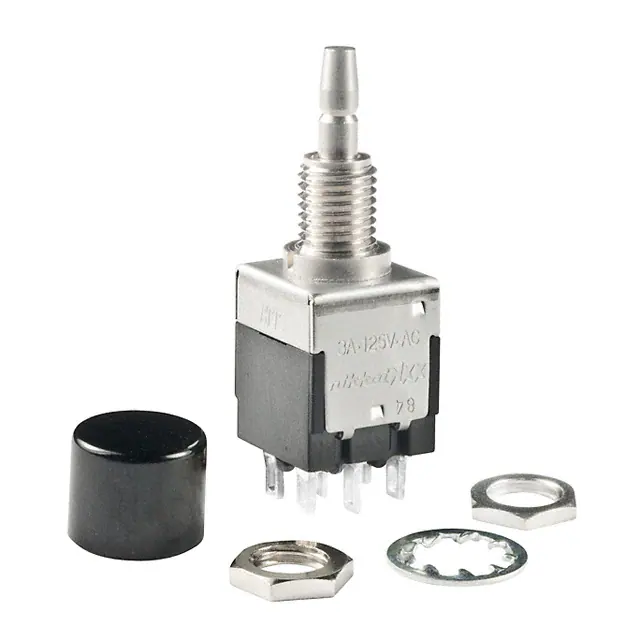

EB2061-CASWITCH PUSHBUTTON DPDT 3A 125V |
108 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2011SWITCH PUSHBUTTON SPDT 3A 125V |
122 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

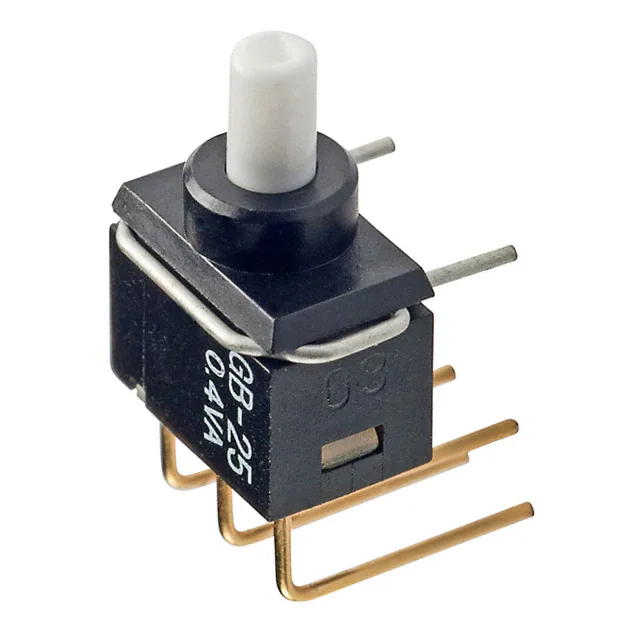

GB25AHSWITCH PUSH DPDT 0.4VA 28V |
56 |
1+：$11.29600 10+：$9.74960 25+：$9.19296 50+：$8.79232 100+：$8.40856 250+：$7.92579 500+：$7.57832 1000+：$7.24544 |
|
Datasheet | GB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
EB2085P-BBSWITCH PUSHBUTTON DPDT 3A 125V |
194 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
UB15SKG035D-DDSWITCH PUSH SPDT 0.4VA 28V |
403 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
G3B15AP-S-YASWITCH PUSH SPDT 0.4VA 28V |
323 | - |
|
Datasheet | G3B | Tube | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
GB25AV-XCSWITCH PUSH DPDT 0.4VA 28V |
1,391 | - |
|
Datasheet | GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
G3B15AH-R-YASWITCH PUSH SPDT 0.4VA 28V |
803 | - |
|
Datasheet | G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

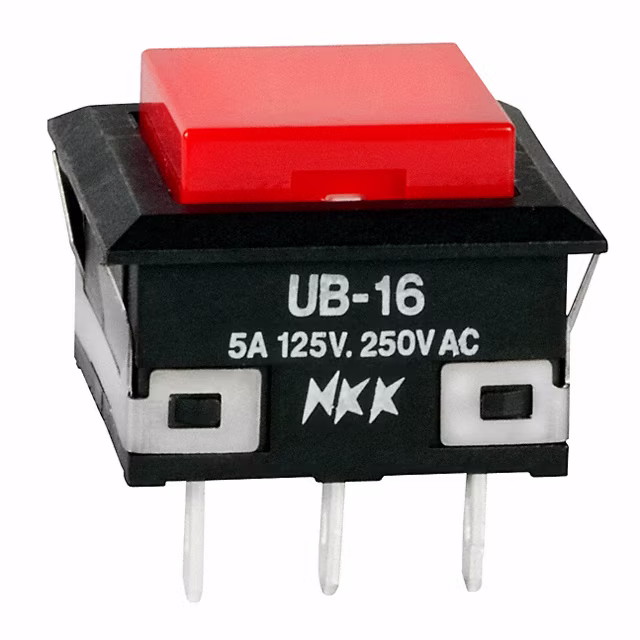

UB16KKW01N-CSWITCH PUSHBUTTON SPDT 5A 125V |
426 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
