Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB16CKW01-CCSWITCH PUSHBUTTON SPDT 1A 125V |
1,893 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB16SKW01-FFSWITCH PUSHBUTTON SPDT 1A 125V |
2,350 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

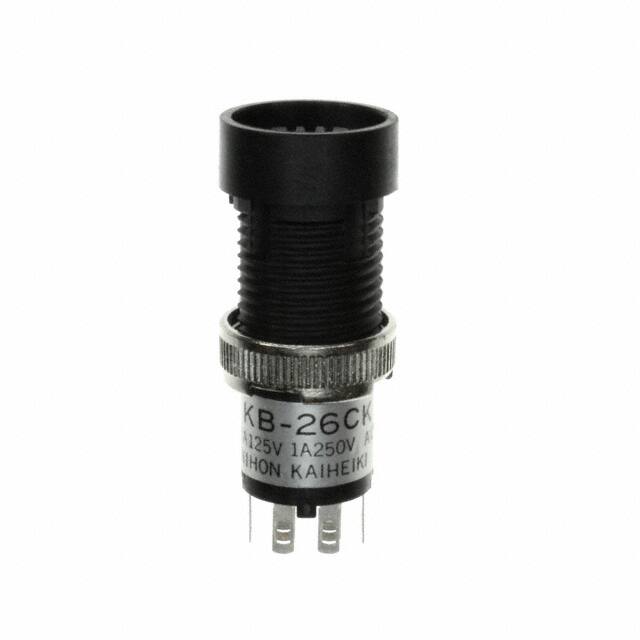

KB26CKW01SWITCH PUSHBUTTON DPDT 1A 125V |
1,074 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

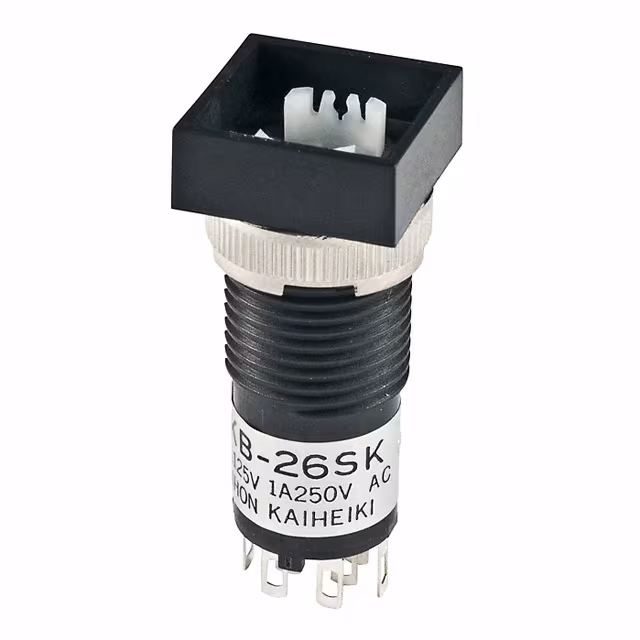

KB26SKW01SWITCH PUSHBUTTON DPDT 1A 125V |
1,320 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB16SKG01-BBSWITCH PUSH SPDT 0.4VA 28V |
2,379 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB16CKG01-CCSWITCH PUSH SPDT 0.4VA 28V |
2,936 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB16CKW01SWITCH PUSHBUTTON SPDT 1A 125V |
2,541 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

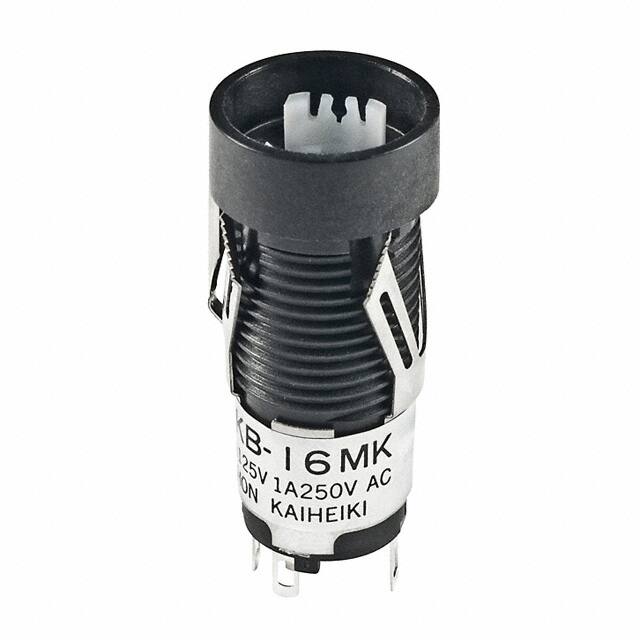

KB16MKW01SWITCH PUSHBUTTON SPDT 1A 125V |
2,899 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15SKW01-EBSWITCH PUSHBUTTON SPDT 1A 125V |
1,871 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

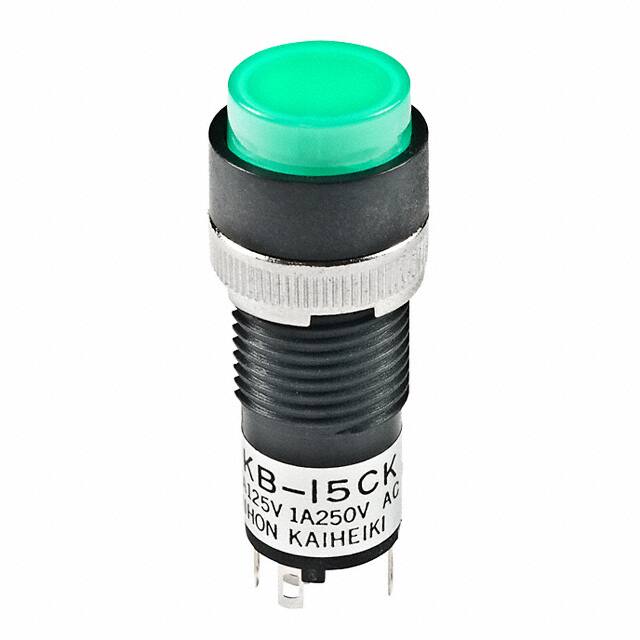

KB15CKW01-FFSWITCH PUSHBUTTON SPDT 1A 125V |
3,660 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
