Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A24KB-CBSWITCH ROCKER SP3T 0.4VA 28V |
3,649 | - |
|
Datasheet | A | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
A28K1H-DASWITCH ROCKER DPDT 0.4VA 28V |
1,238 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A28K1H-EASWITCH ROCKER DPDT 0.4VA 28V |
2,245 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

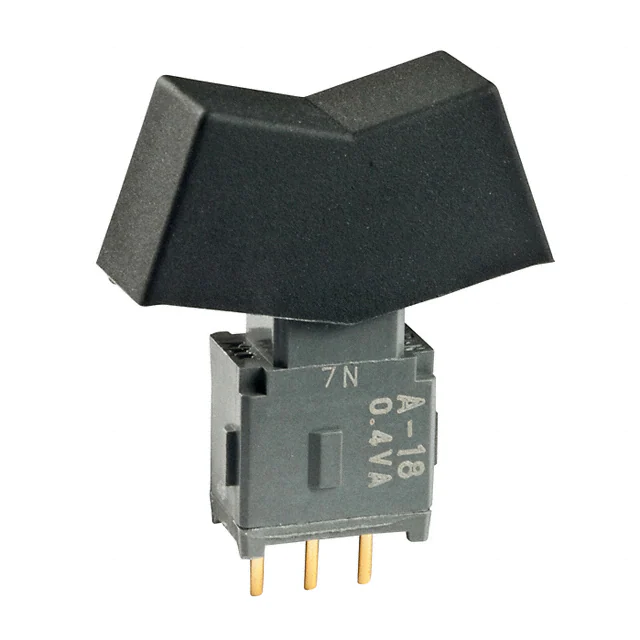

A18KP-CASWITCH ROCKER SPDT 0.4VA 28V |
3,596 | - |
|
Datasheet | A | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18KP-CCSWITCH ROCKER SPDT 0.4VA 28V |
2,499 | - |
|
Datasheet | A | Box | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18KP-CGSWITCH ROCKER SPDT 0.4VA 28V |
4,710 | - |
|
Datasheet | A | Box | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18KP-CESWITCH ROCKER SPDT 0.4VA 28V |
3,053 | - |
|
Datasheet | A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
G25KPSWITCH ROCKER DPDT 0.4VA 28V |
4,135 | - |
|
Datasheet | G | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
MN12TXW30SWITCH ROCKER MINI PC MOUNT |
3,078 | - |
|
Datasheet | M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MLW3018-00-LC-1ASWITCH ROCKER SPDT 5A 125V |
3,547 | - |
|
Datasheet | MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
