Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A18KV1SWITCH ROCKER SPDT 0.4VA 28V |
4,944 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A24K1HSWITCH ROCKER SP3T 0.4VA 28V |
4,029 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
A13K1B-DASWITCH ROCKER SPDT 0.4VA 28V |
3,581 | - |
|
Datasheet | A | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A13K1B1-EASWITCH ROCKER SPDT 0.4VA 28V |
2,975 | - |
|
Datasheet | A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A1RKHSWITCH ROCKER SPDT 0.4VA 28V |
3,130 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T18TXW30-DCSWITCH ROCKER SPDT 6A 125V |
1,376 | - |
|
Datasheet | M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A28K1B-EASWITCH ROCKER DPDT 0.4VA 28V |
3,351 | - |
|
Datasheet | A | Tray | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

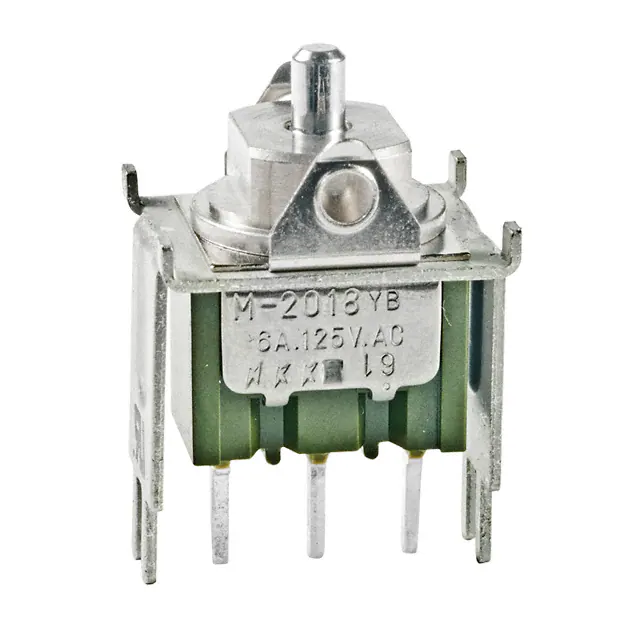

M2018TZW13/USWITCH ROCKER SPDT 6A 125V |
1,144 | - |
|
Datasheet | M | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
A15KH-CBSWITCH ROCKER SPDT 0.4VA 28V |
1,417 | - |
|
Datasheet | A | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A15KH-CESWITCH ROCKER SPDT 0.4VA 28V |
3,254 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
